Upper Intake Manifold

Upper Intake Manifold
1. Disconnect the battery ground cable.
2. Drain the cooling system.
3. Remove the air cleaner outlet pipe.
4. Remove the exhaust gas recirculation (EGR) system module.

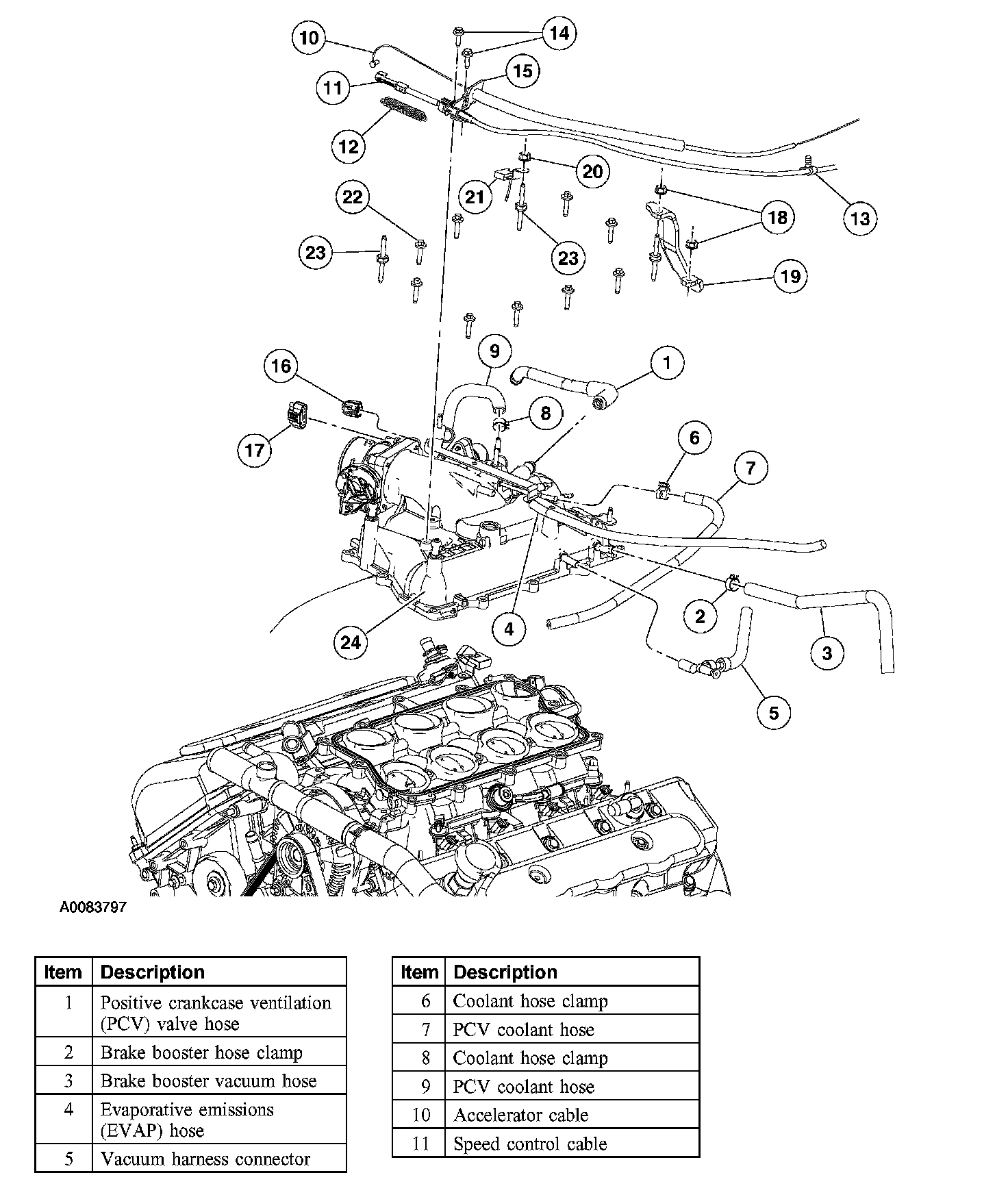

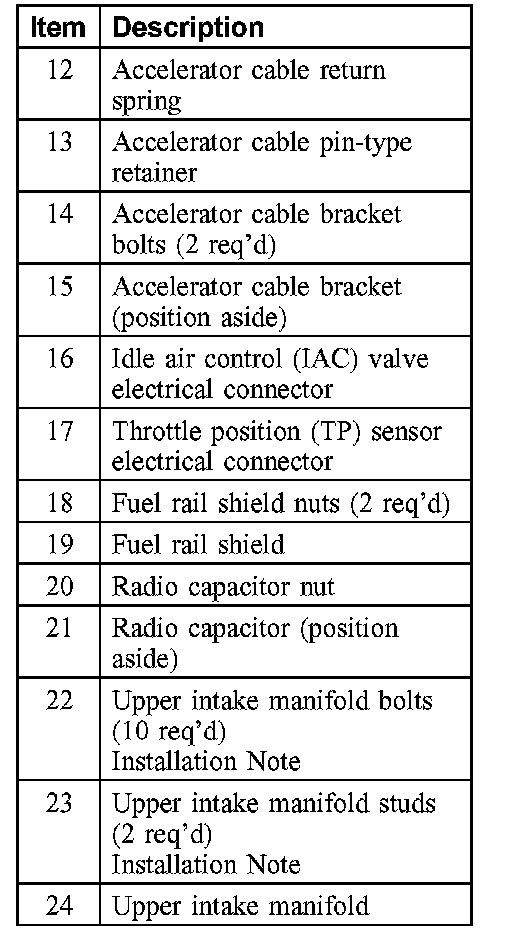

5. Remove the parts in the order indicated in the illustration and table.
6. To install, reverse the removal procedure.

Items 22 and 23: Upper Intake Manifold Fasteners Installation Note

1. NOTE: Locations 5 and 9 use studs.





Tighten the bolts and studs in the sequence shown to 10 Nm (89 inch lbs.).
