Lower Intake Manifold
Lower Intake Manifold1. Remove the upper intake manifold.
2. Disconnect the spring lock couplings.
3. Remove the cooling fan.

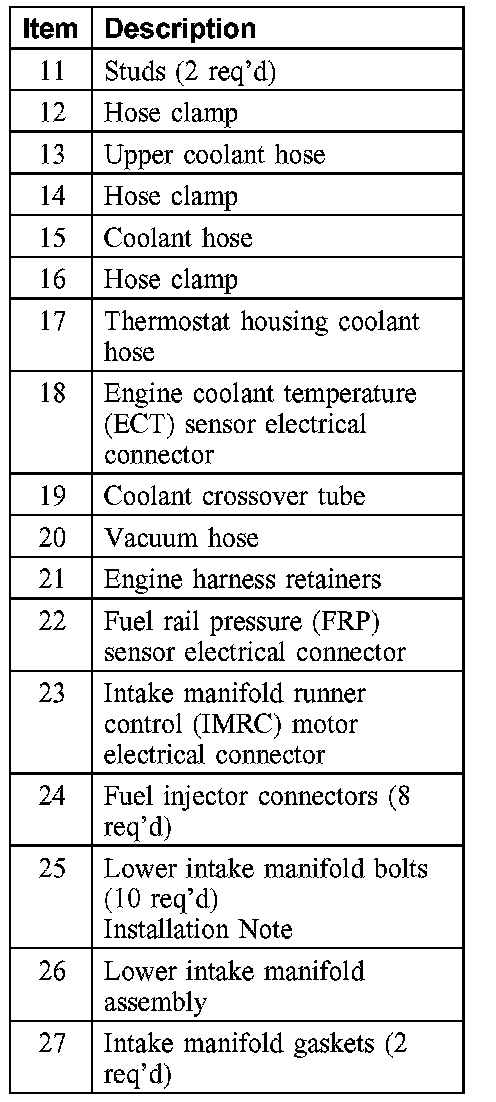

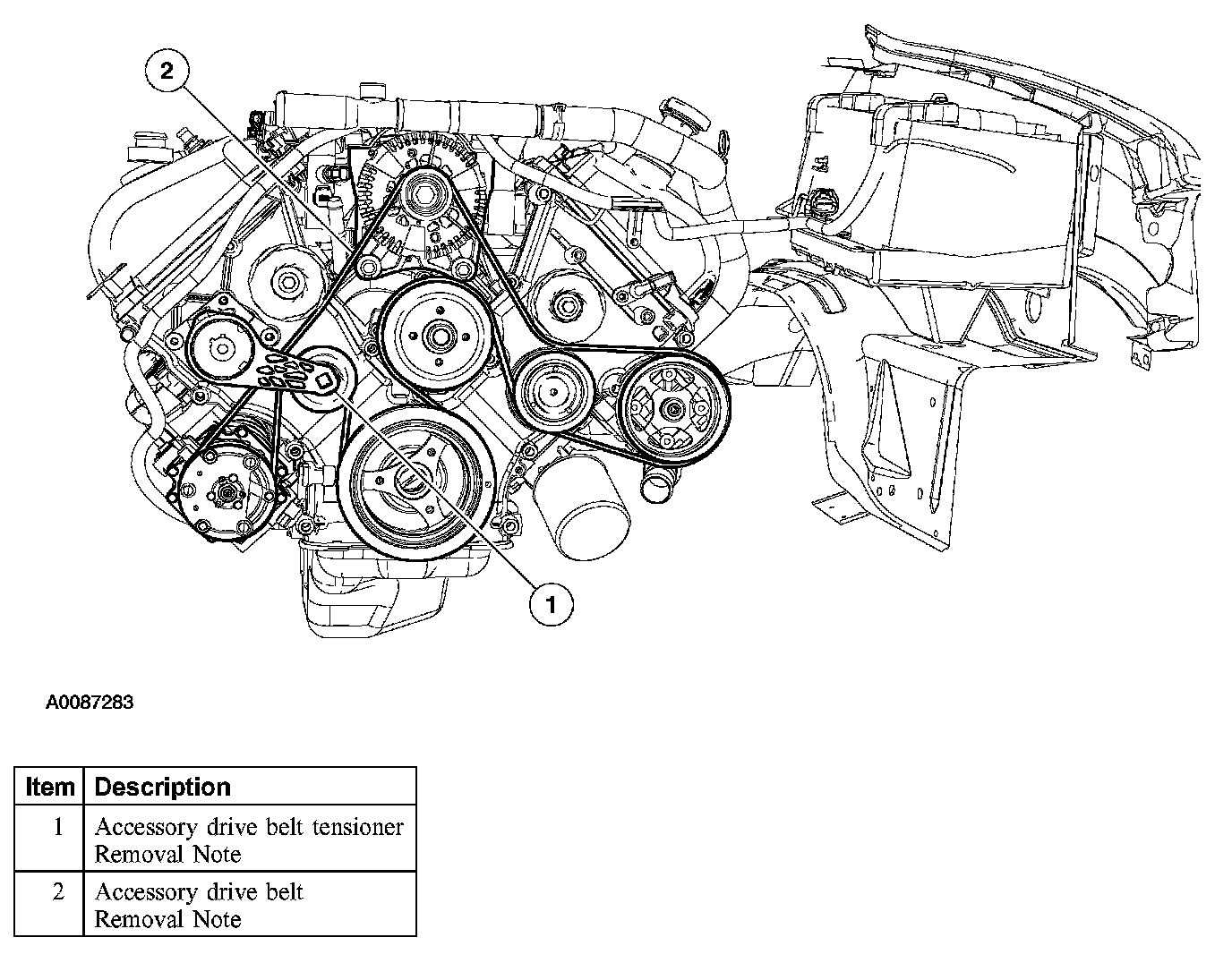

4. Illustration 1 of 2. Remove the parts in the order indicated in the illustration and table.

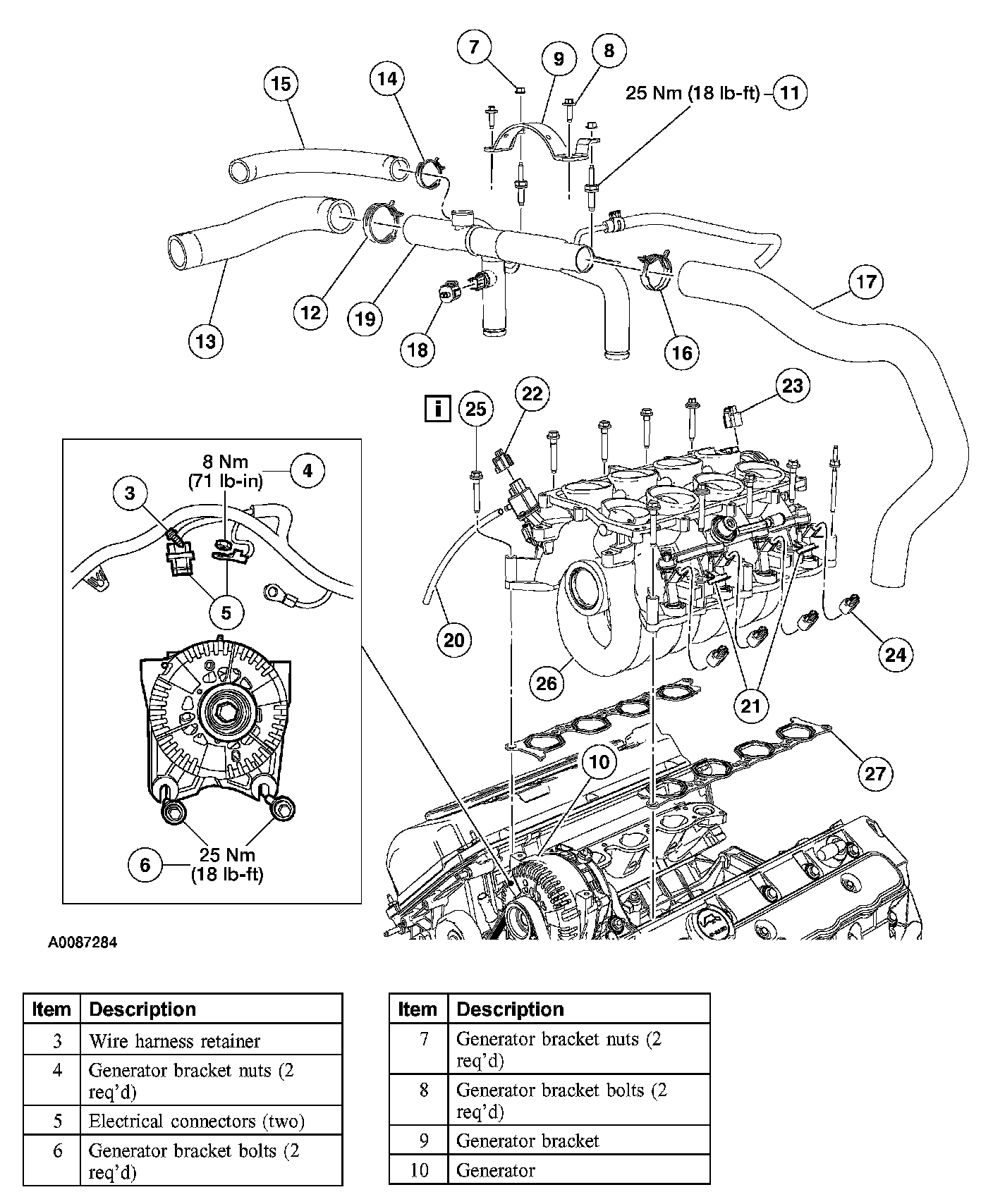

5. Illustration 2 of 2. Remove the components in the order indicated in the illustration and table.
6. To install, reverse the removal procedure.
Item 1: Accessory Drive Belt Tensioner Removal Note
1. Rotate counterclockwise to release the tension on the accessory drive belt.
Item 2: Accessory Drive Belt Removal Note
1. Position the accessory drive belt aside.
Item 25: Lower Intake Manifold Bolts Installation Note
1. Hand-start all fasteners.
2. Tighten all fasteners in the sequence shown in the illustration to 10 Nm (89 inch lbs.).
