Lincoln Truck
>>
2004
>>
Aviator 2WD V8-4.6L DOHC VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
>>

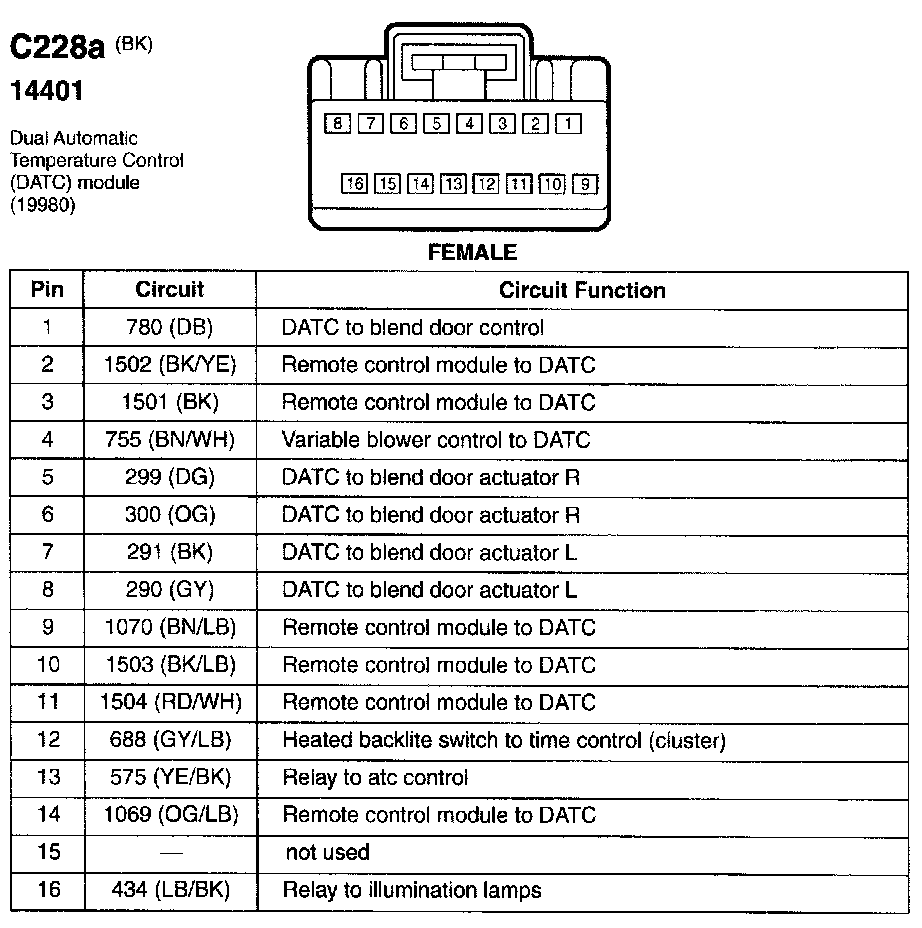

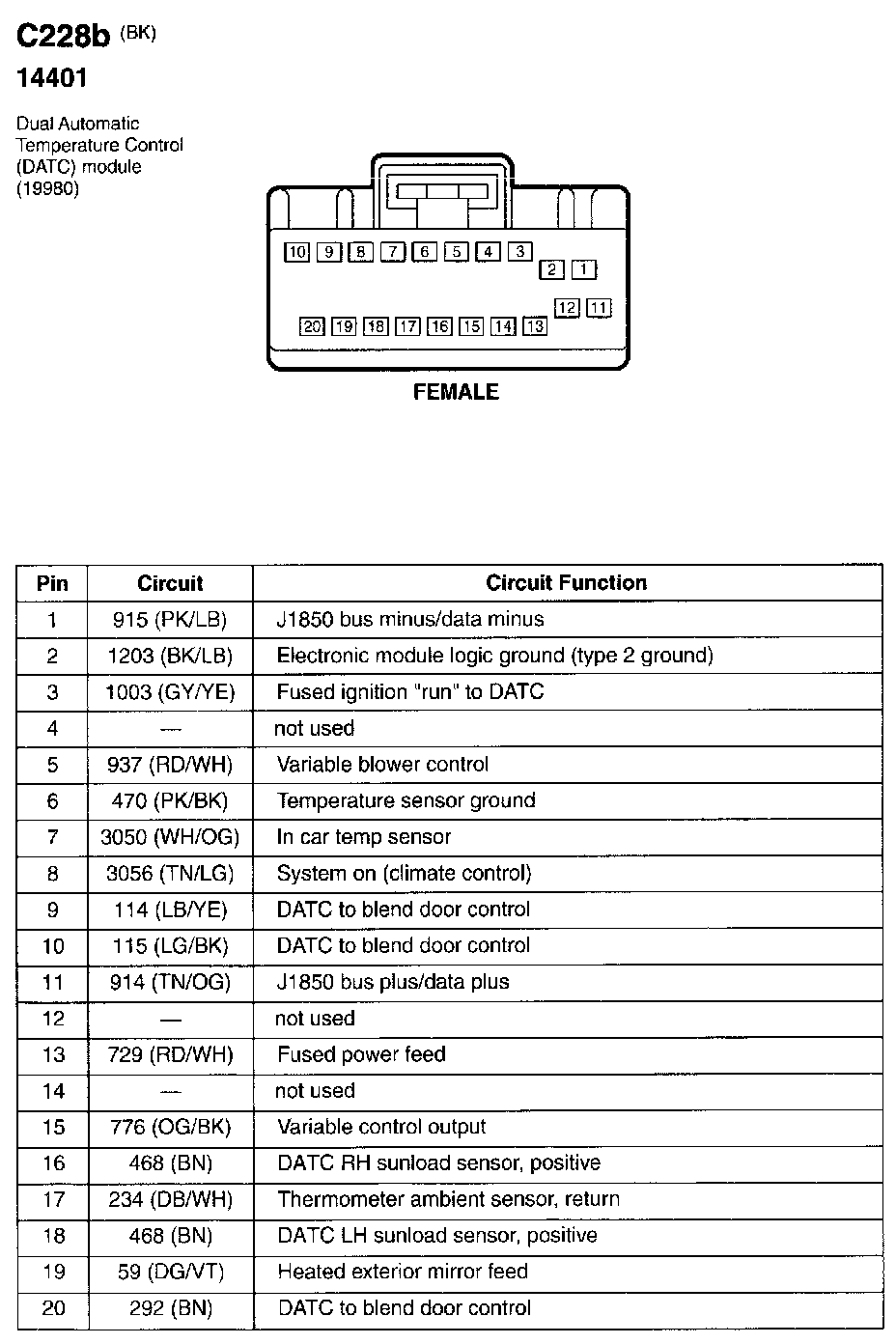

Dual Automatic Temperature Control (DATC) Module
Dual Automatic Temperature Control (DATC) Module
