Connector Circuit Reference

Connector Reference and Terminal Readings

Part 1 Of 2:




Part 2 Of 2:

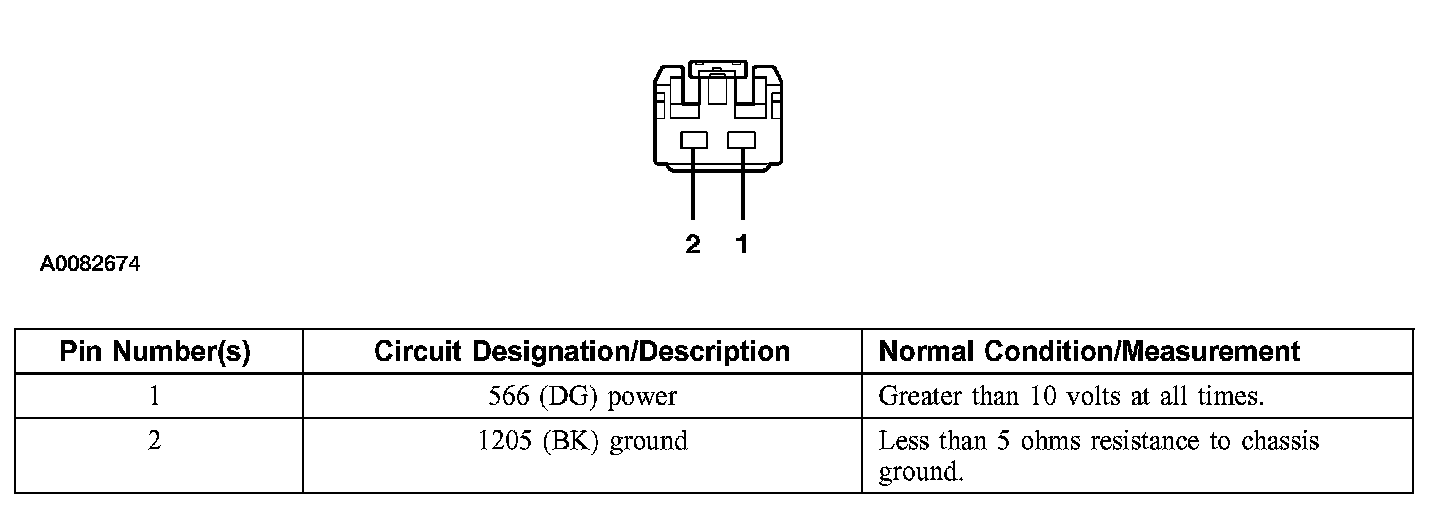

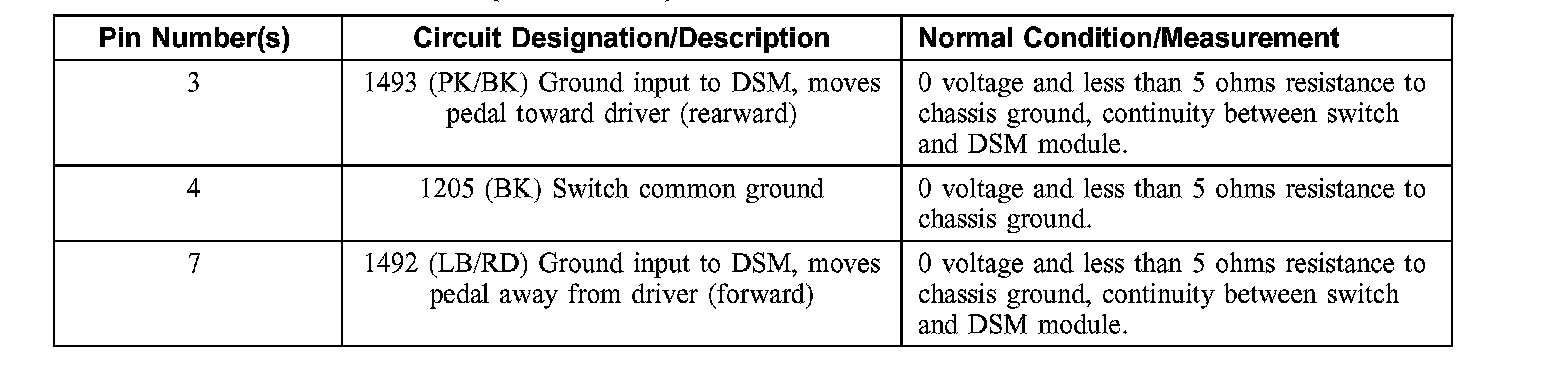

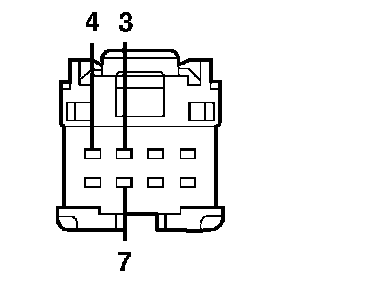

Adjustable Brake Pedal Switch C2235

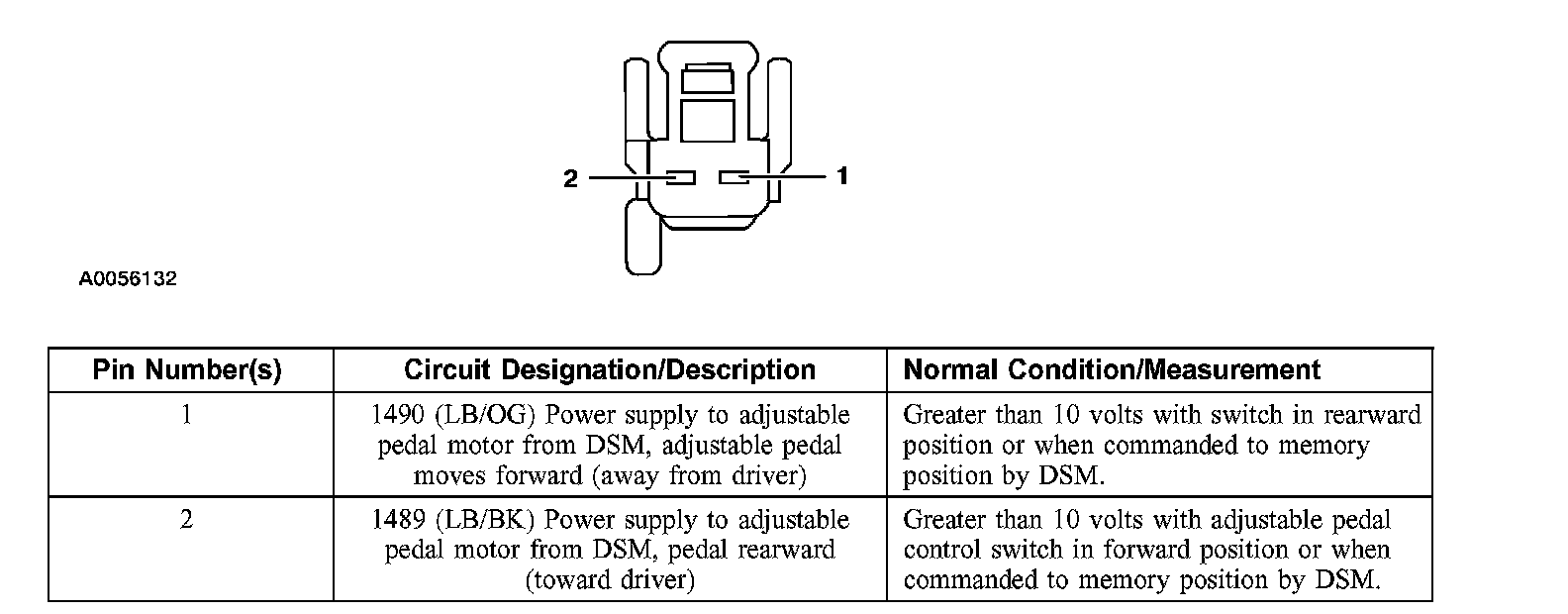

Adjustable Brake Pedal Motor C2003

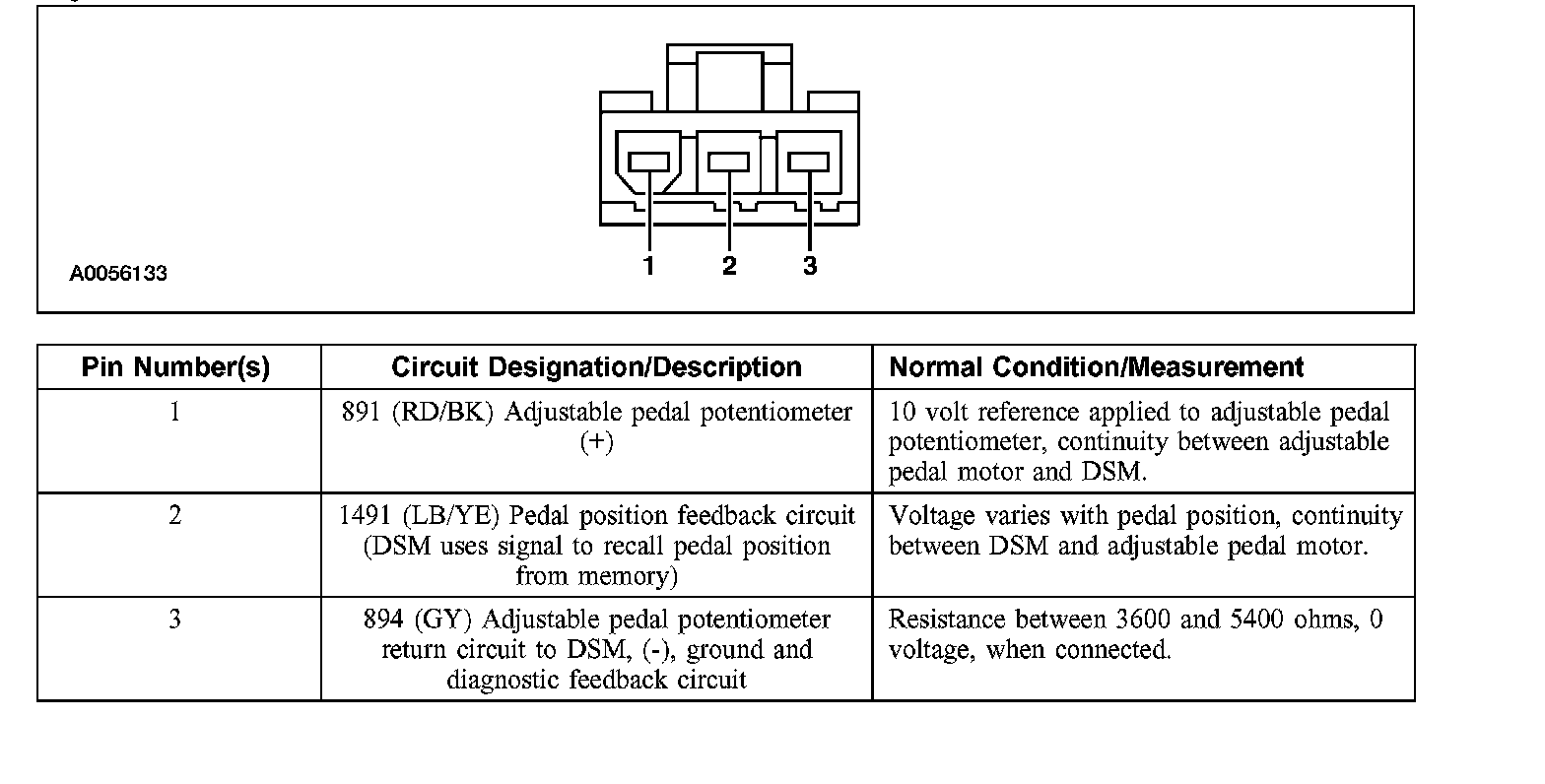

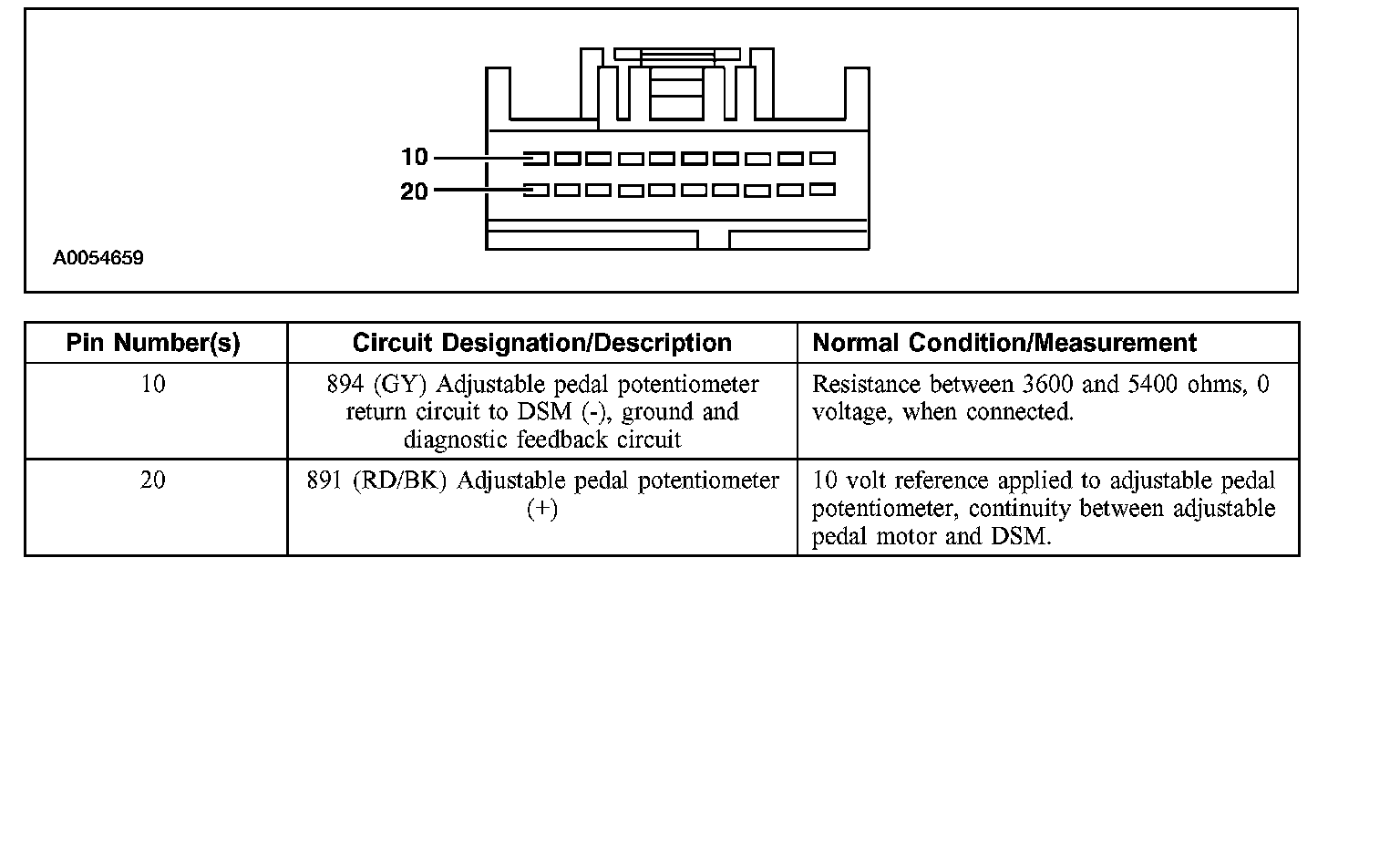

Adjustable Pedal Potentiometer C2090





Driver Seat Module C341g

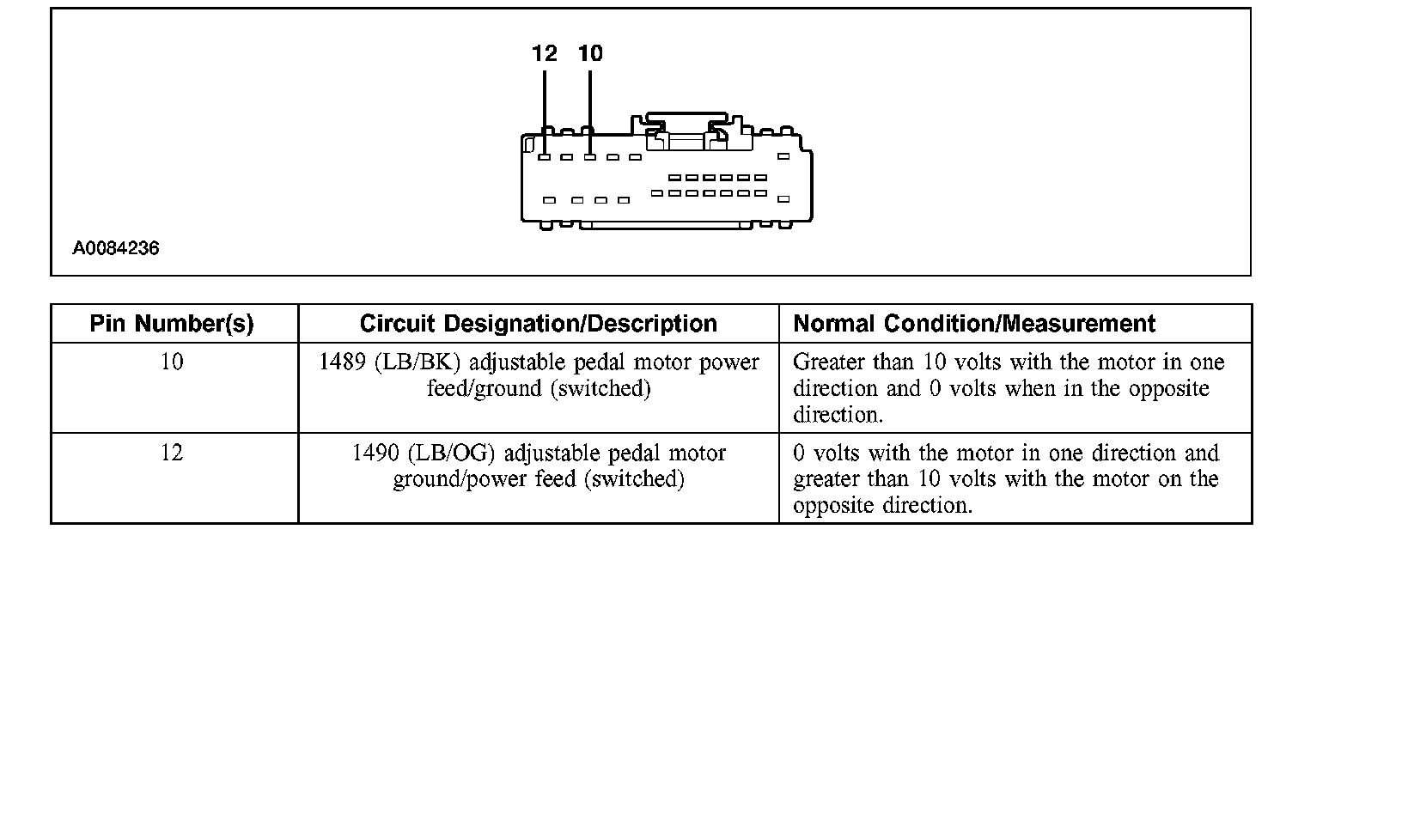

Driver Seat Module C341d





Driver Seat Module C341e





Driver Seat Module C341f
