Rear

REMOVAL AND INSTALLATION

Rear Disc Brake

1. Remove the wheel and tire assembly.

Rear:

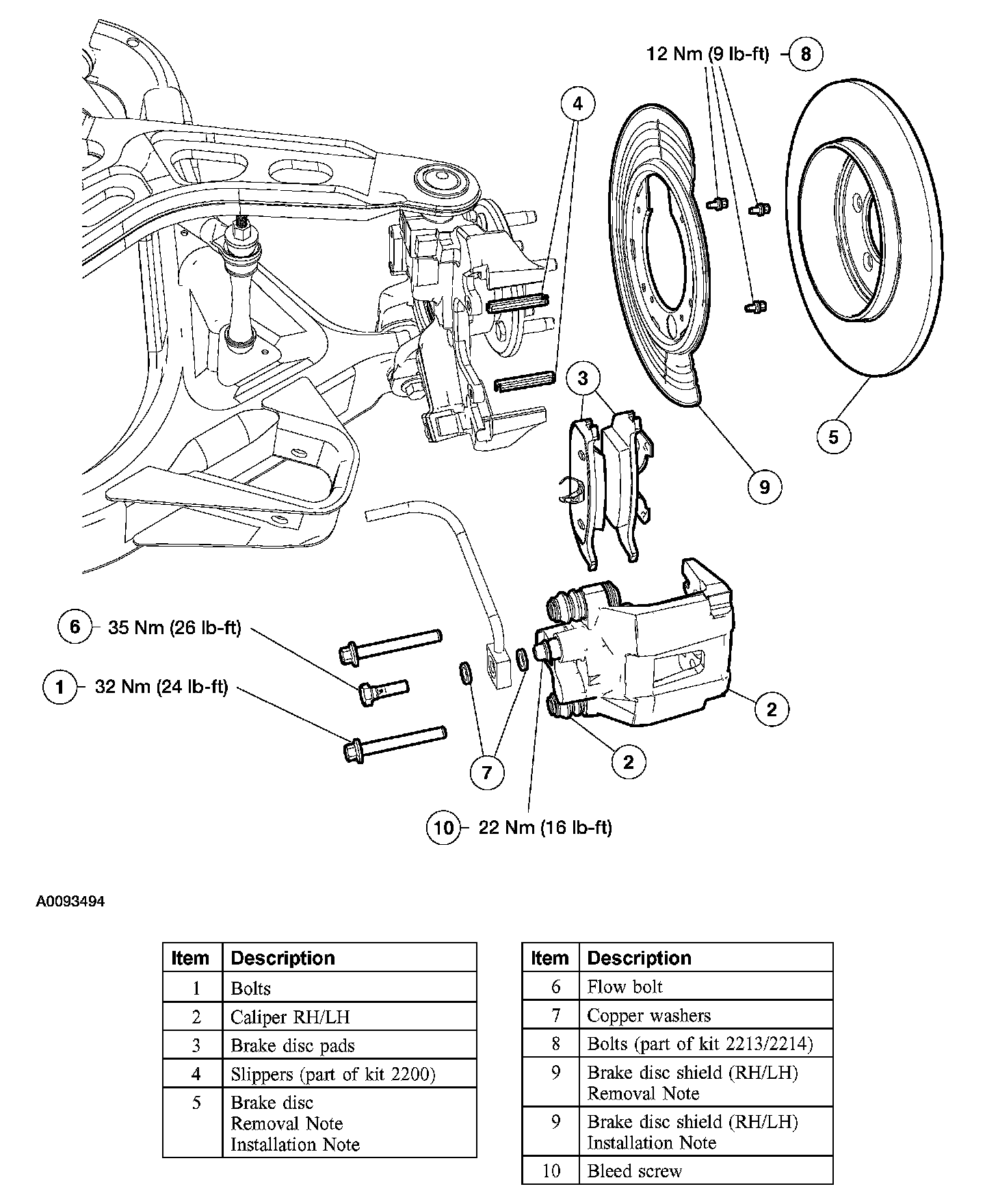

2. Remove the parts in the order indicated in the illustration and table.
3. To install, reverse the removal procedure.
4. Bleed the brake system.

Item 5: Brake Disc Removal Note
1. If the brake disc binds on the parking brake shoe and lining, remove the adjustment hole knockout panel or access plug and contract the parking brake shoe and lining.

Item 9: Brake Disc Shield Removal Note

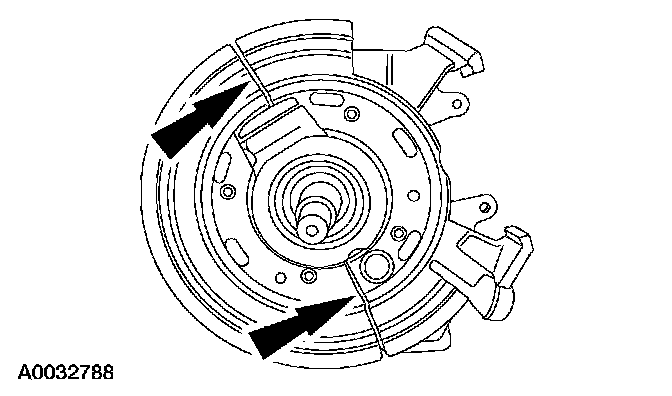

1. Cut the brake disc shield at the perforations.

Item 9: Brake Disc Shield Installation Note





1. Cut the brake disc shield at the perforations.

Item 5: Brake Disc Installation Note

1. NOTE: If the adjustment hole knockout panel or access plug was removed, it is necessary to install an access plug to prevent the entry of contaminants.

Install the parking brake shoe adjustment hole access plug, if necessary.
