Sensor, Rear
Rear Wheel Speed SensorRemoval And Installation
1. Disconnect the battery.
2. Raise and support the vehicle.

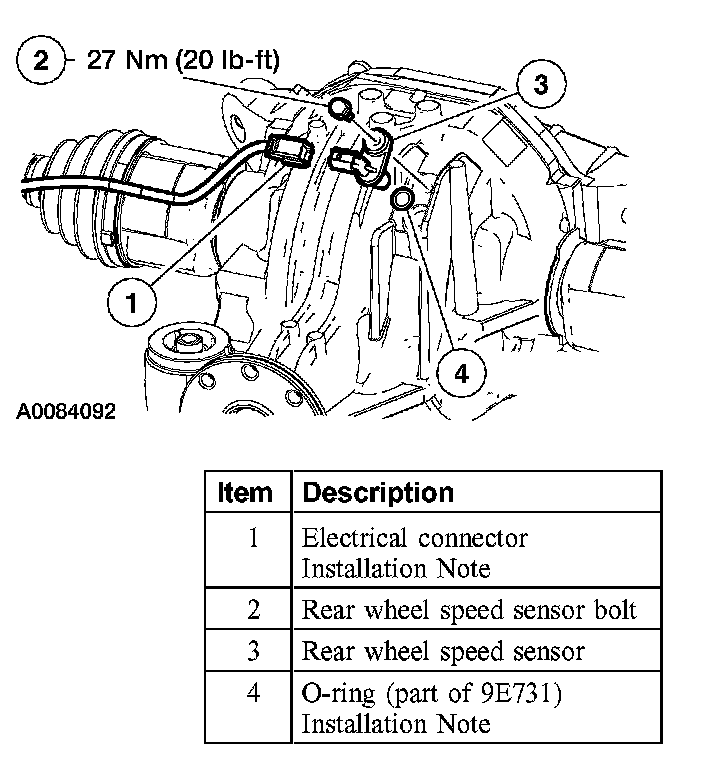

3. On vehicles equipped with Anti-Lock Brake System (ABS) only, remove the parts in the order indicated in the illustration and table.
Part 1 Of 2:
Part 2 Of 2:

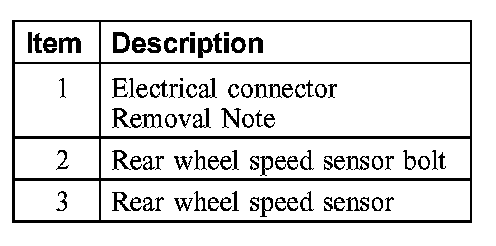

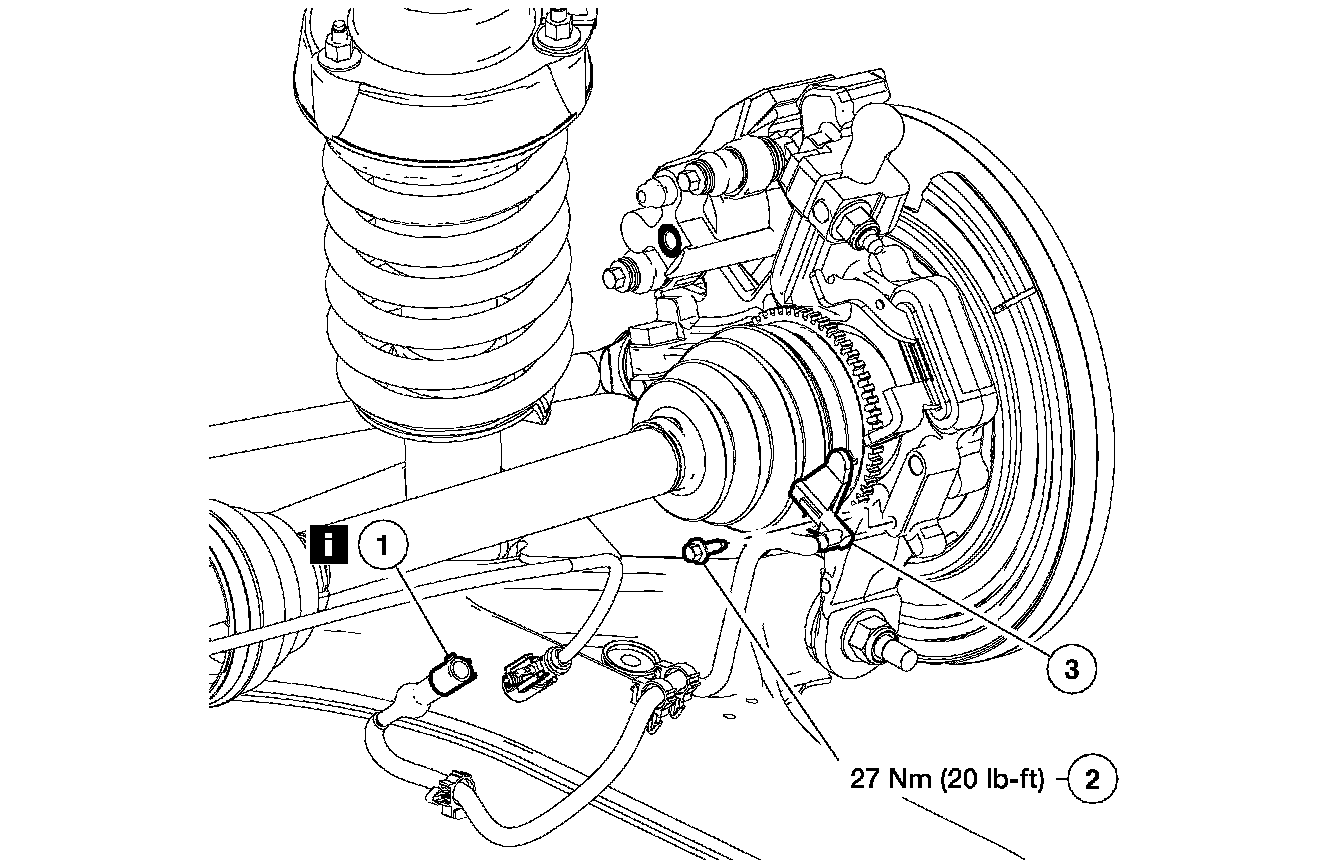

4. On vehicles equipped with ABS with stability assist, remove the parts in the order indicated in the illustration and table.
5. To install, reverse the removal procedure.
Item 1 (ABS With Stability Assist): Electrical Connector Removal Note
1. Remove the rear wheel and tire.
Item 4 (ABS Only): O-Ring Installation Note
1. Install a new O-ring.
Item 1 (ABS Only): Electrical Connector Installation Note
1. Apply electrical grease to the connector terminals.
