Sensor, Front

Front Wheel Speed Sensor

Removal and Installation
1. Disconnect the battery.
2. Remove the RH front rotor.

Part 1 Of 2:




Part 2 Of 2:

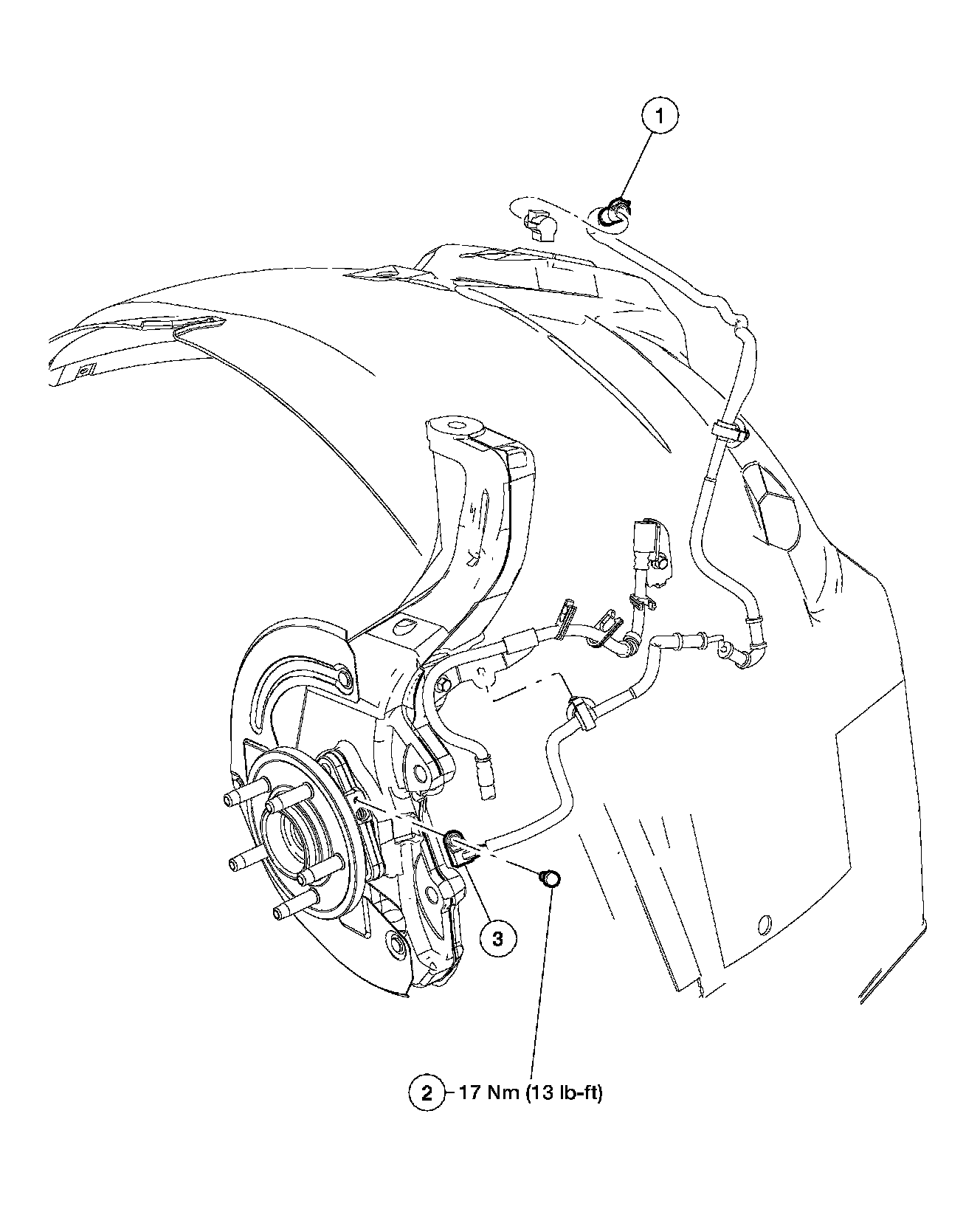

3. Remove the parts in the order indicated in the illustration and table.
4. To install, reverse the removal procedure.
