Test R

Pinpoint Test R: The Stability Assist Switch Indicator Is Never/Always On

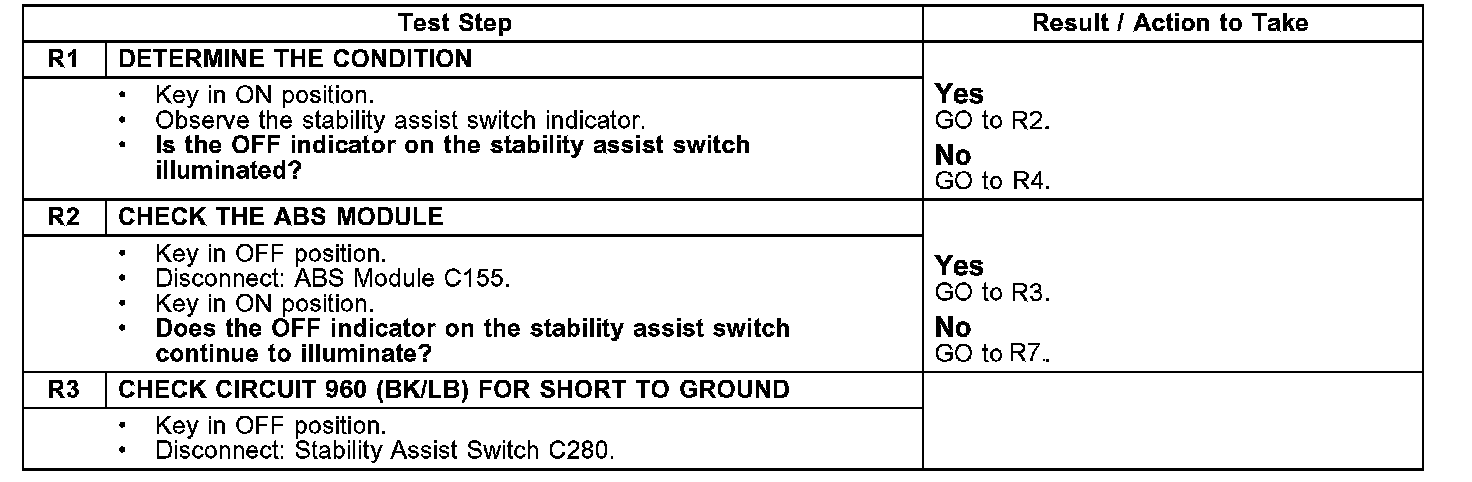

Test R1 - R3 (Continued):

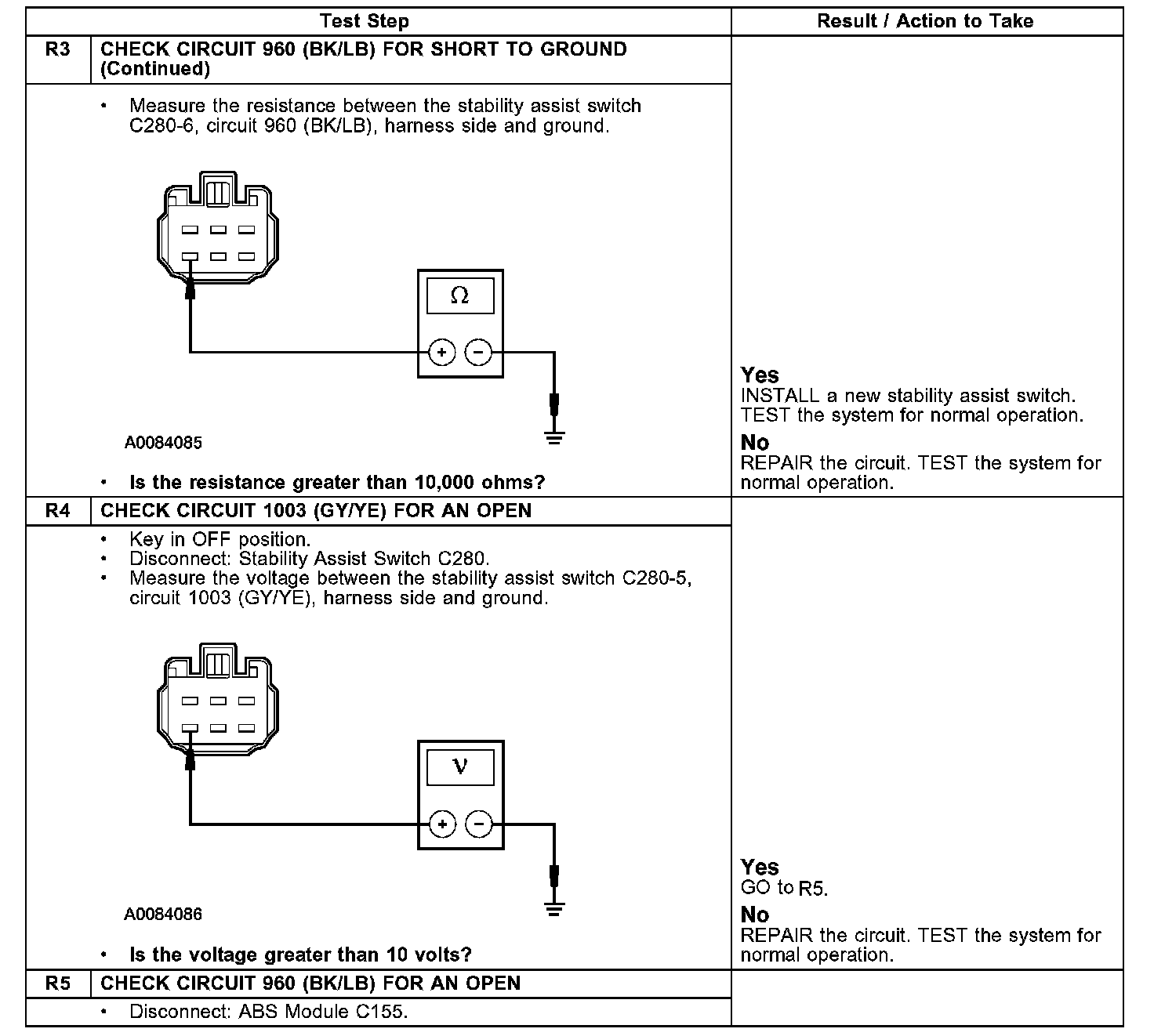

Test R3 - R5 (Continued):

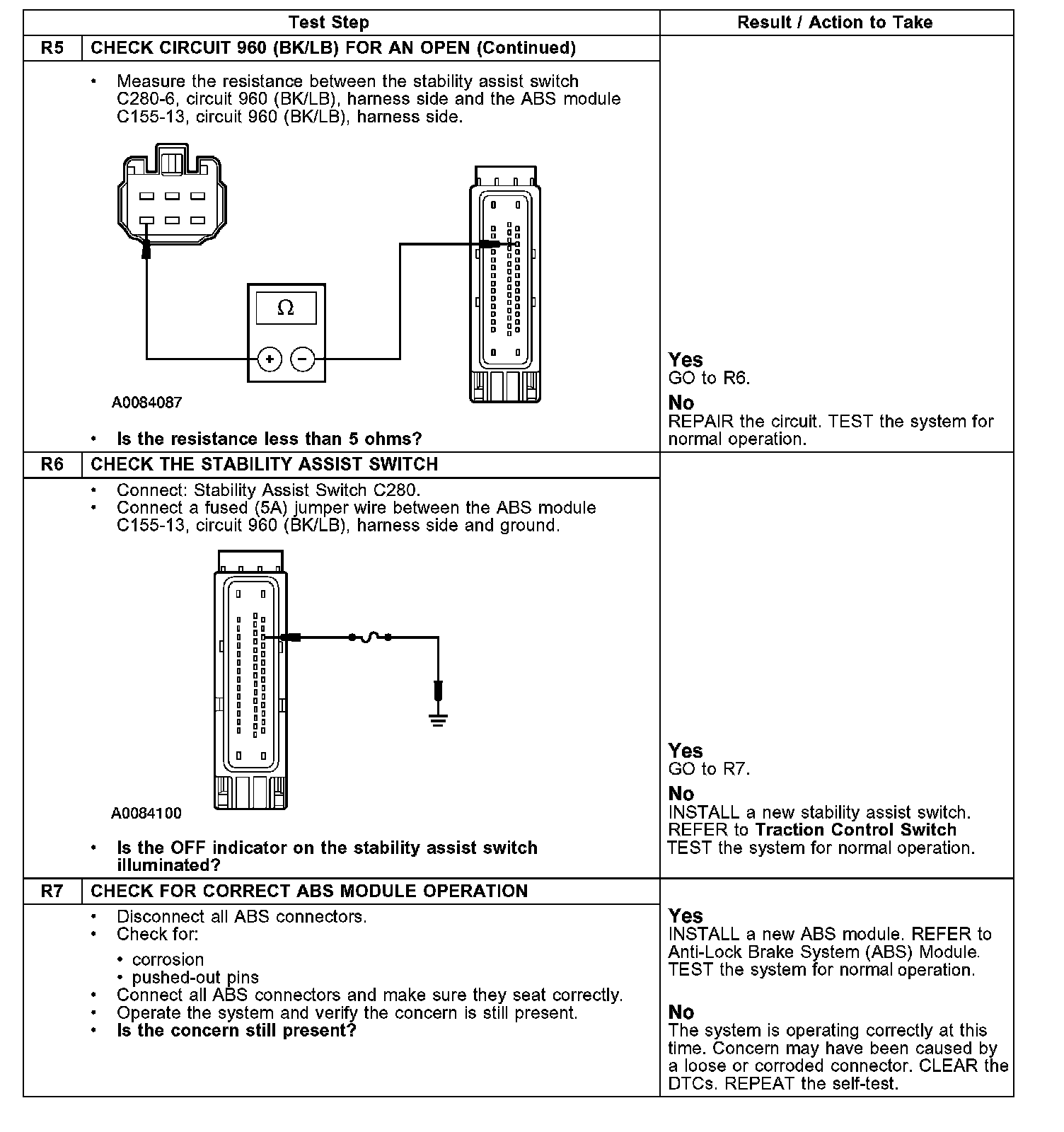

Test R5 - R7:

Normal Operation
Circuit 1003 (GY/YE) provides voltage to the stability assist switch. Ground for the stability assist switch indicator lamp is provided and controlled by the ABS module through circuit 960 (BK/LB).

Possible Causes
^ circuit 1003 (GY/YE) open
^ circuit 960 (BK/LB) open, short to power or short to ground
^ stability assist switch
^ ABS module
