Home >> Lincoln Truck >> 2004 >> Aviator 2WD V8-4.6L DOHC VIN H >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Sensor Cluster C3179

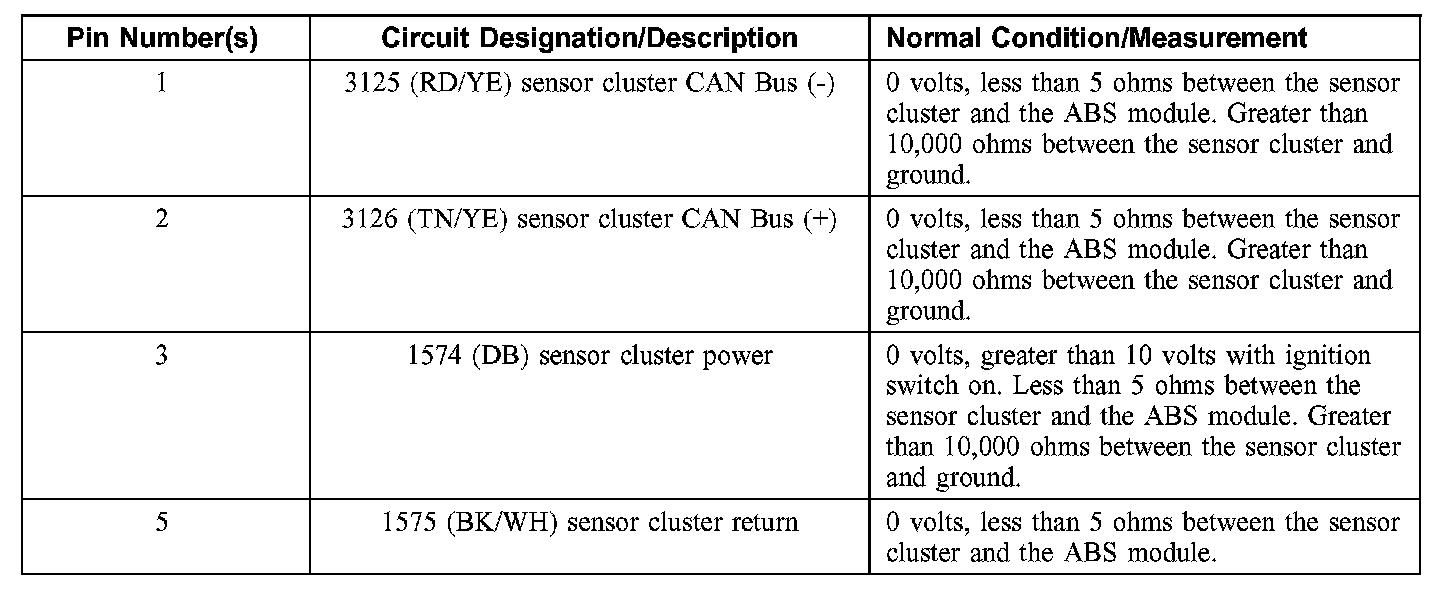

Sensor Cluster C3179

Part 1 Of 2:



Part 2 Of 2:
