Lincoln Truck
>>
2004
>>
Aviator 2WD V8-4.6L DOHC VIN H
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector Circuit Reference
>>

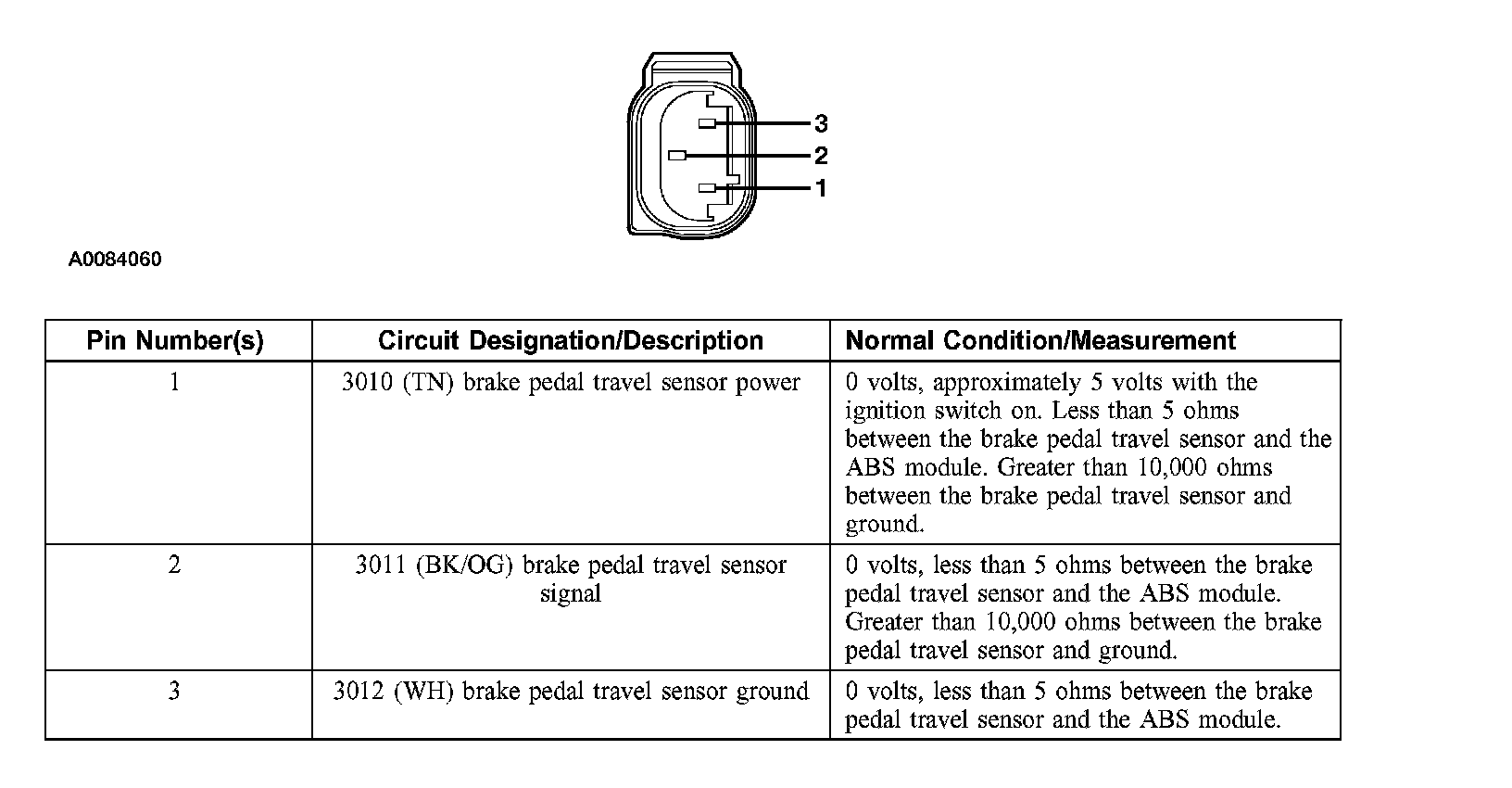

Brake Pedal Travel Sensor C148
Brake Pedal Travel Sensor C148
Brake Pedal Travel Sensor C148:
