ABS Control Module Diagnostic Trouble Code (DTC) Index

Anti-Lock Brake System (ABS) Module Diagnostic Trouble Code (DTC) Index

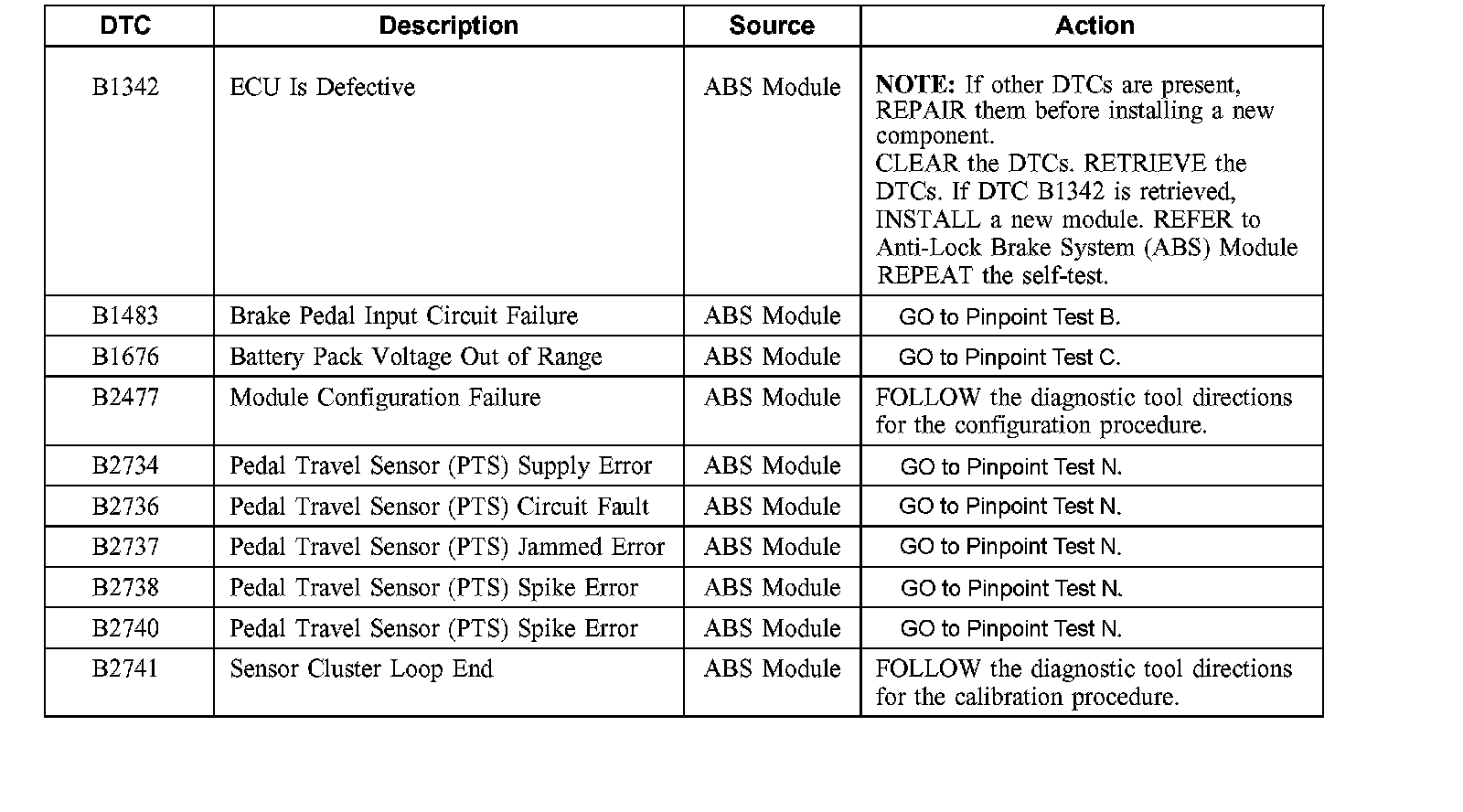

B1342-B2741:

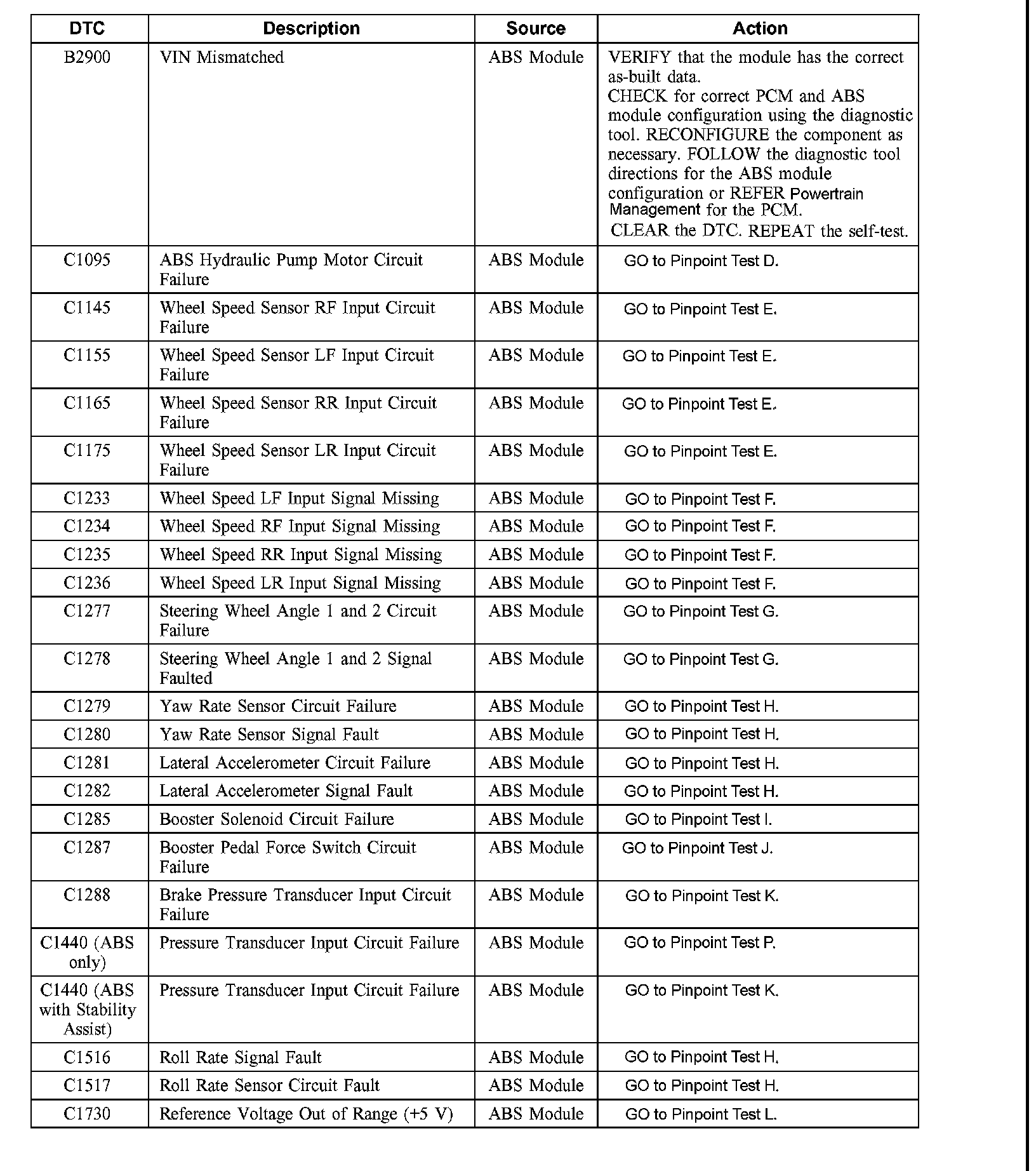

B2900 / C1095-C1730:

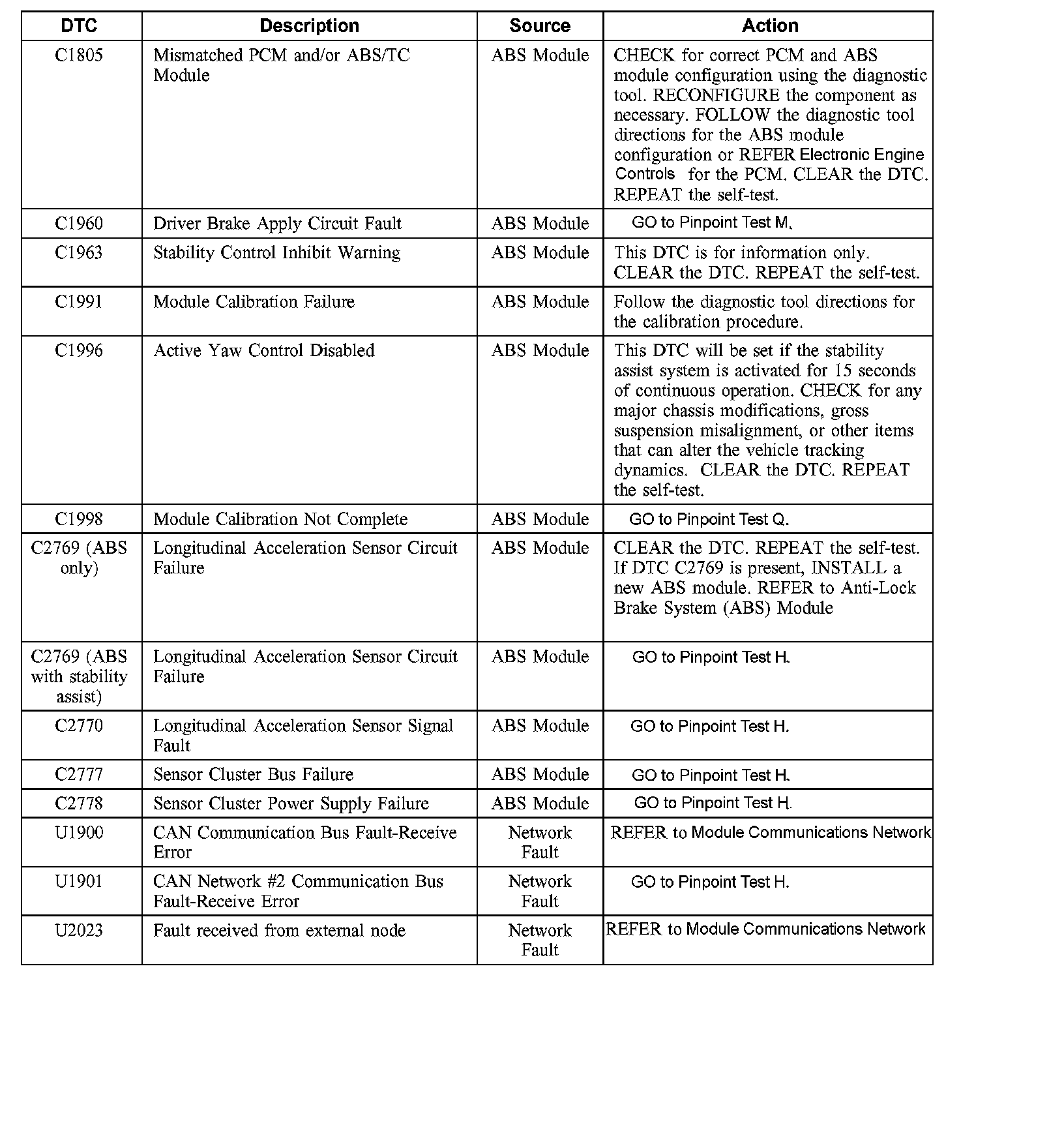

C1805-C2778:

NOTE: If DTC B2900, C1805 and U1900 are set at the time, diagnose the concern for U1900 first.

NOTE: DTC C1730 (Reference Voltage Out Of Range) must be repaired before DTC C1279, C1280, C1281, C1282, C1288, C1289.
