Antilock Brakes / Traction Control Systems: Specifications

Part 1 Of 2:

Part 2 Of 2:

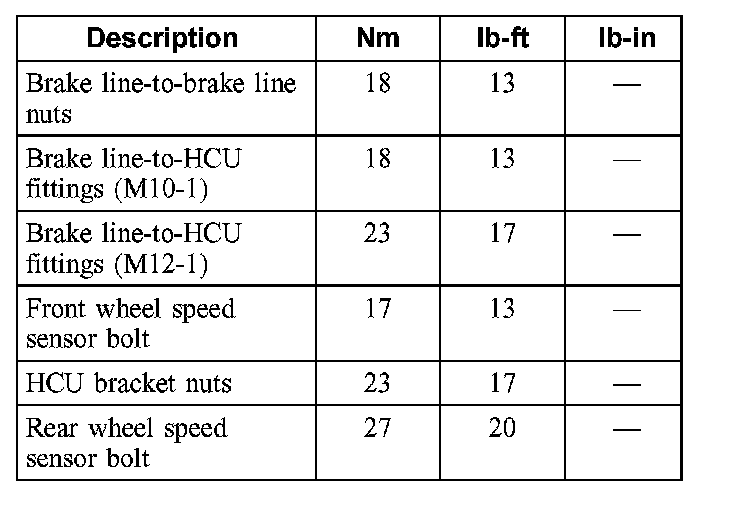

Torque Specifications
Anti-lock brake system (ABS) module screws 6 Nm (53 inch lbs.)
Sensor cluster bracket-to-floorpan nuts 7 Nm (62 inch lbs.)
Bracket-to-brake line holder nuts 9 Nm (80 inch lbs.)
Bracket-to-hydraulic control unit (HCU) bolts 17 Nm (13 ft. lbs.)
Brake line-to-brake line nuts 18 Nm (13 ft. lbs.)
Brake line-to-HCU fittings (M10-1) 18 Nm (13 ft. lbs.)
Brake line-to-HCU fittings (M12-1) 23 Nm (17 ft. lbs.)
Front wheel speed sensor bolt 17 Nm (13 ft. lbs.)
HCU bracket nuts 23 Nm (17 ft. lbs.)
Rear wheel speed sensor bolt 27 Nm (20 ft. lbs.)
