Passenger Climate Controlled Seat Module (CCSM) C3036a

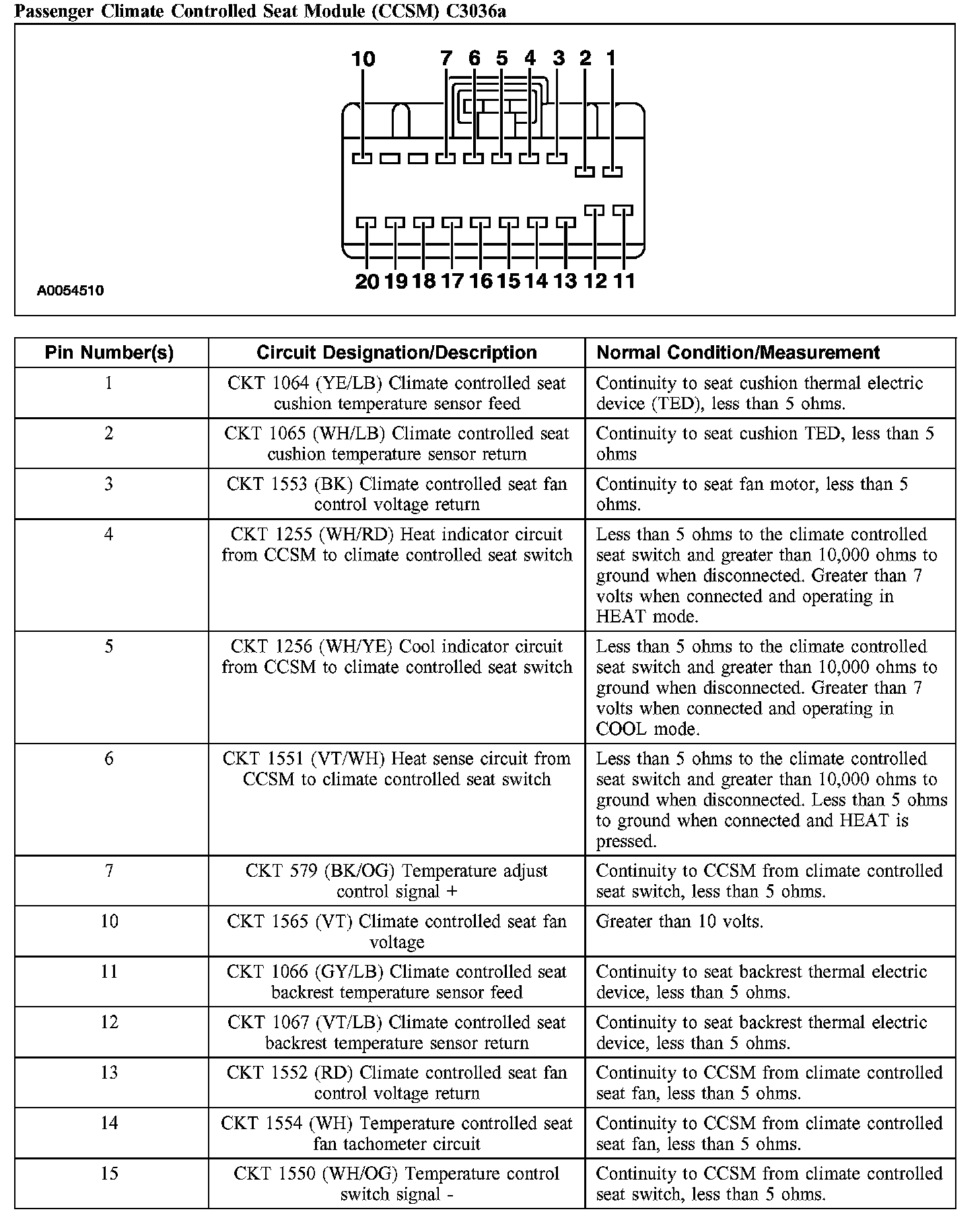

Passenger Climate Controlled Seat Module (CCSM) C3036a, Part 1:

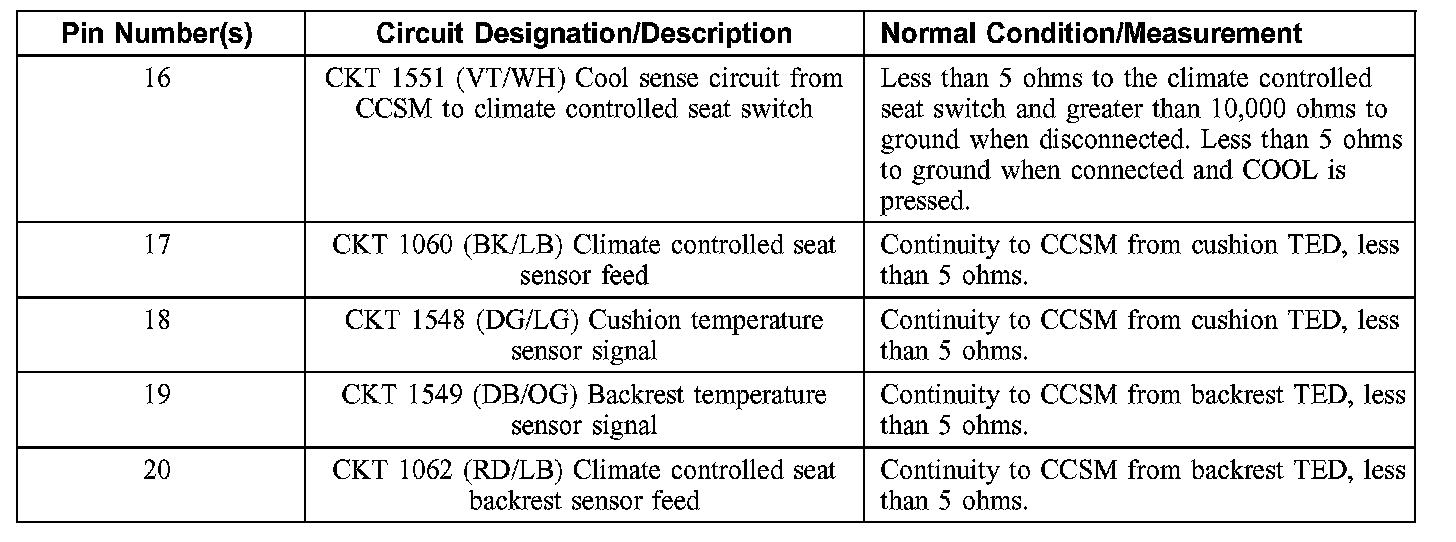

Passenger Climate Controlled Seat Module (CCSM) C3O36a, Part 2:
