Seat Temperature Switch: Service and Repair

CLIMATE CONTROLLED SEAT SWITCH

REMOVAL

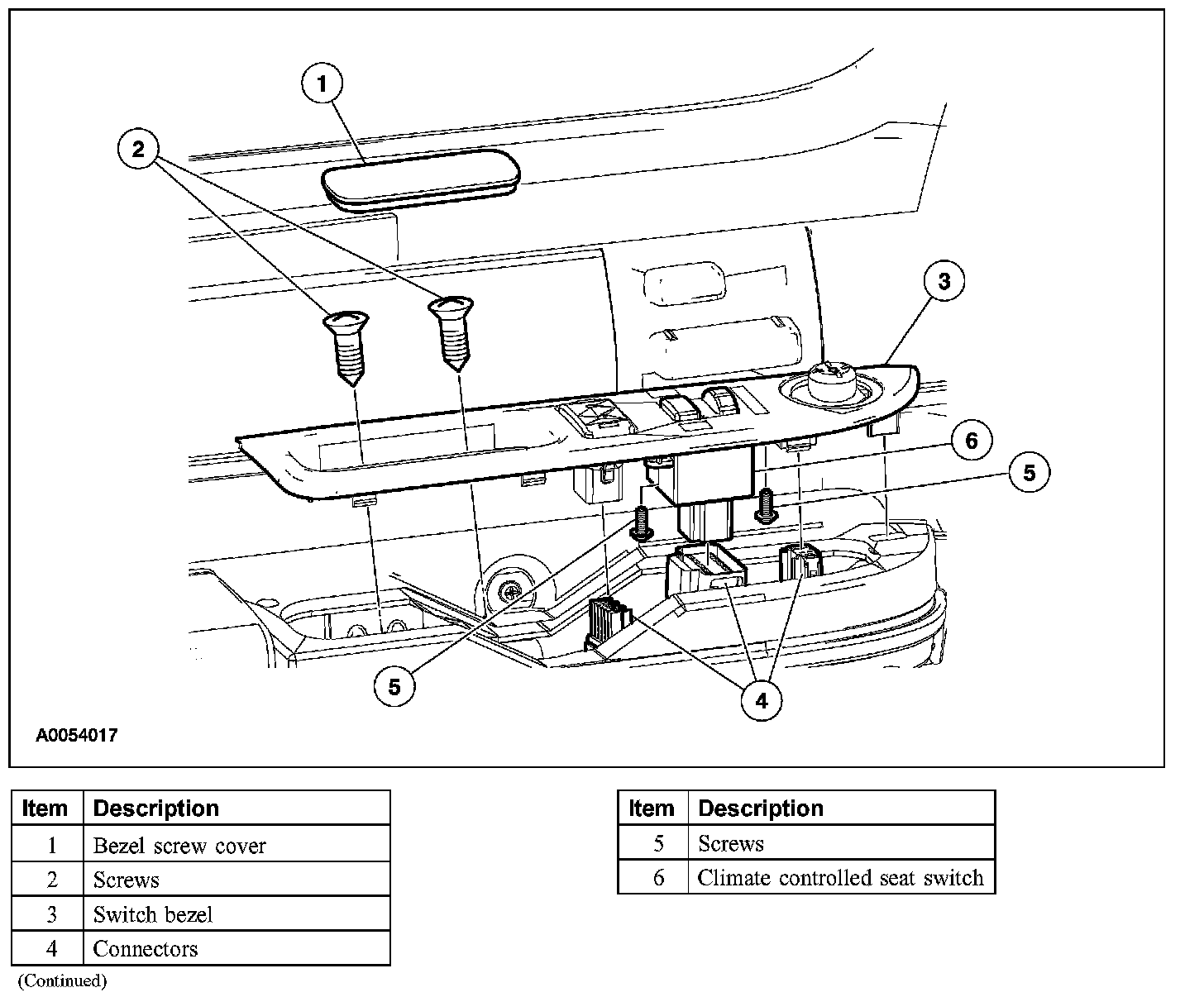

1. Remove the parts in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
