Power Seat Switch: Service and Repair
SEAT CONTROL SWITCHREMOVAL
1. Remove the driver door panel.

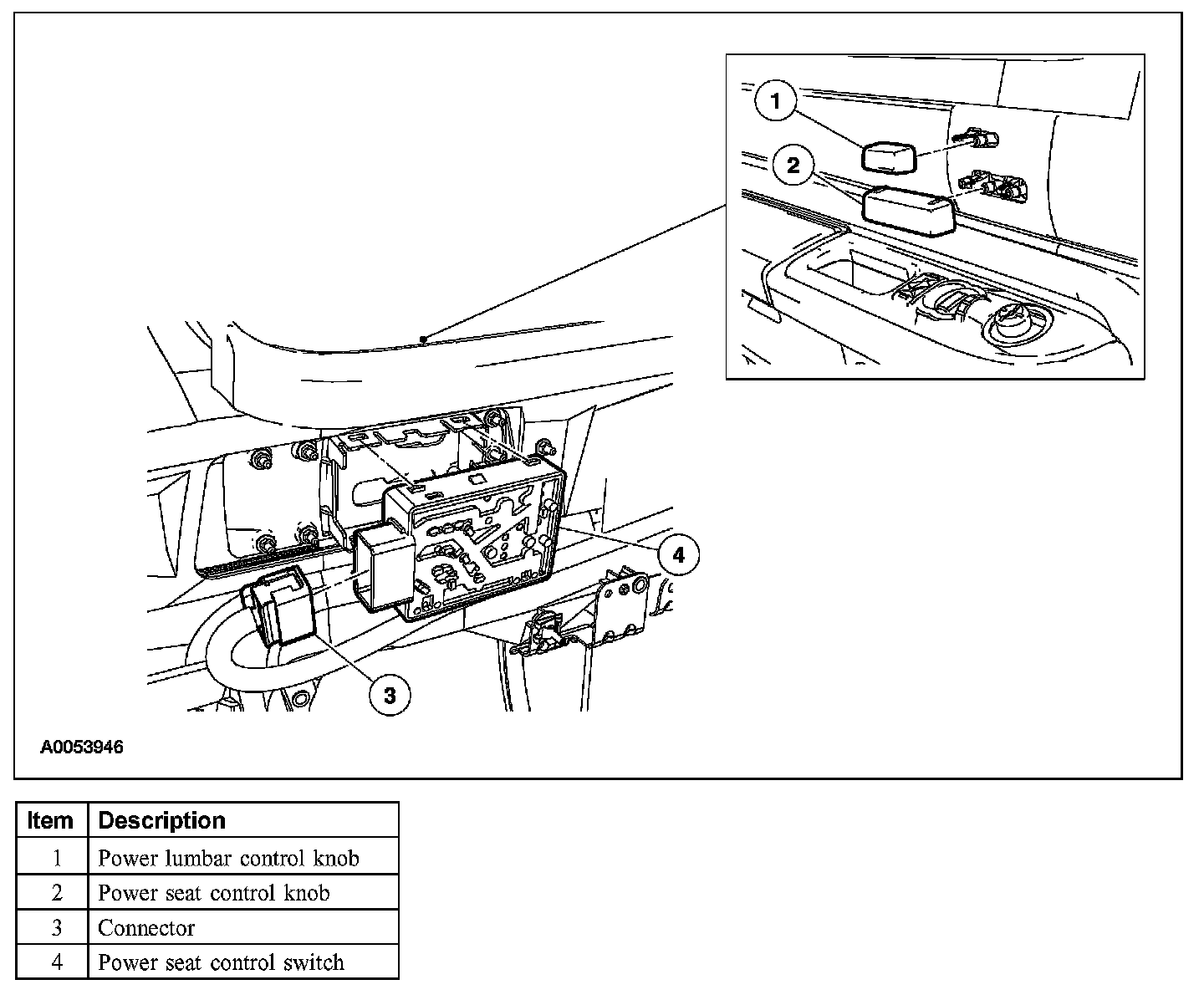

2. Remove the parts in the order indicated in the illustration and table.
INSTALLATION
1. To install, reverse the removal procedure.
REMOVAL
1. Remove the driver door panel.
2. Remove the parts in the order indicated in the illustration and table.
INSTALLATION
1. To install, reverse the removal procedure.
