Interior Trim Panel

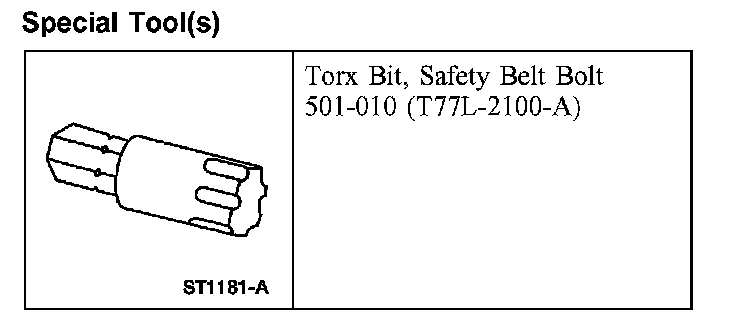

INTERIOR TRIM PANELSTorx Bit, Safety Belt Bolt:
SPECIAL TOOL(S)
REMOVAL
NOTE: RH side is shown. LH side is similar.
Part 1:
Part 2:

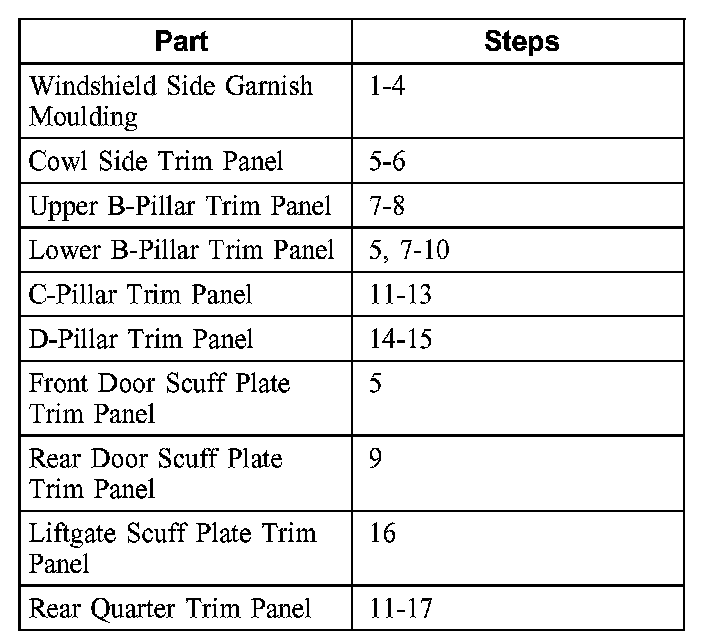

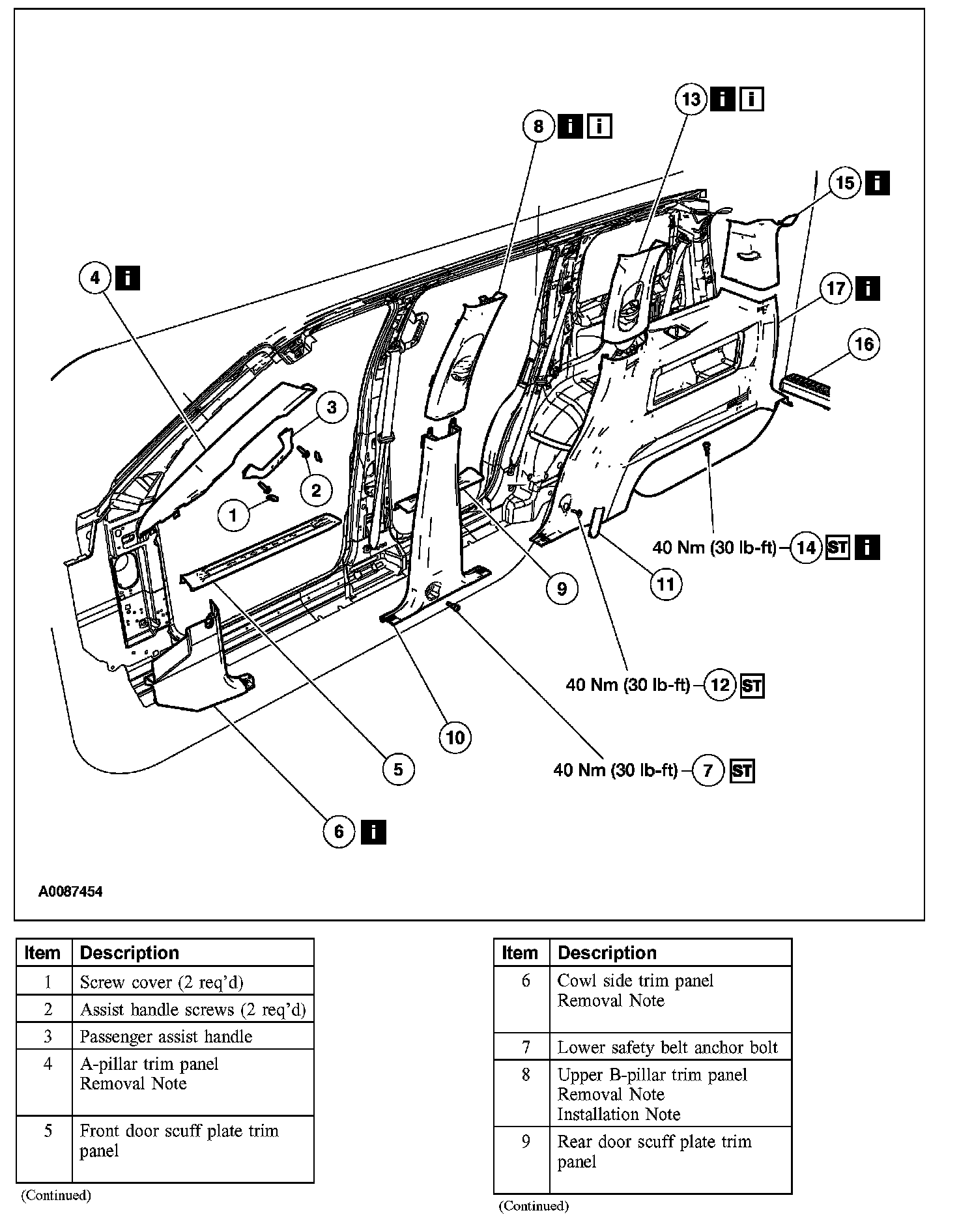

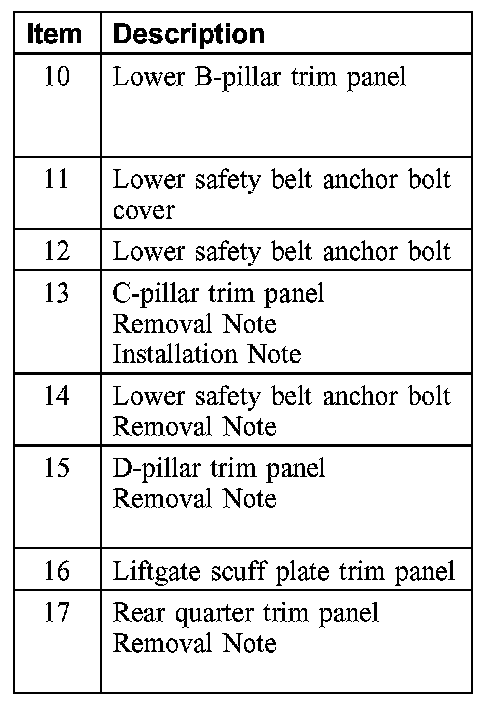

1. Remove the parts in the order listed in the illustration and table. To remove individual parts, only carry out the listed steps.
Item 4: A-Pillar Trim Panel Removal Note

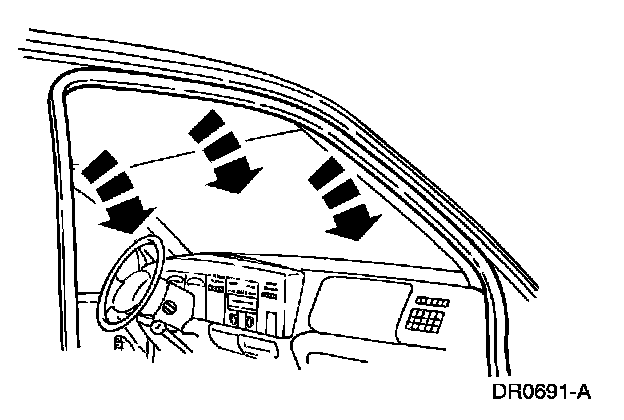

1. Pull the front door opening weatherstrip down from the top of the door frame.
Item 6: Cowl Side Trim Panel Removal Note

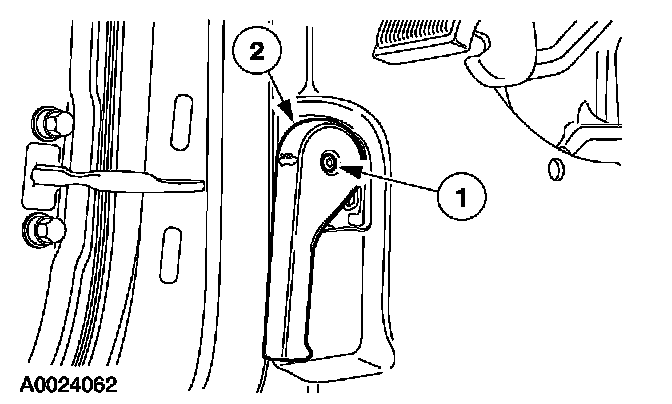

1. To remove the LH cowl side trim panel, remove the hood release lever.
1 Remove the screw.
2 Position the hood release lever aside.

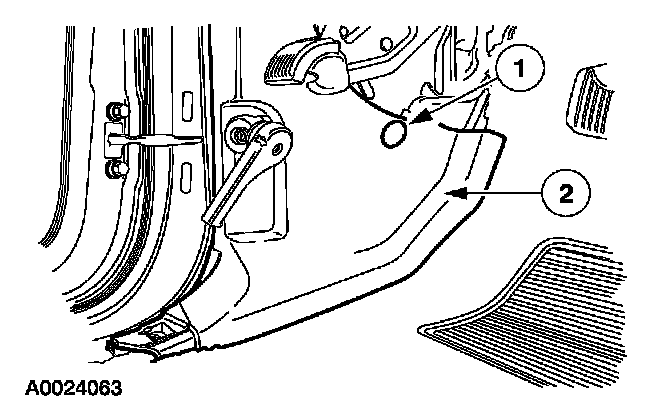

2. Remove the lower cowl trim panel.

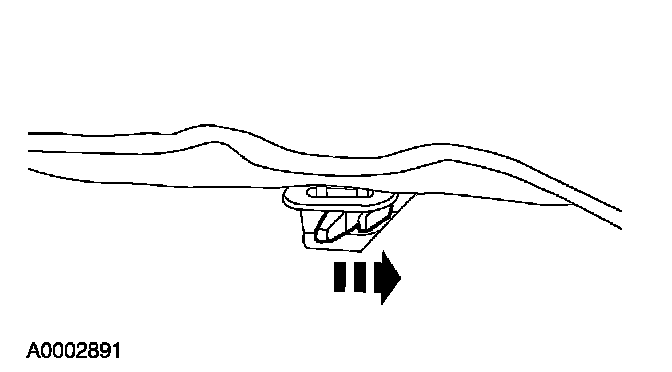

1 Remove the pin-type retainer.
2 Remove the lower cowl trim panel.
Item 8: Upper B-Pillar Trim Panel Removal Note

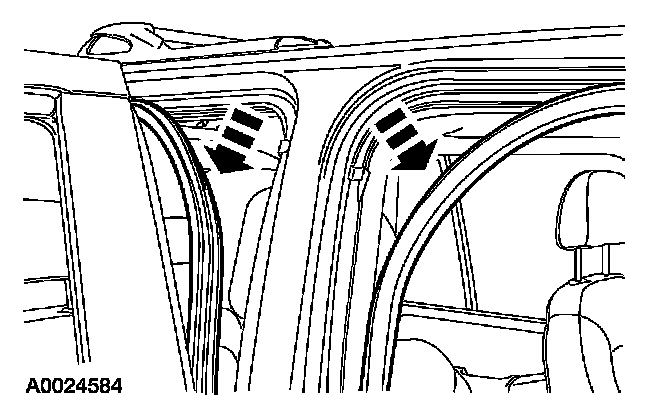

1. Remove the front and rear door opening weatherstrips along the entire length of the trim panel.
Item 13: C-Pillar Trim Panel Removal Note
1. Pull the rear door opening weatherstrip down from the top of the door frame.
Item 14: D-Pillar Lower Safety Belt Anchor Bolt Removal Note
1. Release the two levers located at each lower outboard edge of the third row seat cushion and position the seat cushion aside to access the lower safety belt anchor.
Item 15: D-Pillar Trim Panel Removal Note

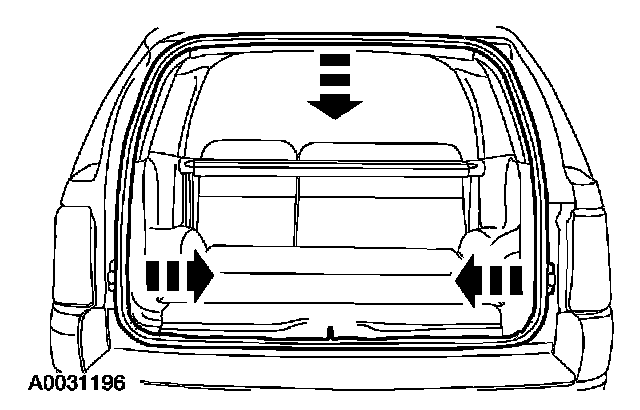

1. Position the liftgate opening weatherstrip aside.

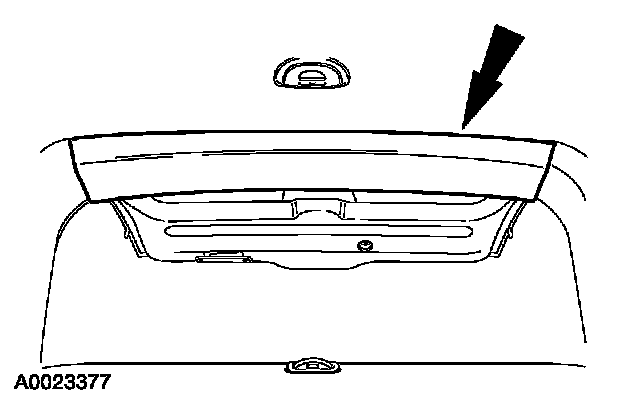

2. Remove the upper headliner trim panel.
Item 17: Rear Quarter Trim Panel Removal Note
1. Remove the third row seat.
2. If equipped, disconnect the power lock switch from the LH panel or the powerpoint electrical connector from the RH panel.
INSTALLATION
1. Install in the reverse order of removal.
Item 13: C-Pillar Trim Panel Installation Note

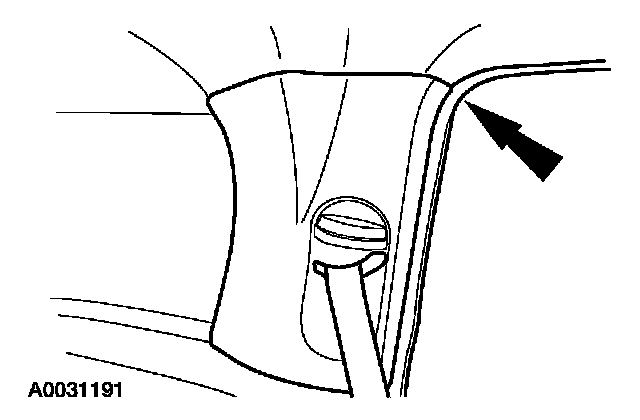

1. Be sure the hole on the back of the trim panel is seated over the upper safety belt anchor bolt.
Item 8: Upper B-Pillar Trim Panel Installation Note
1. Be sure the hole on the back of the trim panel is seated over the upper safety belt anchor bolt.
