Body Support - Number 2

BODY SUPPORT - NUMBER 2

Removal and Installation

1. Remove front seat.
2. Remove the lower B-pillar trim panel, position carpet aside and remove body insulator plug button.

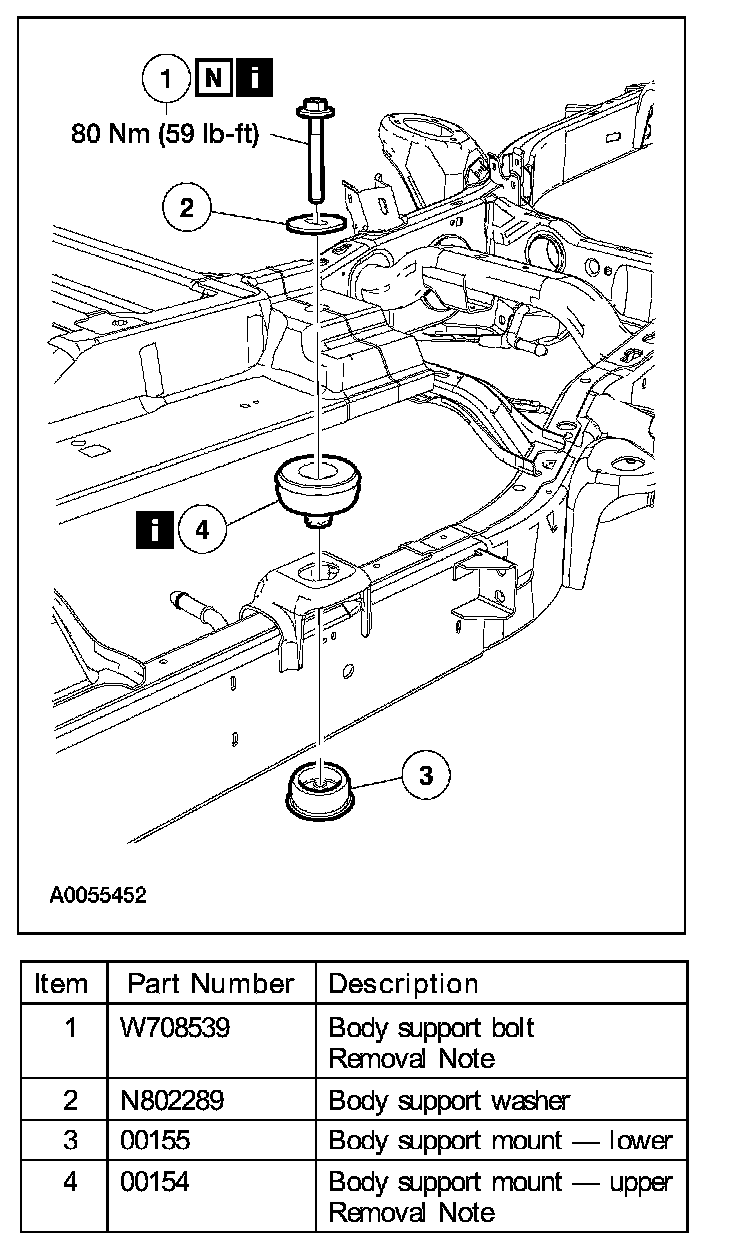

3. Remove the parts in the order indicated in the illustration and table.
4. To install, reverse the removal procedure.

Item 1: Body Support Bolt Removal Note
1. New fasteners must be installed for each fastener that has been removed or loosened.

Item 4: Body Support Mount � Upper Removal Note

1. CAUTION: When removing upper body mounts, all other body mount support bolts must be loose before raising the vehicle to prevent damage from occurring to vehicle.

NOTE:
- Do not reuse body support mounting fasteners. New fasteners must be installed for each fastener that has been removed or loosened.
- No lubricants of any kind are to be used during body mount support installation.

Loosen, but do not remove, all of the remaining body bolts in the passenger compartment.

2. Carefully raise the vehicle body enough to remove the upper body mount.
