Body Support - Front End Sheet Metal

BODY SUPPORT - FRONT END SHEET METAL

Removal and Installation

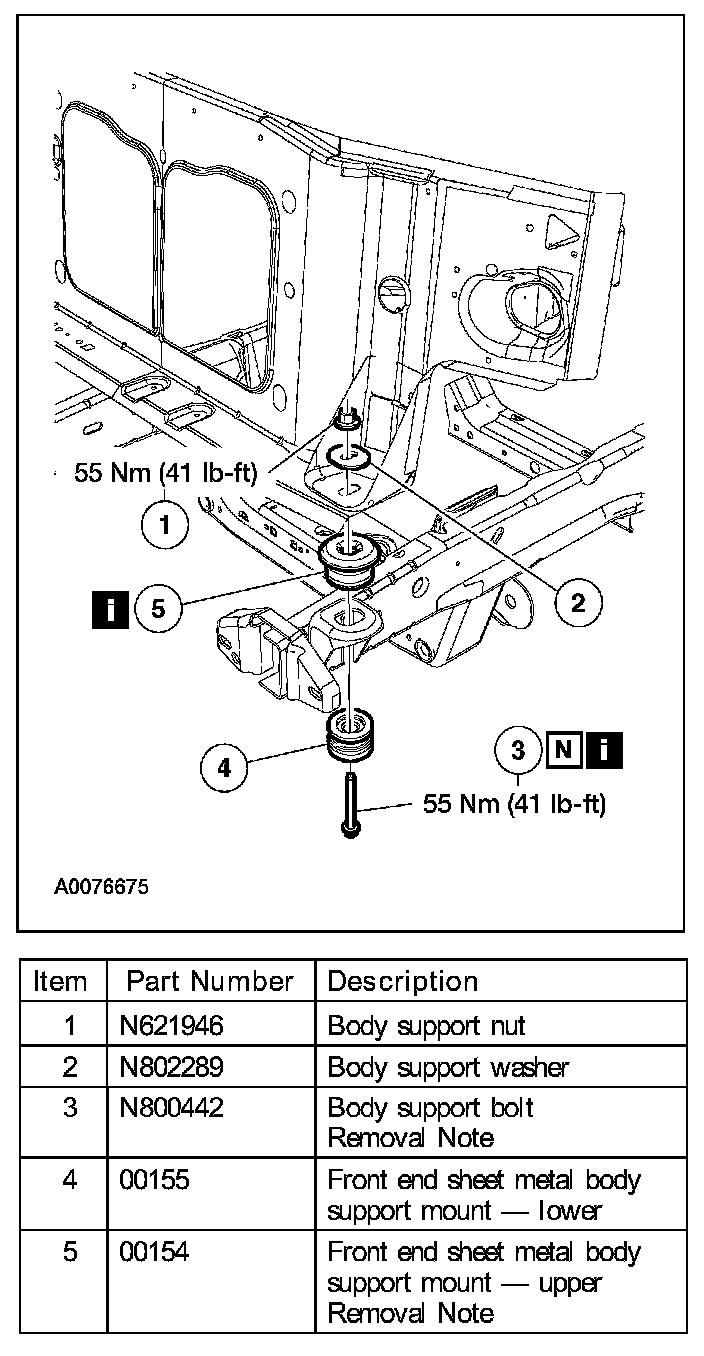

1. Remove the parts in the order indicated in the illustration and table.
2. To install, reverse the removal procedure.

Item 3: Body Support Bolt Removal Note
1. New fasteners must be installed for each fastener that has been removed or loosened.

Item 5: Front End Sheet Metal Body Support Mount - Upper Removal Note

1. CAUTION: When removing the front upper body mount, all other body mount support bolts must be loose before raising the vehicle to prevent permanent structural damage.

NOTE:
- Do not reuse body support mounting fasteners. New fasteners must be installed for each fastener that has been removed or loosened.
- No lubricants of any kind are to be used during body mount support installation. Loosen, but do not remove, all the remaining body bolts in the passenger compartment.

2. Carefully raise the vehicle body enough to remove the upper body mount.
