DVD Player: Service and Repair

DIGITAL VERSATILE DISC (DVD) PLAYER

REMOVAL
1. Disconnect the battery.

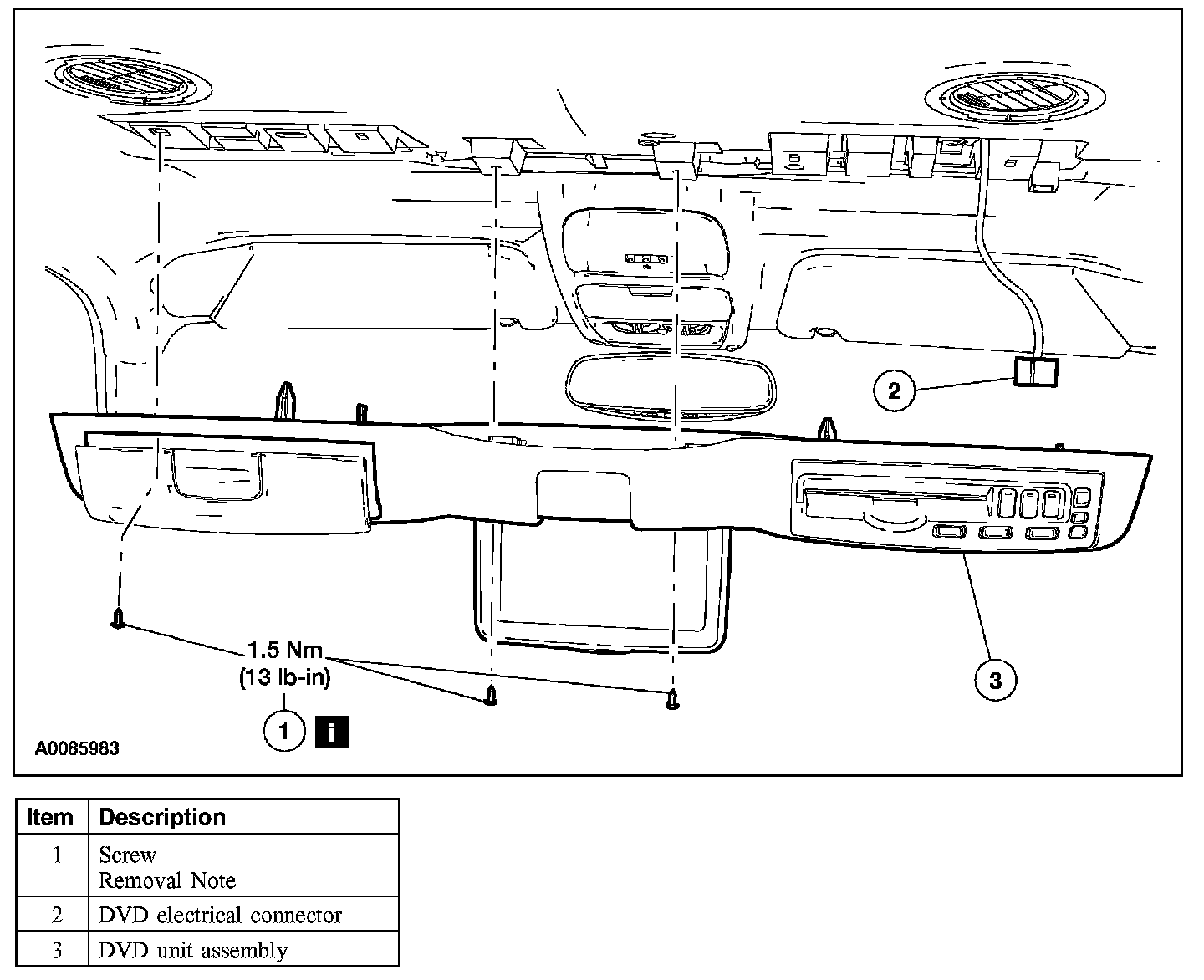

2. Remove the parts in the order indicated in the illustration and table.

Item 1: Digital Versatile Disc (DVD) Player Removal Note
1. Open the DVD display and the storage compartment door.

INSTALLATION
1. To install, reverse the removal procedure.
