Parking Assist Control Module: Service and Repair
PARKING AID MODULEREMOVAL
1. Remove the RH quarter trim panel.

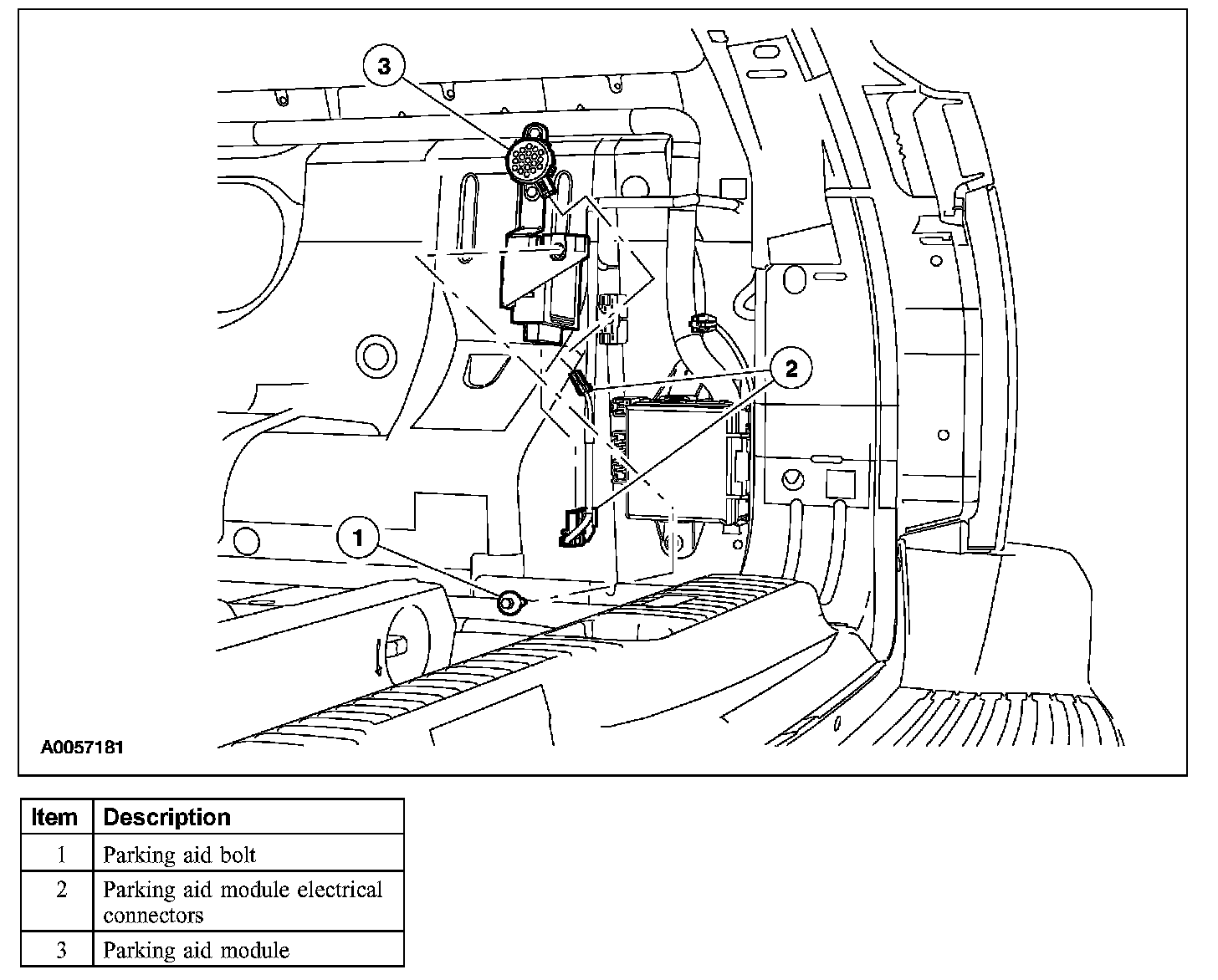

2. Remove the parts in the order indicated in the illustration and table.
INSTALLATION
1. To install, reverse the removal procedure.
REMOVAL
1. Remove the RH quarter trim panel.
2. Remove the parts in the order indicated in the illustration and table.
INSTALLATION
1. To install, reverse the removal procedure.
