Lexus
>>
2012
>>
LS 460 AWD V8-4.6L (1UR-FSE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Transfer Case
>>
Service and Repair
>>
Removal and Replacement
>>
Components
Components

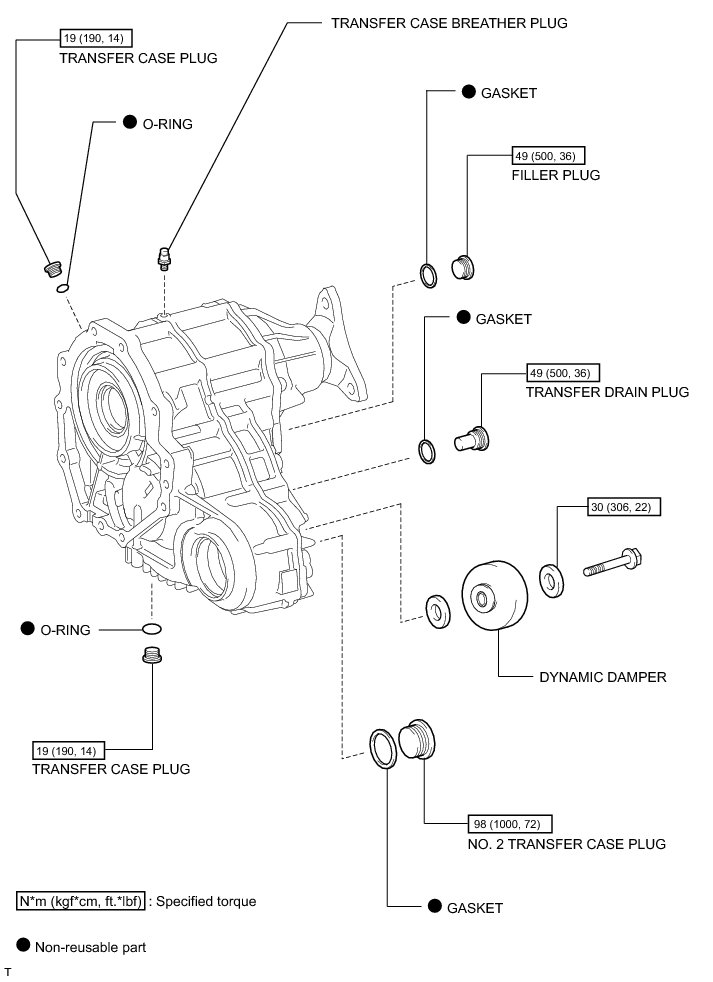

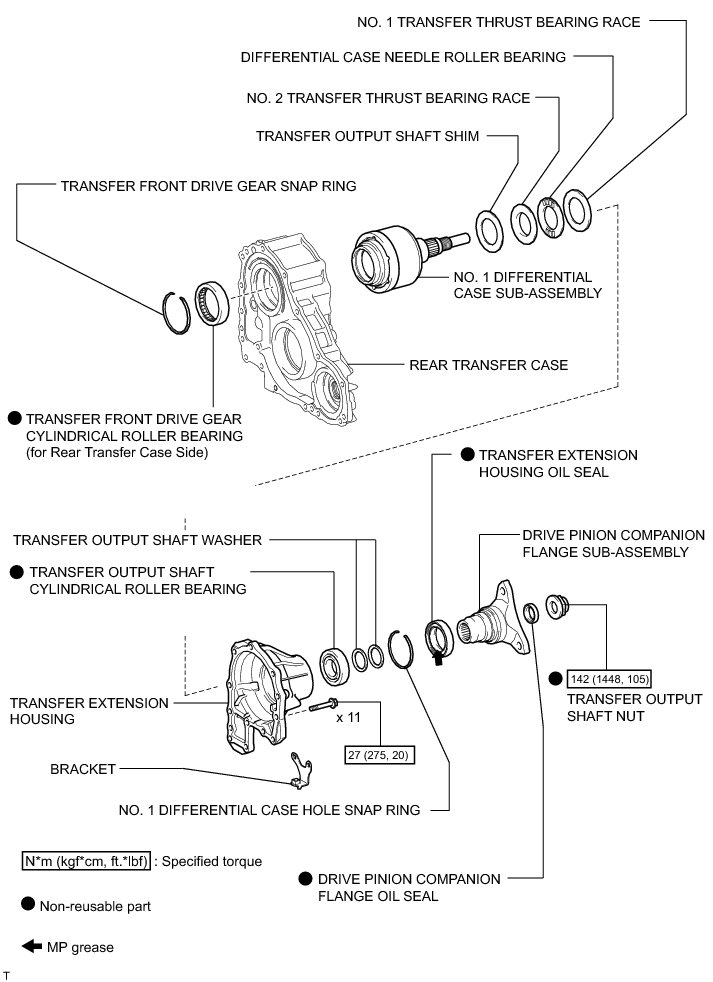

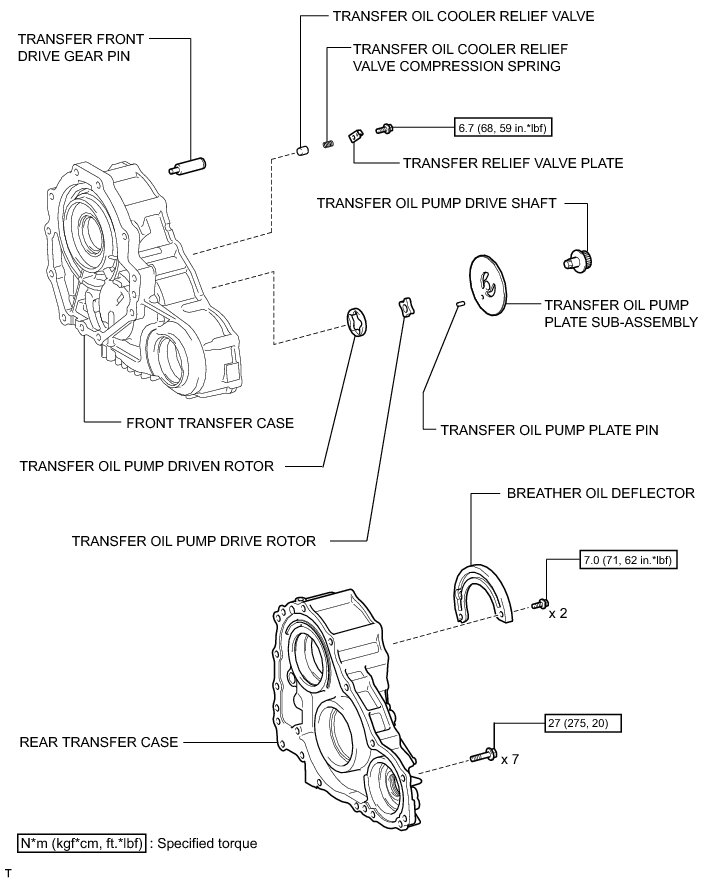

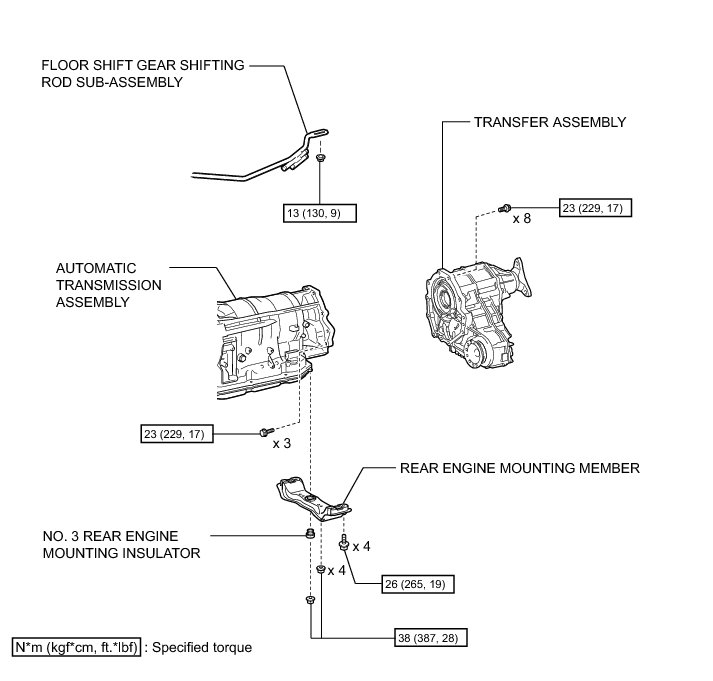

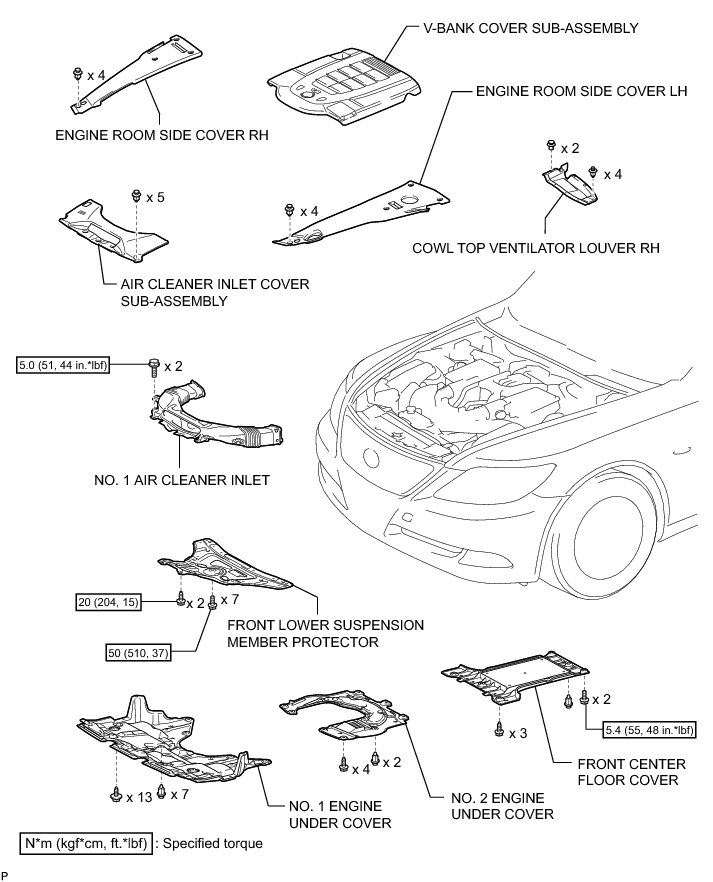

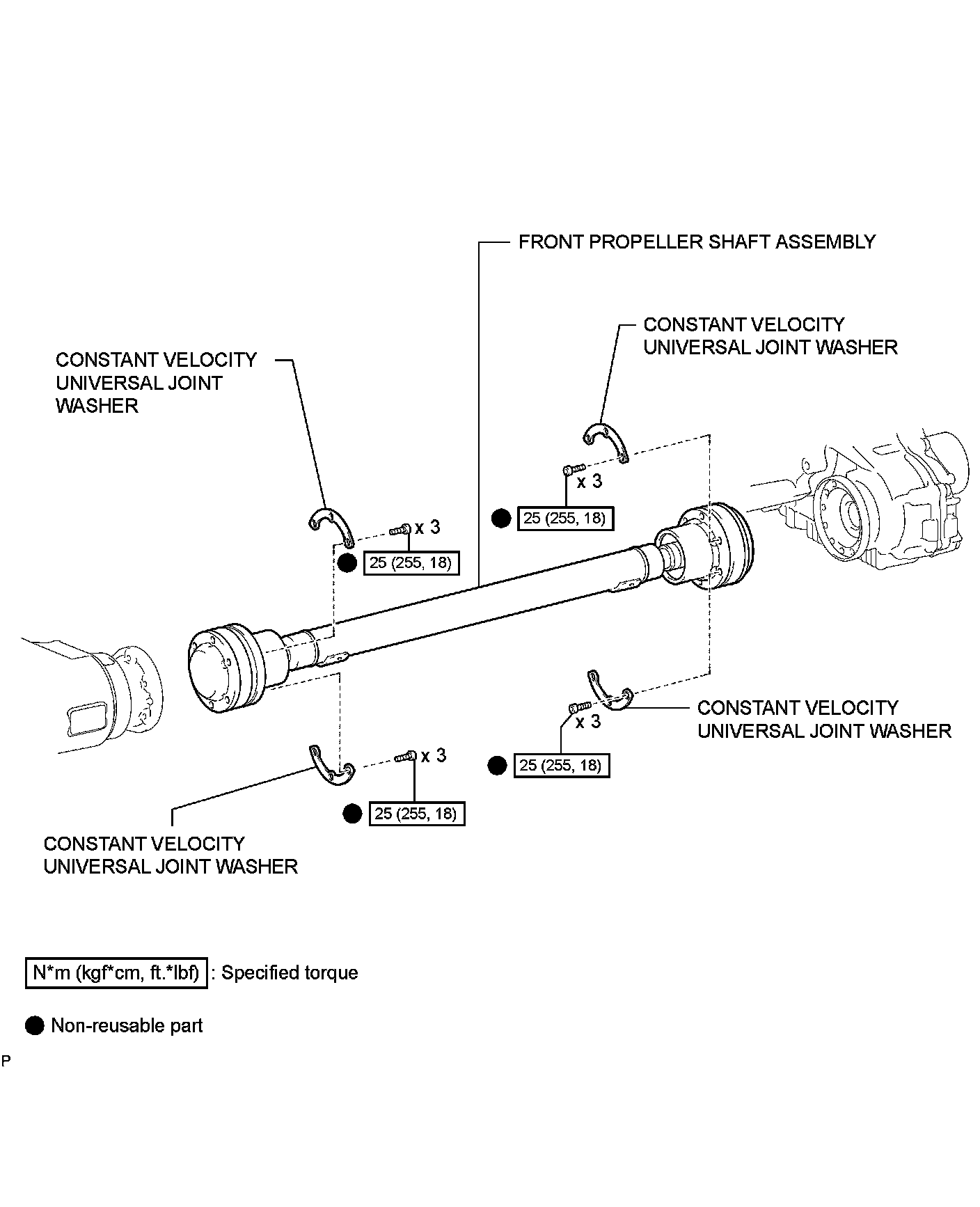

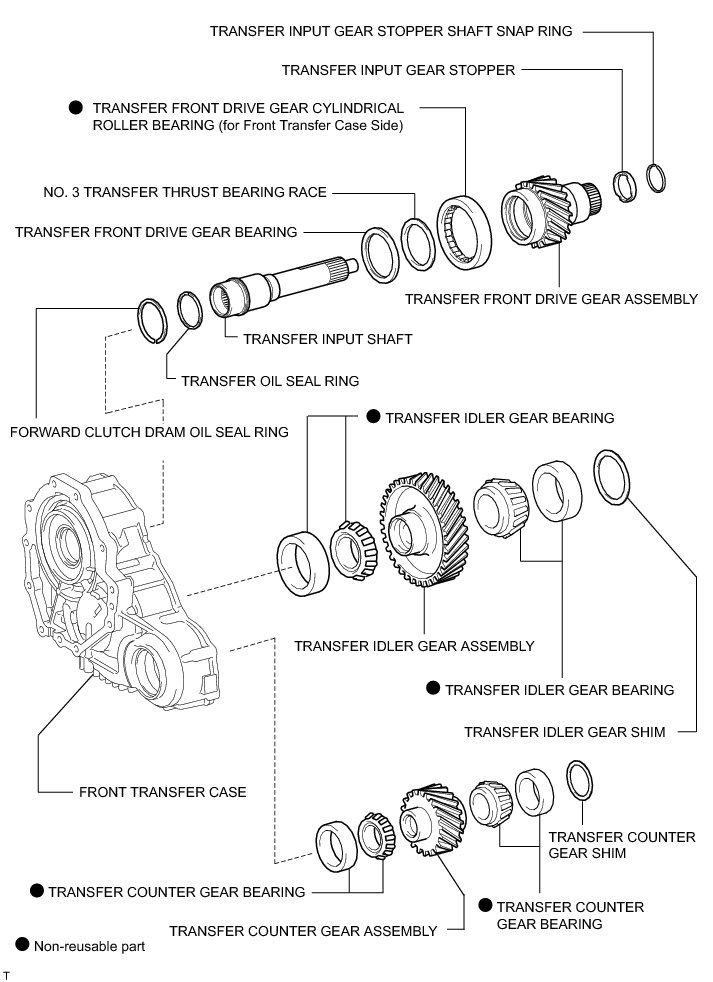

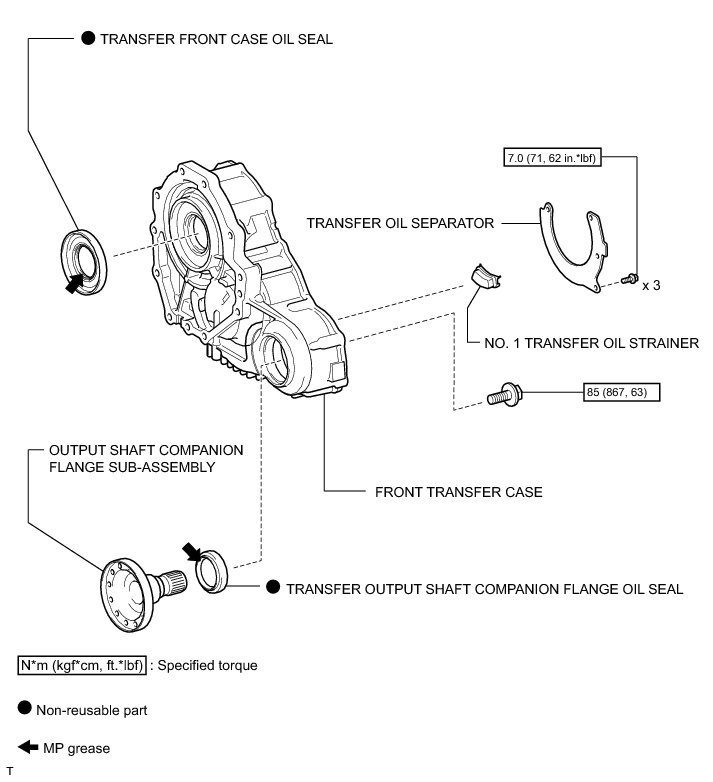

LF1A TRANSFER: TRANSFER ASSEMBLY: COMPONENTS
