Home
>>
Lexus
>>
2012
>>
LS 460 AWD V8-4.6L (1UR-FSE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Fuel Injector Control Module
>>
Service and Repair
>>
Components
Components

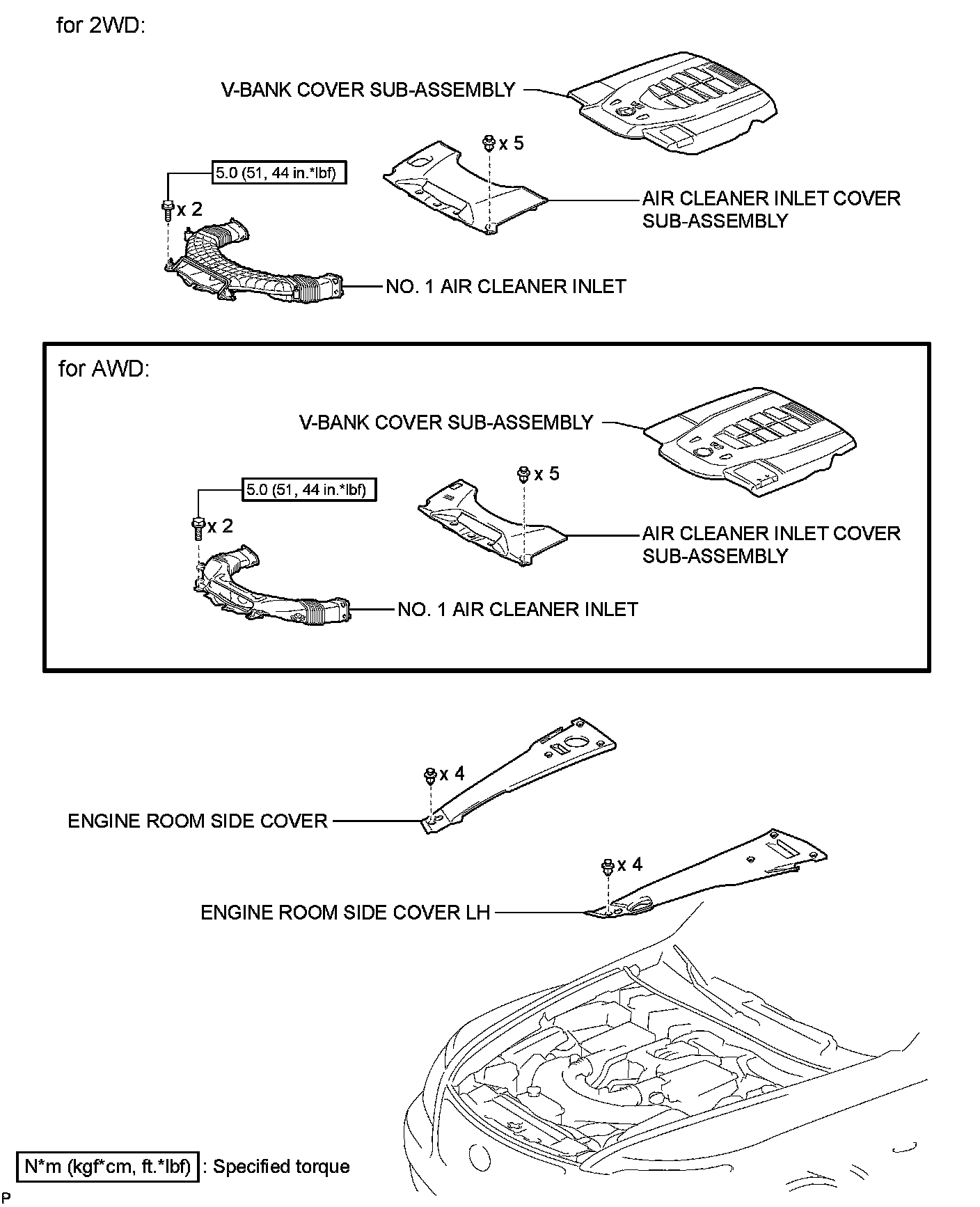

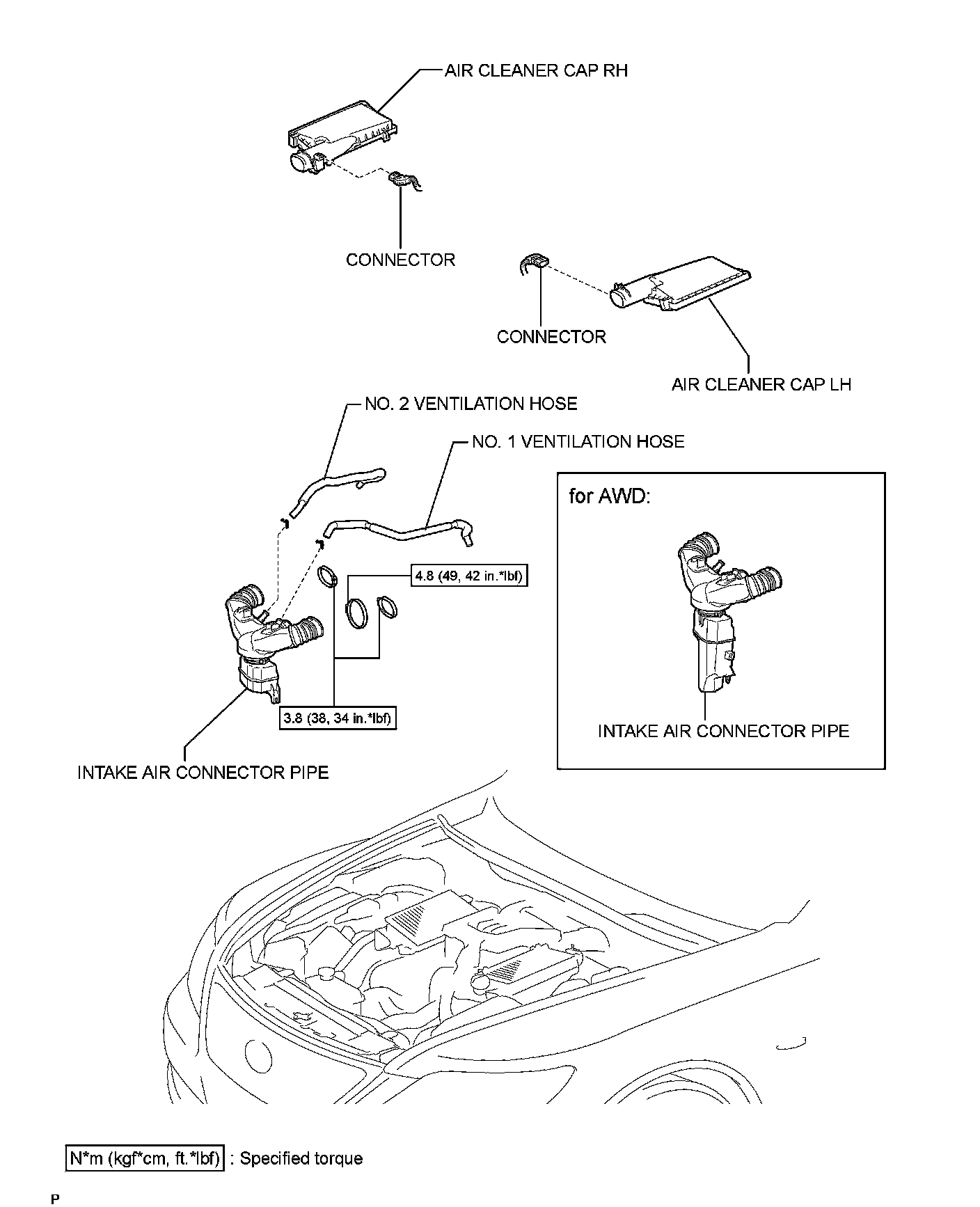

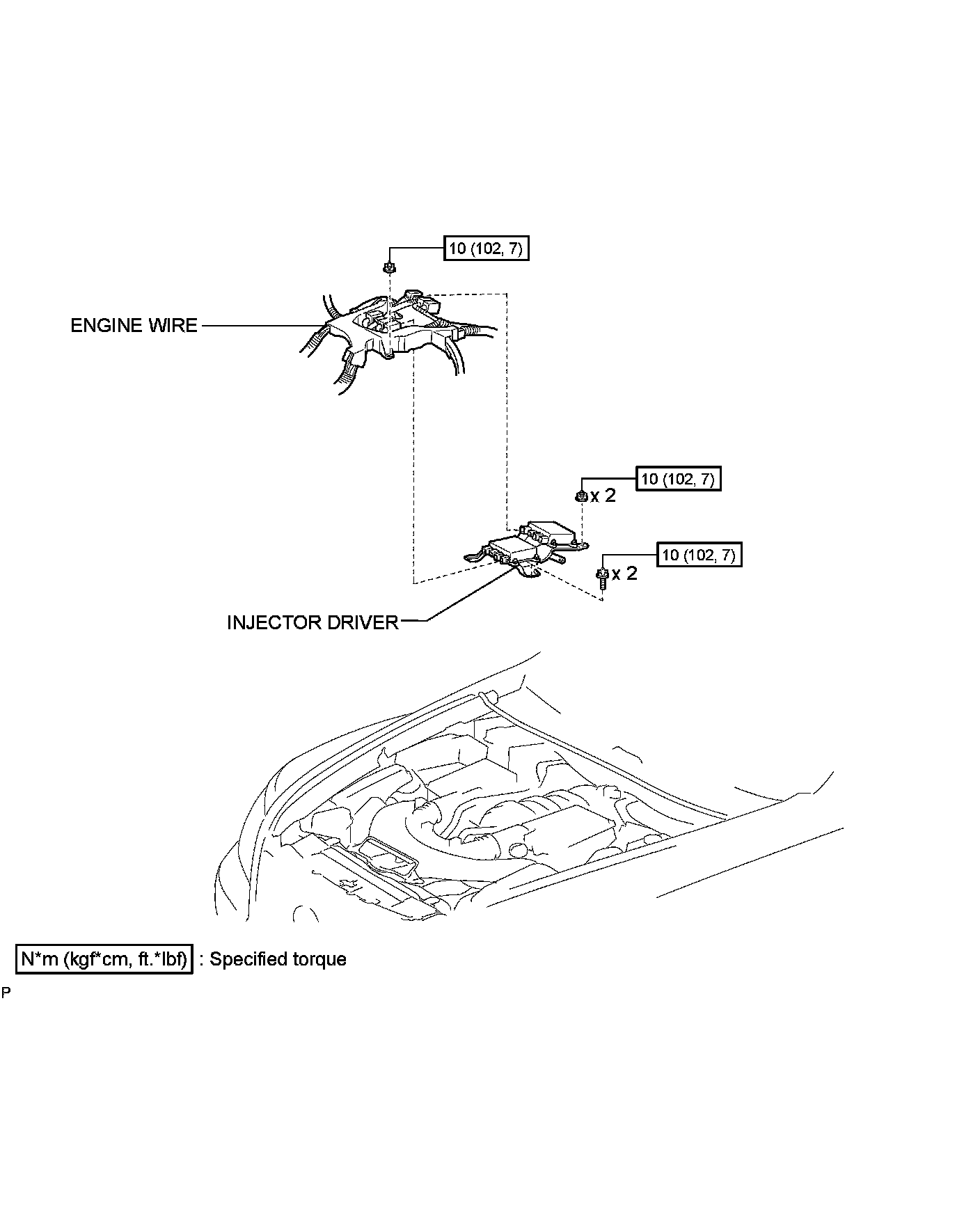

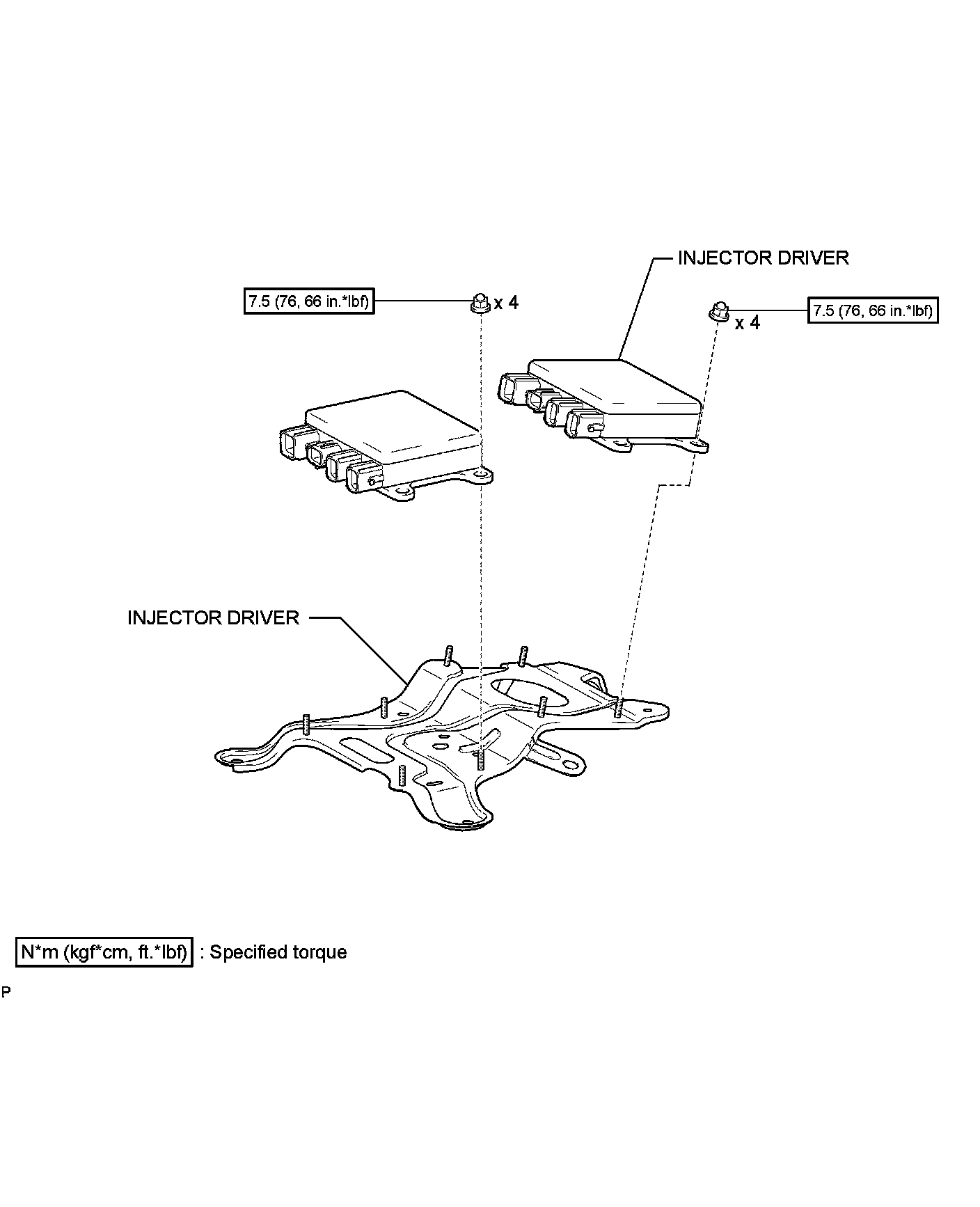

1UR-FSE FUEL: INJECTOR DRIVER: COMPONENTS
