Torque Specifications





SERVICE SPECIFICATIONS: 2GR-FSE ENGINE MECHANICAL: TORQUE SPECIFICATIONS

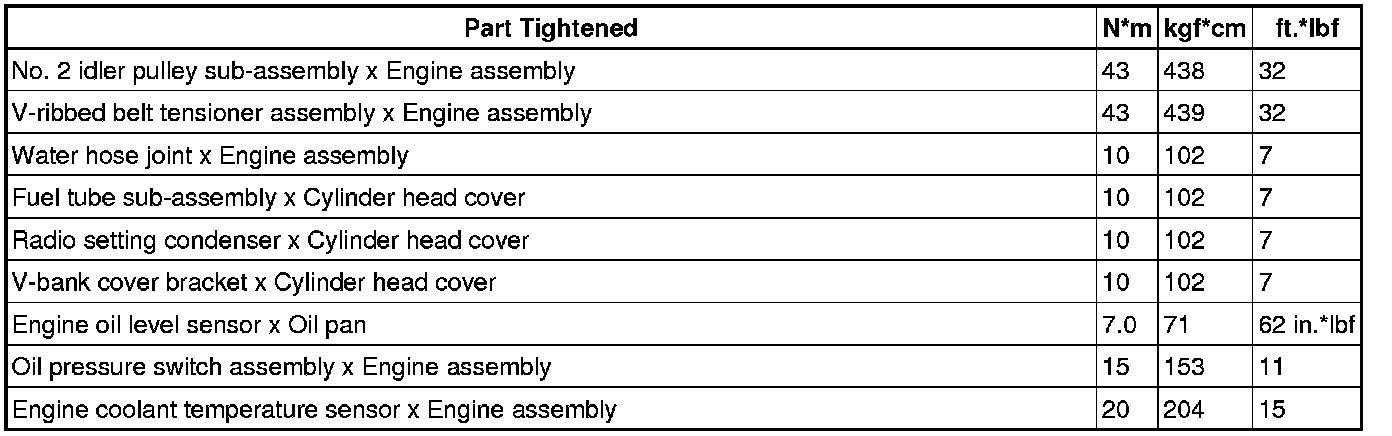

DRIVE BELT





ENGINE FRONT OIL SEAL

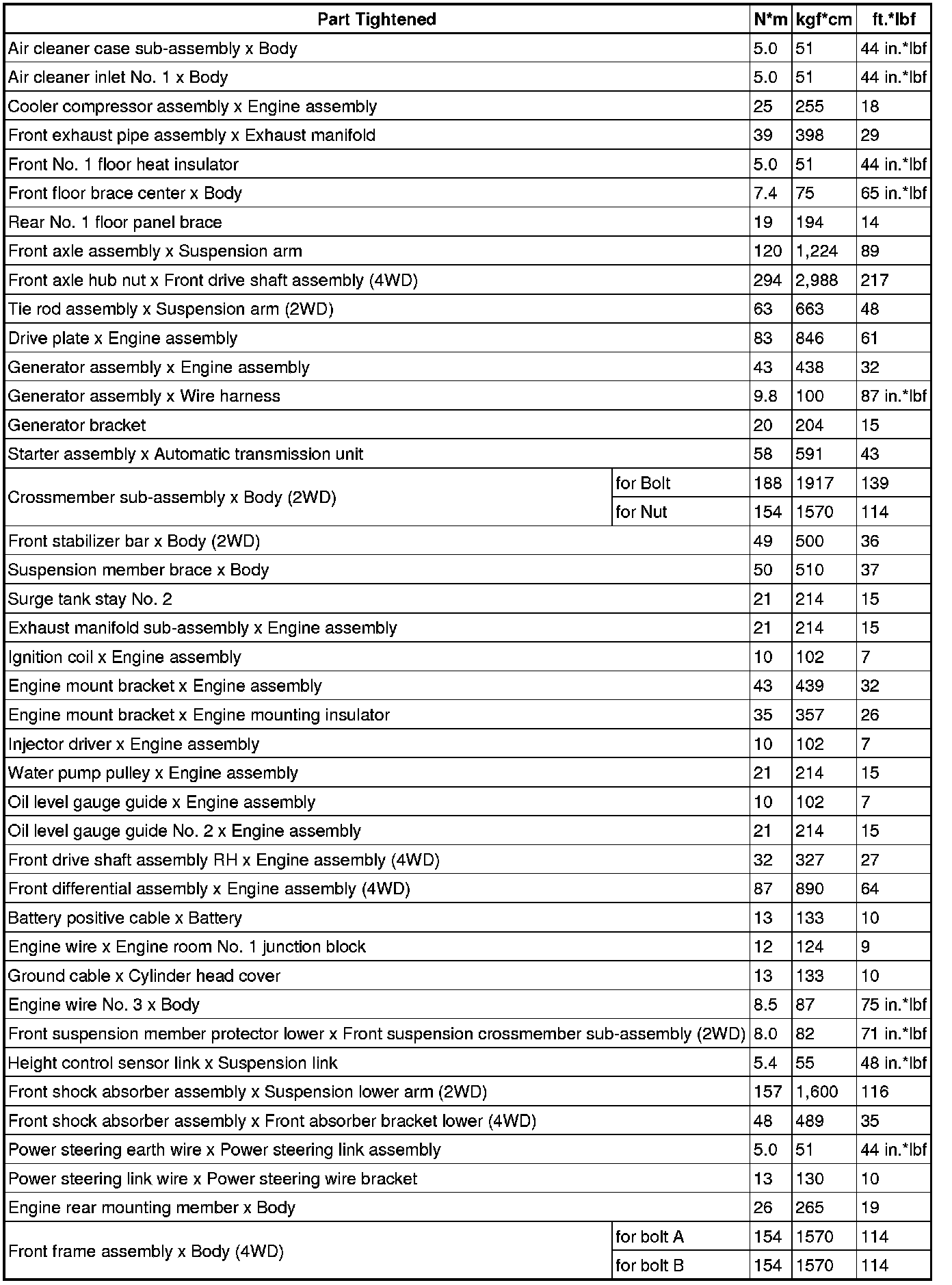

ENGINE ASSEMBLY

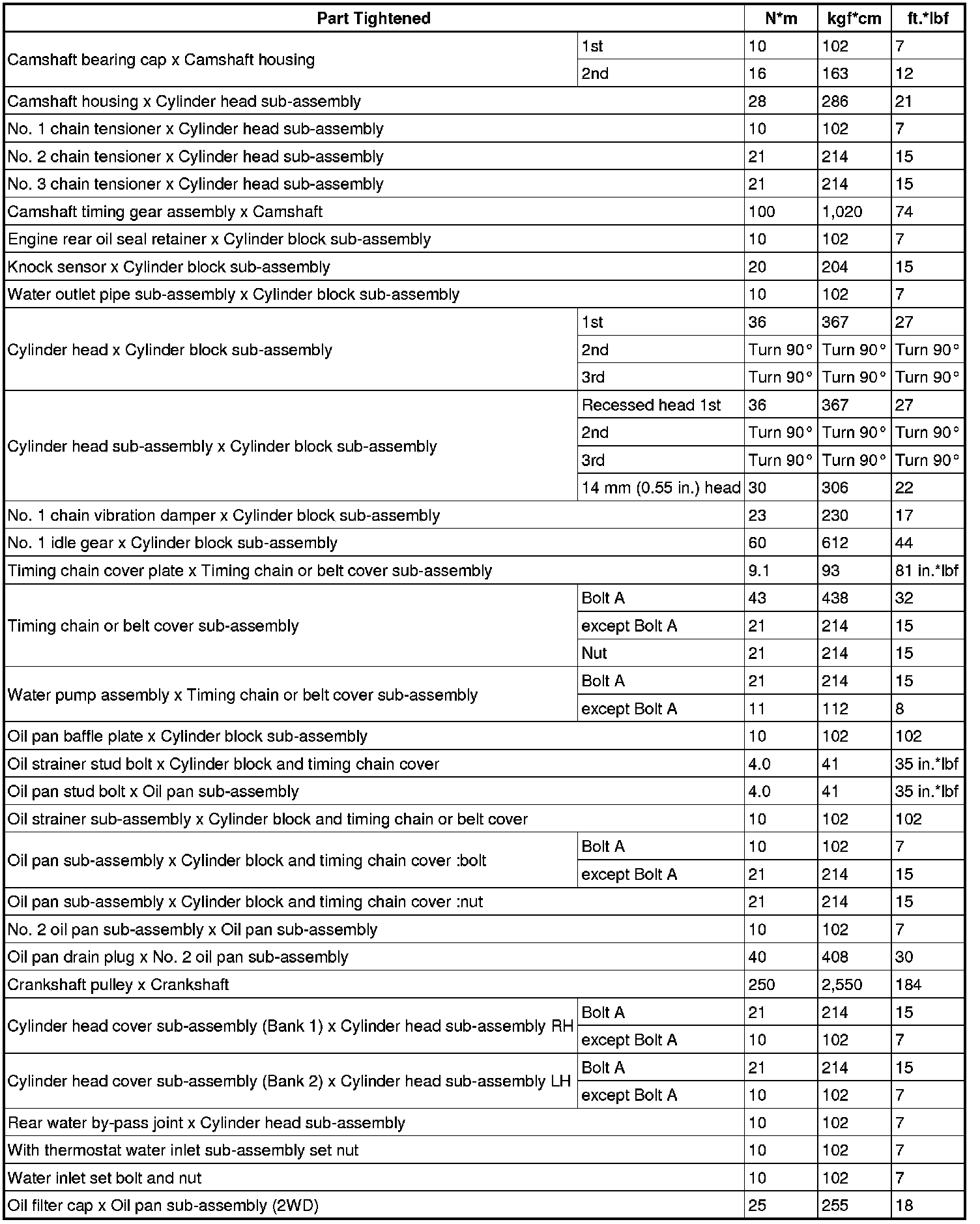

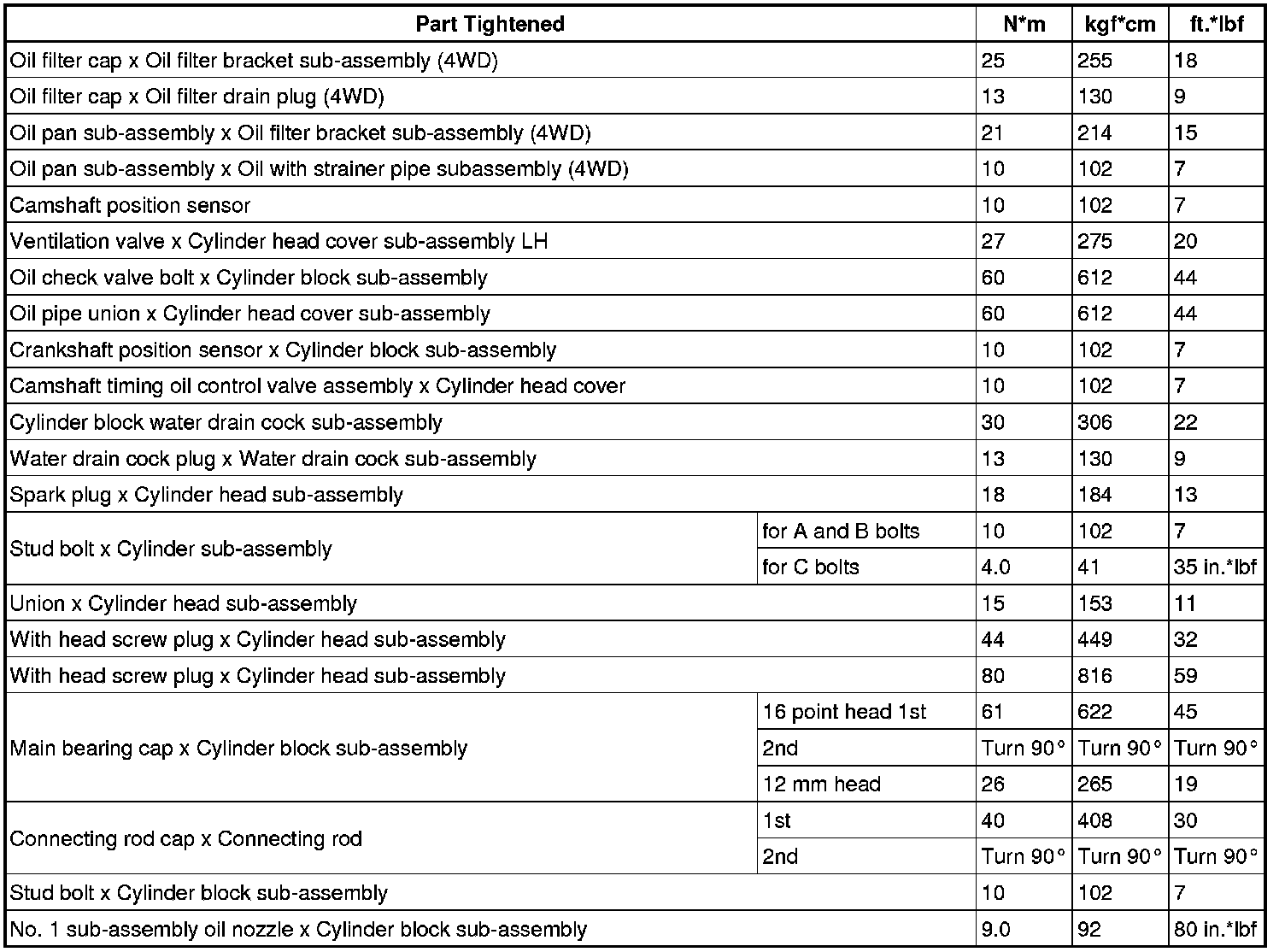

ENGINE UNIT
