IS 250 AWD V6-2.5L (4GR-FSE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Transfer Case
>>
Service and Repair
>>
Removal and Replacement
>>
Components
Components

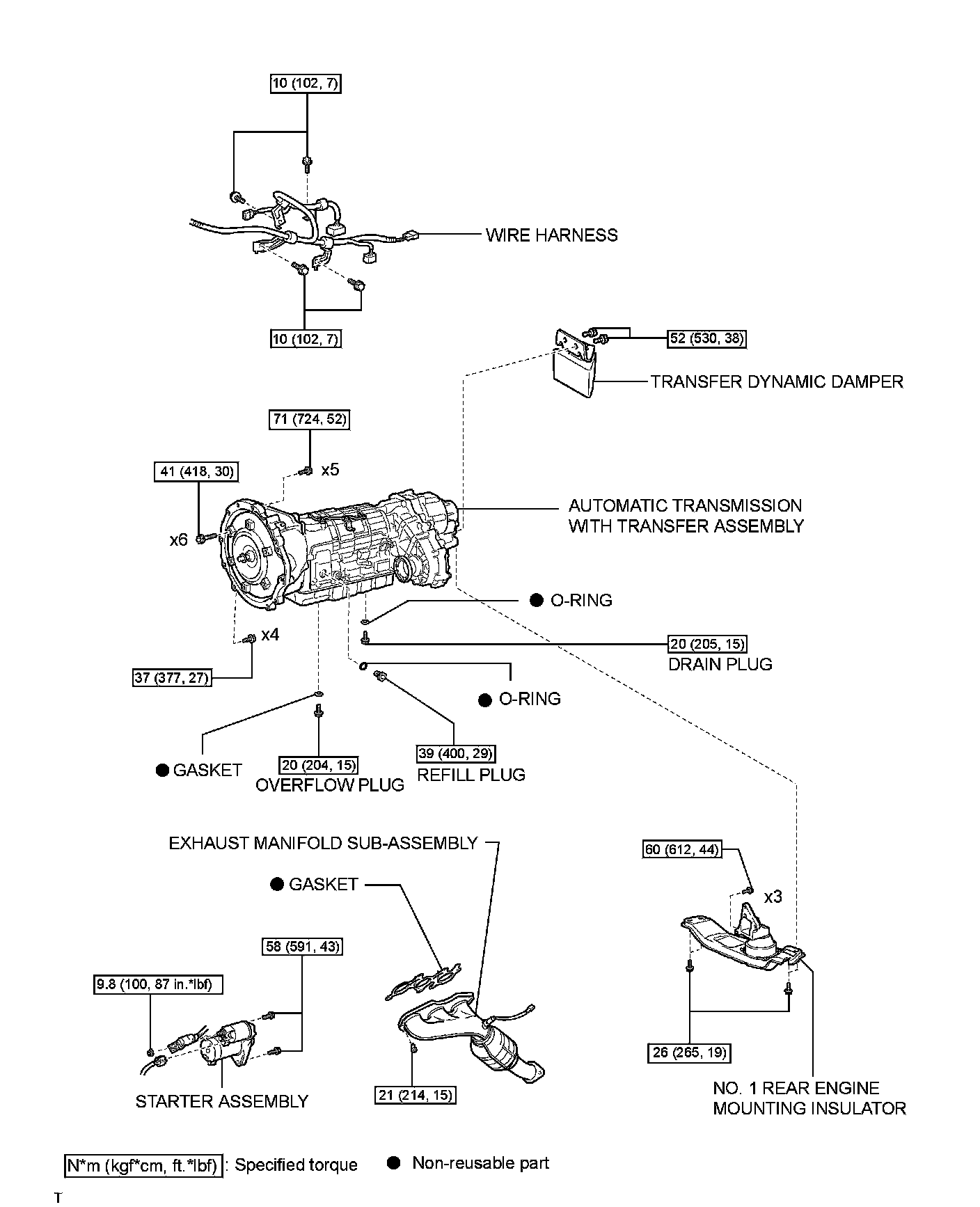

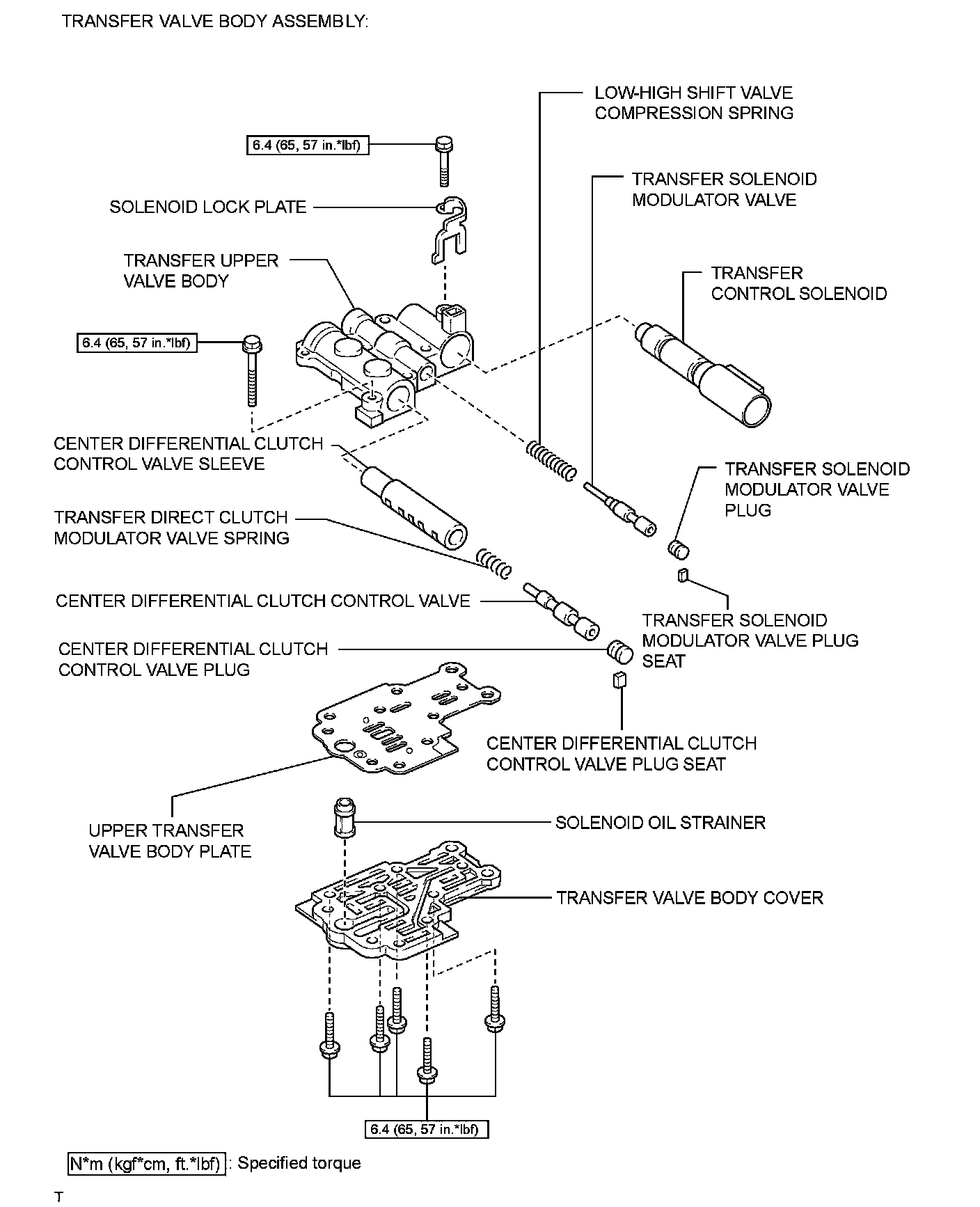

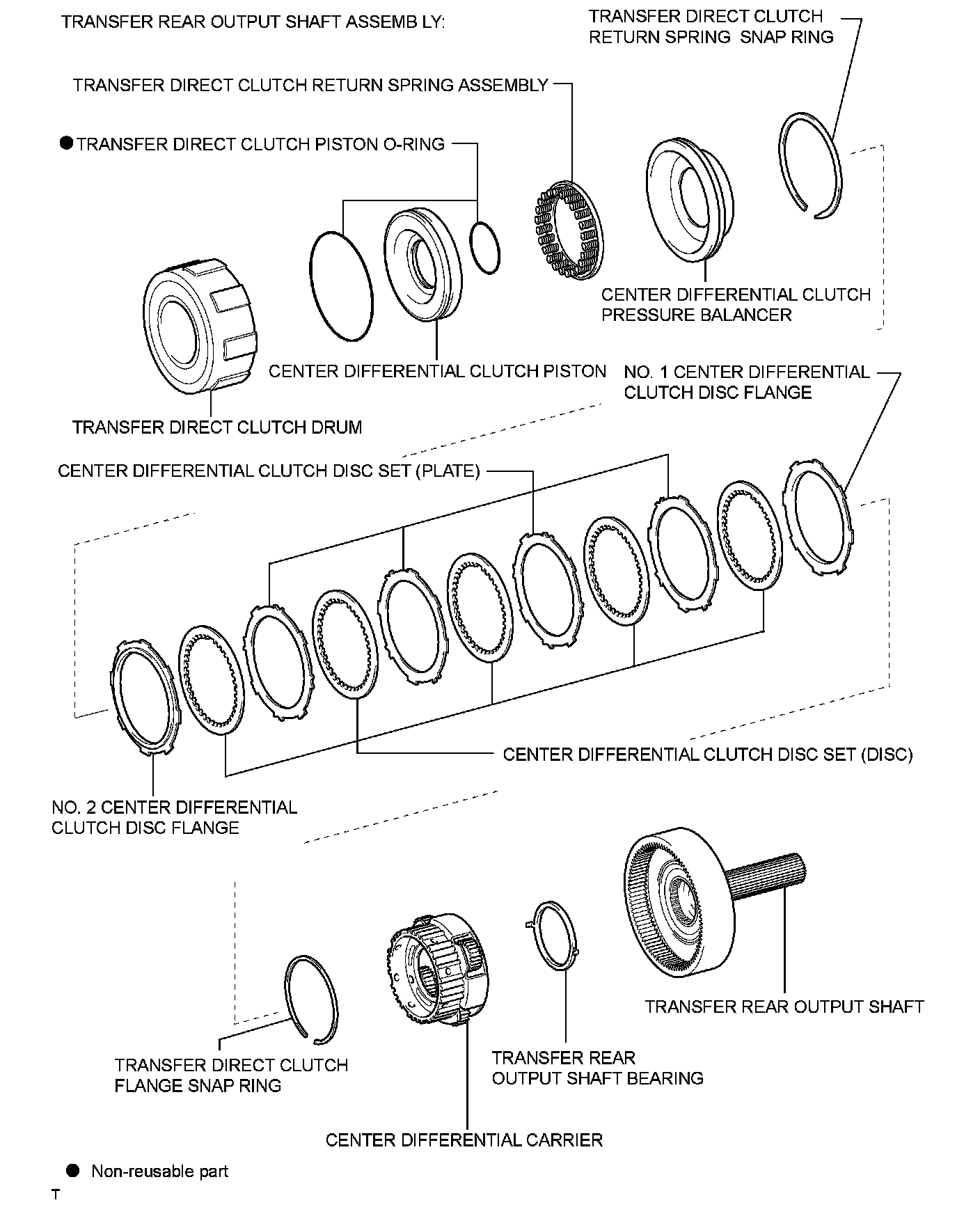

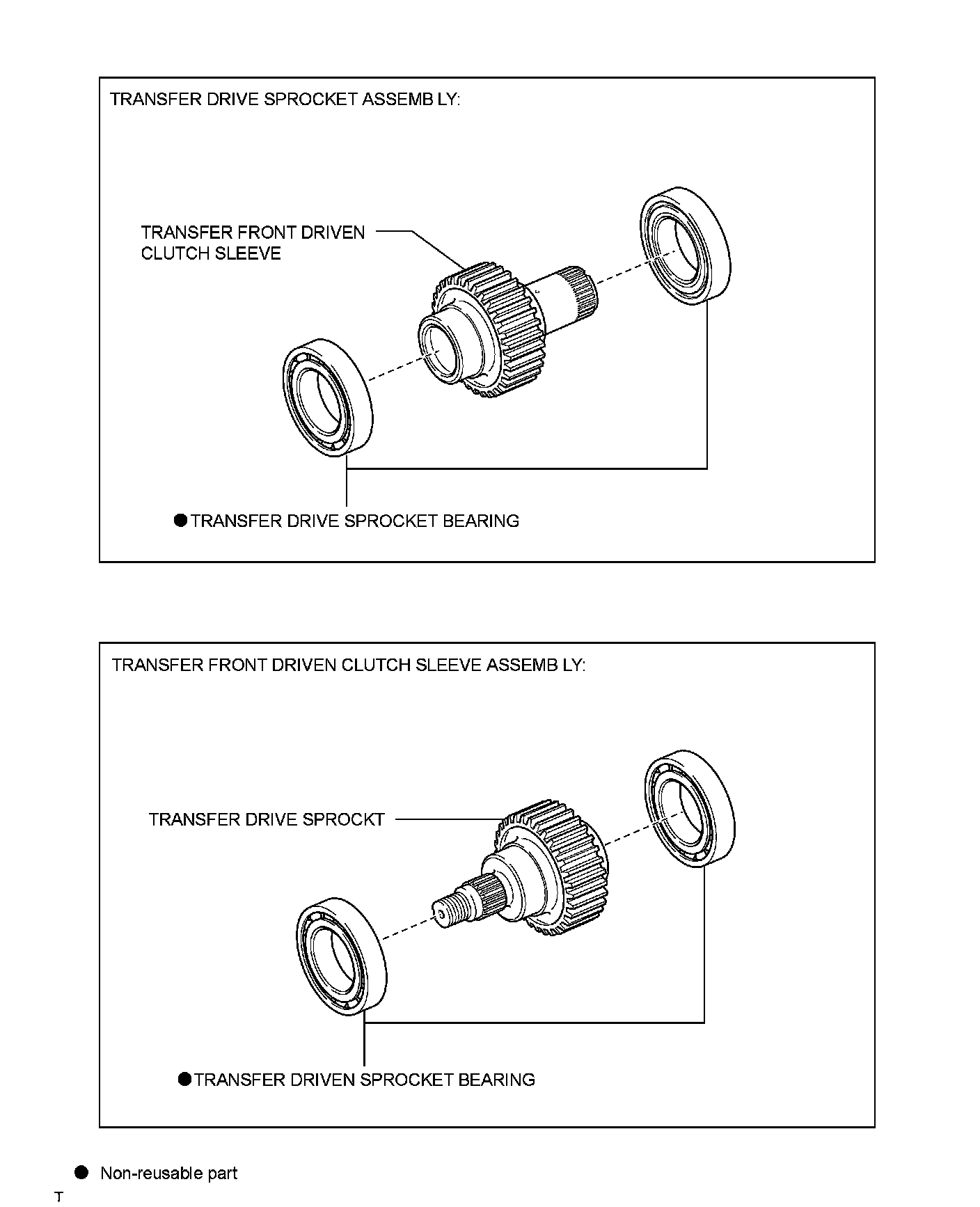

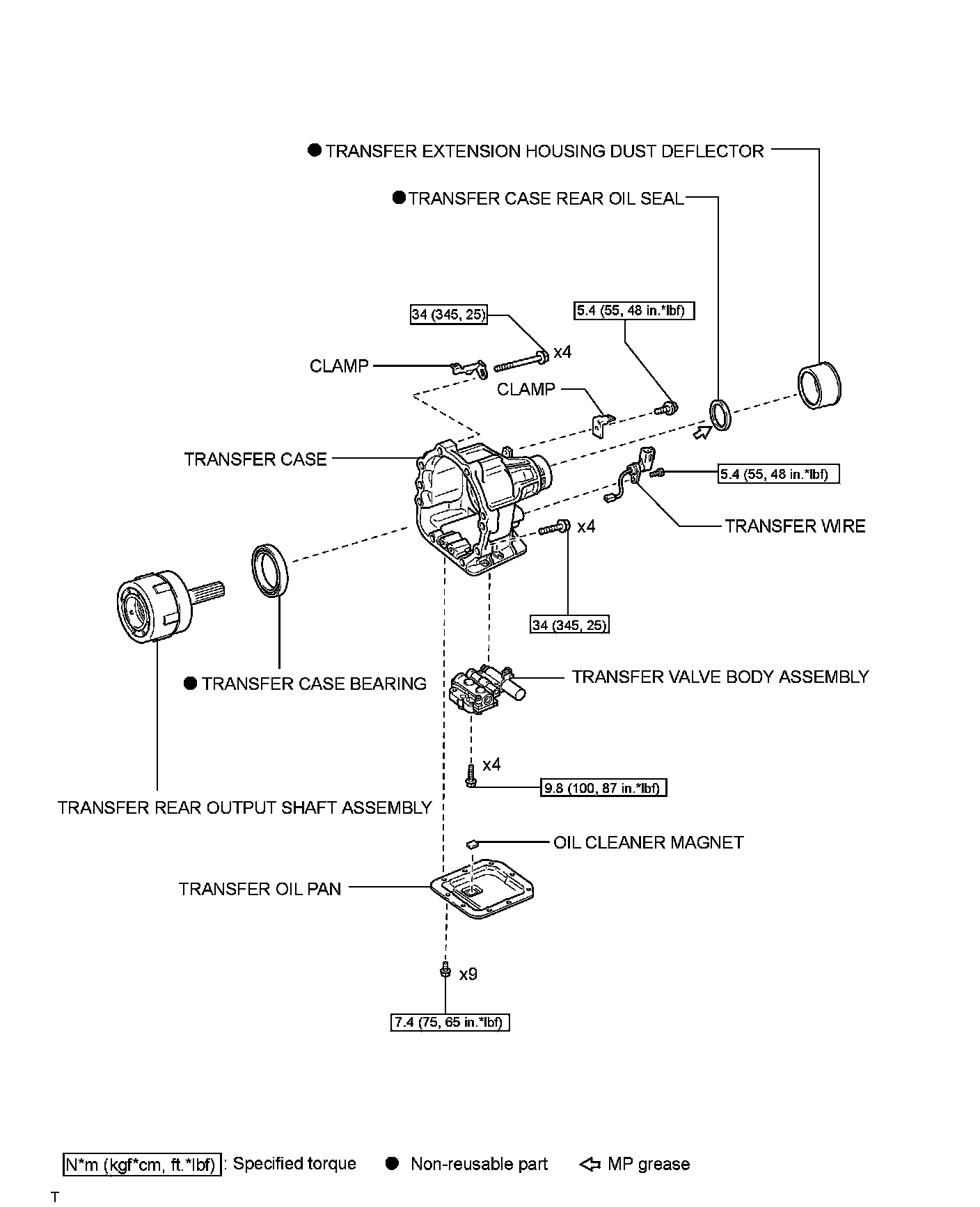

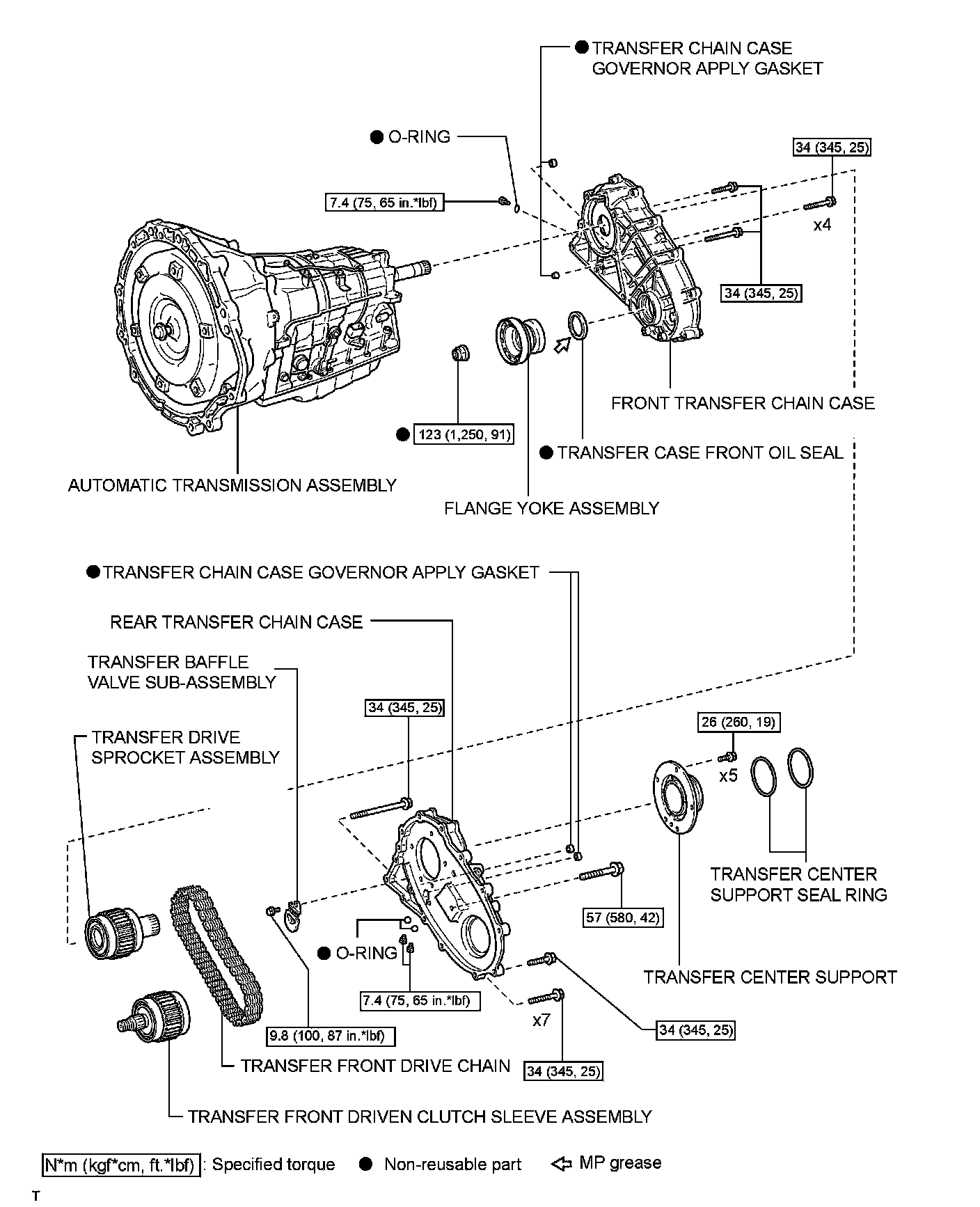

UF1AE TRANSFER: TRANSFER ASSEMBLY: COMPONENTS
