Home
>>
Lexus
>>
2010
>>
SC 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Distribution Module
>>

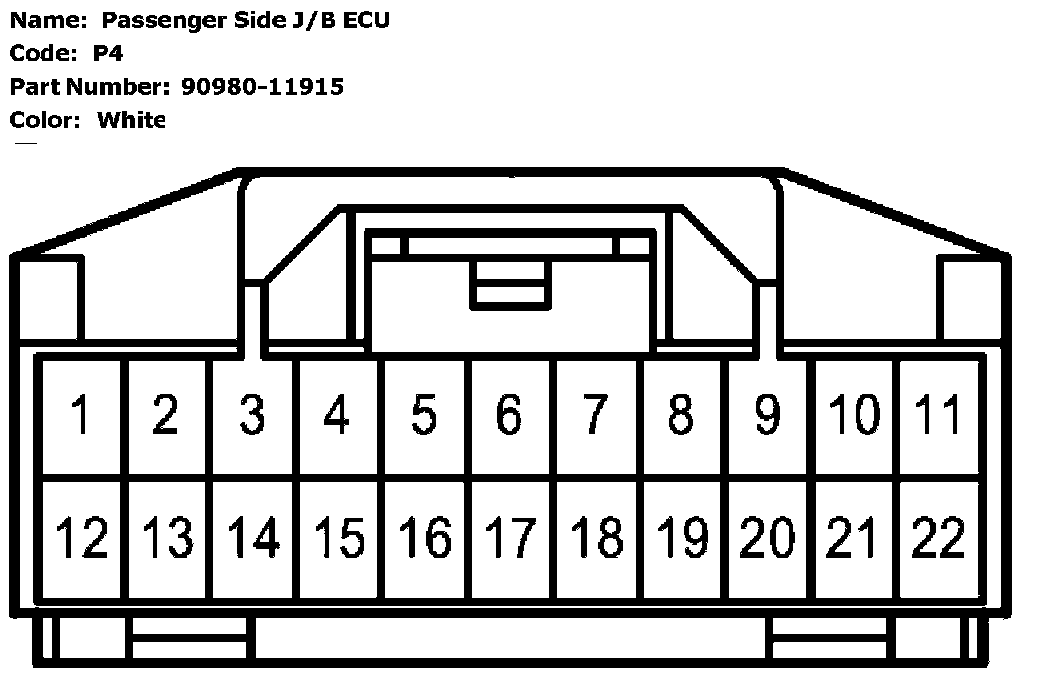

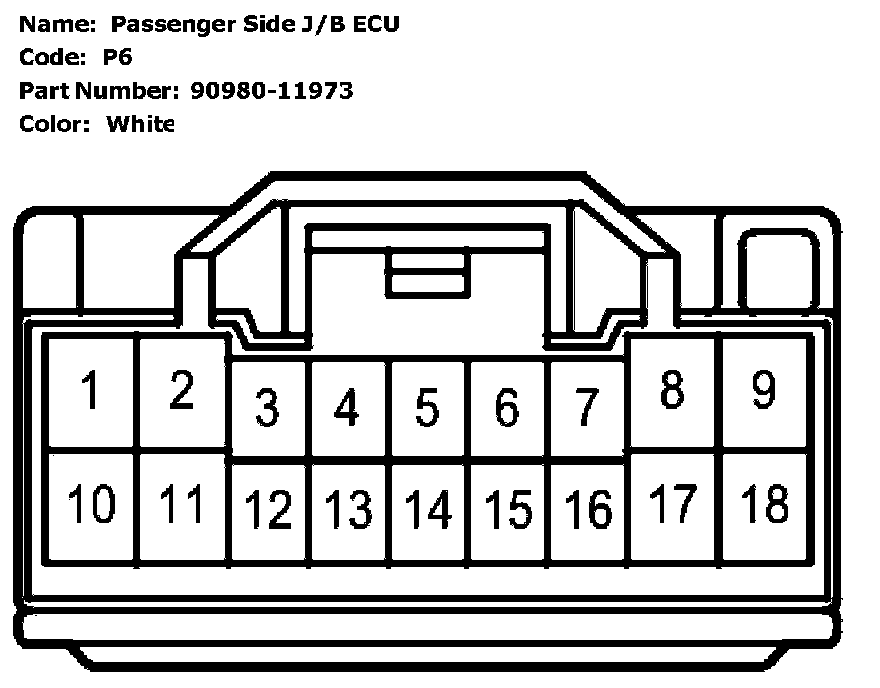

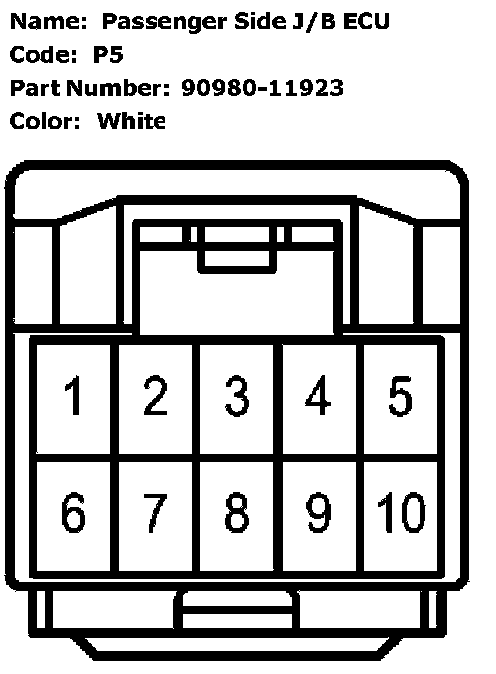

Passenger Side J/B ECU
Passenger Side J/B ECU
