Lexus
>>
2010
>>
SC 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Navigation System
>>
System Diagram
>>

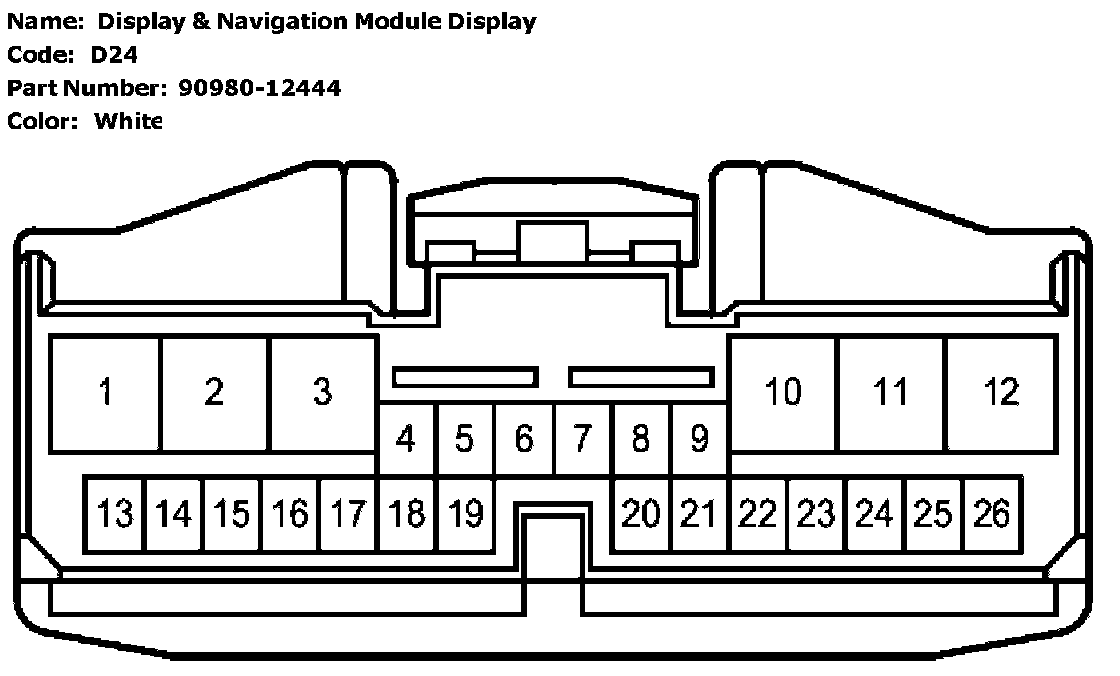

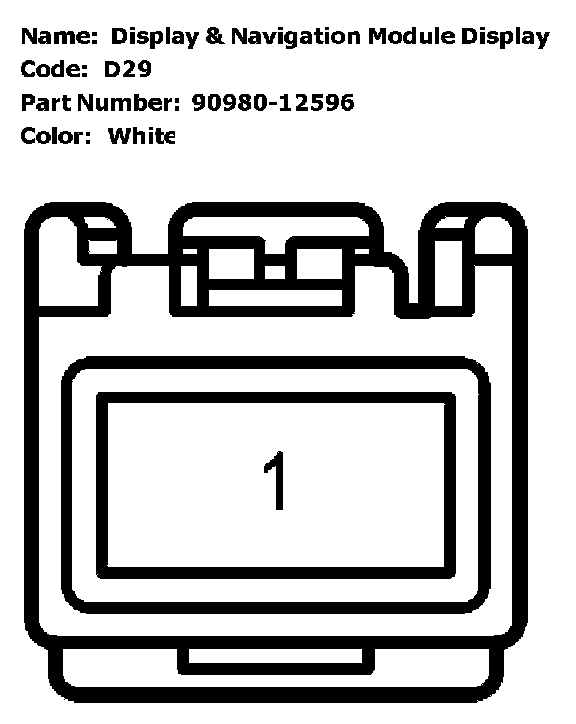

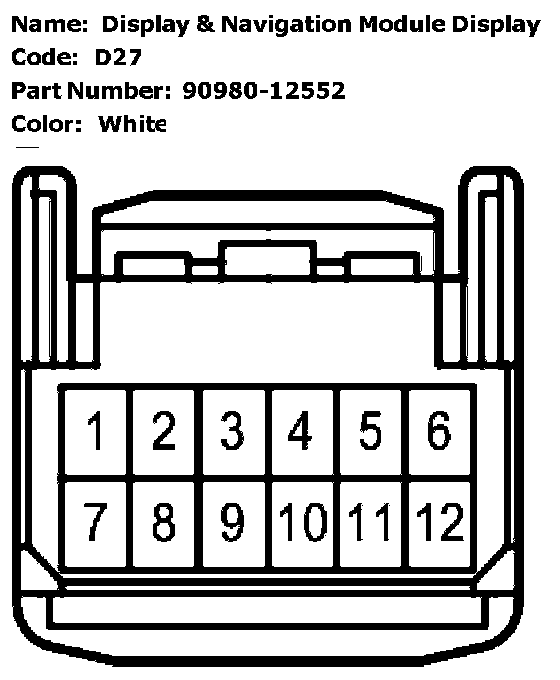

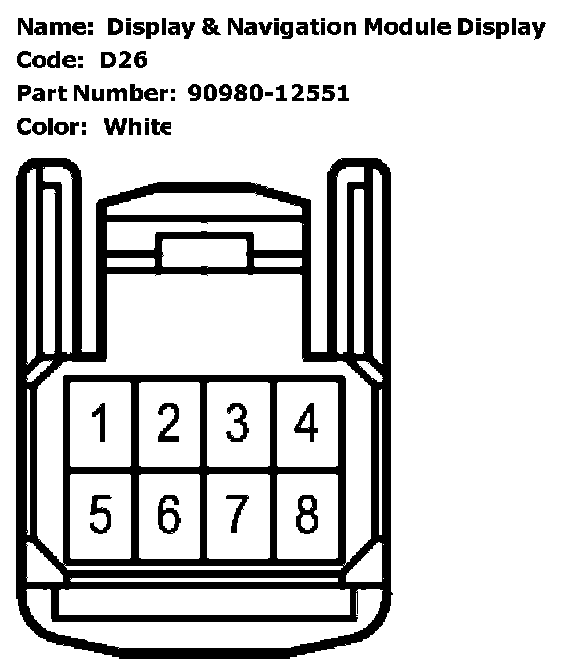

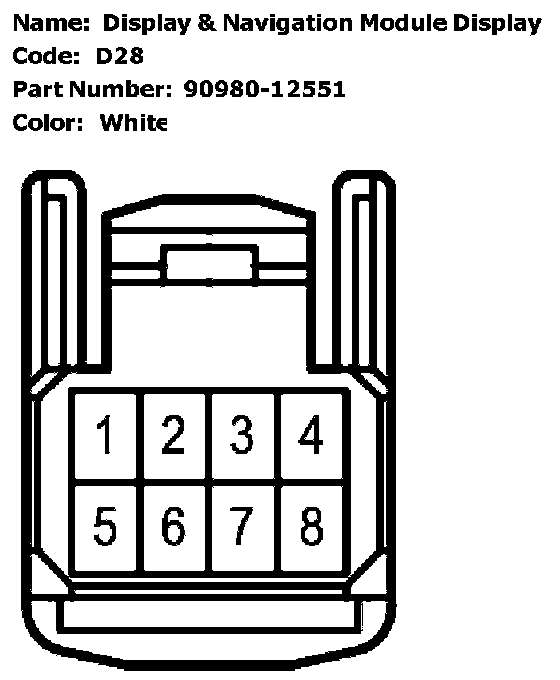

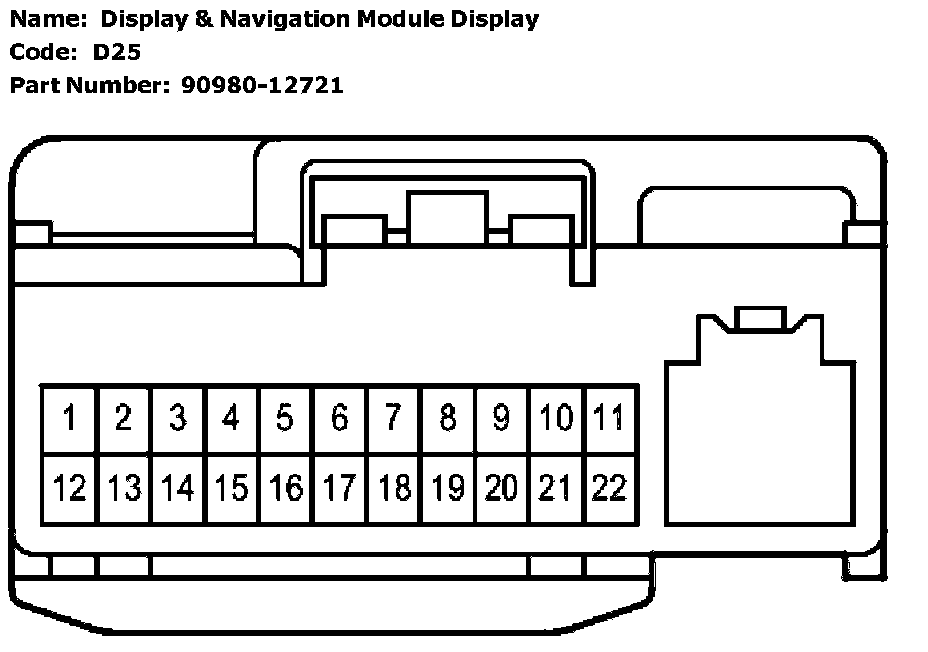

Display and Navigation Module Display
Display and Navigation Module Display
