Ride Height Sensor, Suspension Control
Ride Height Sensor, Suspension Control

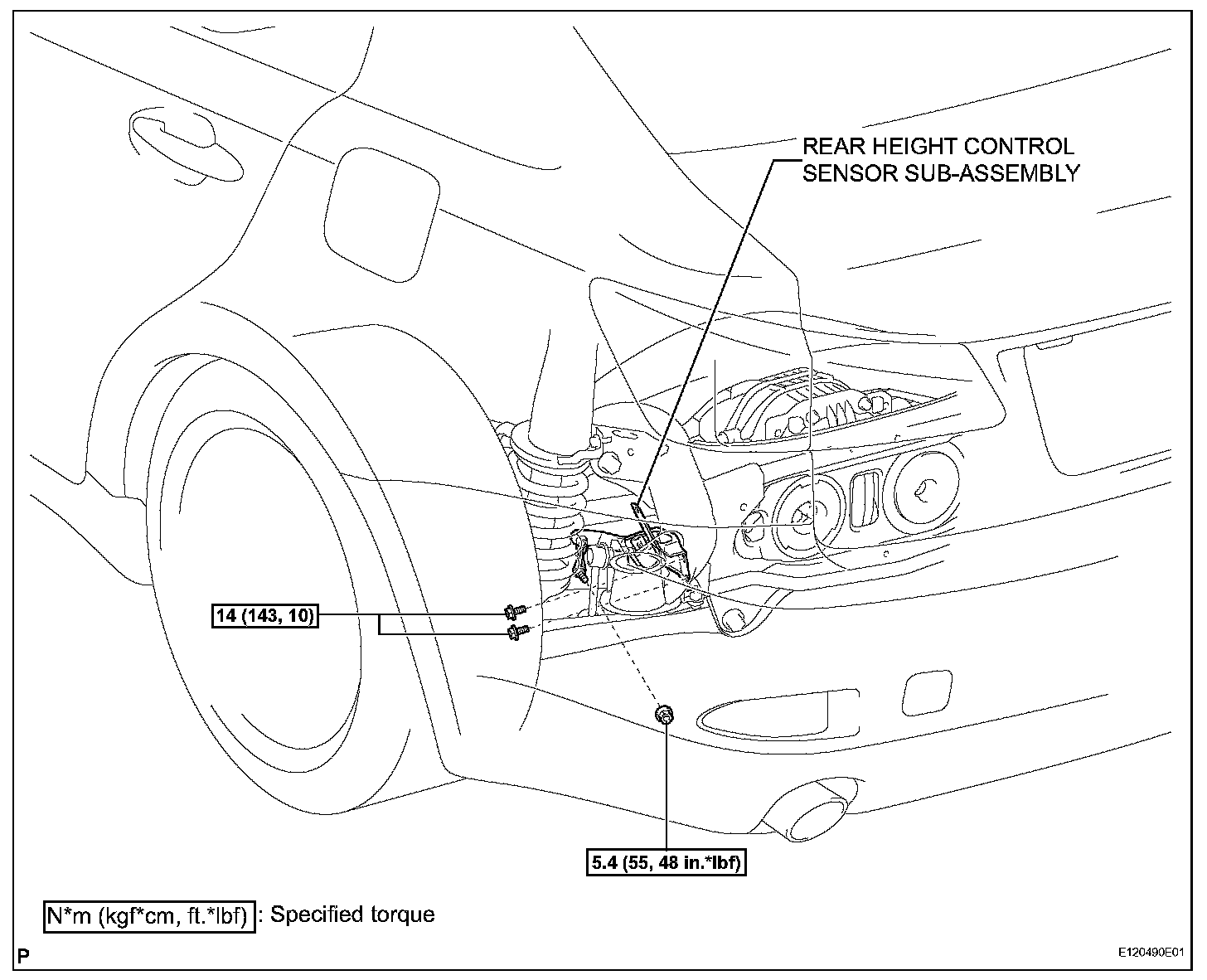

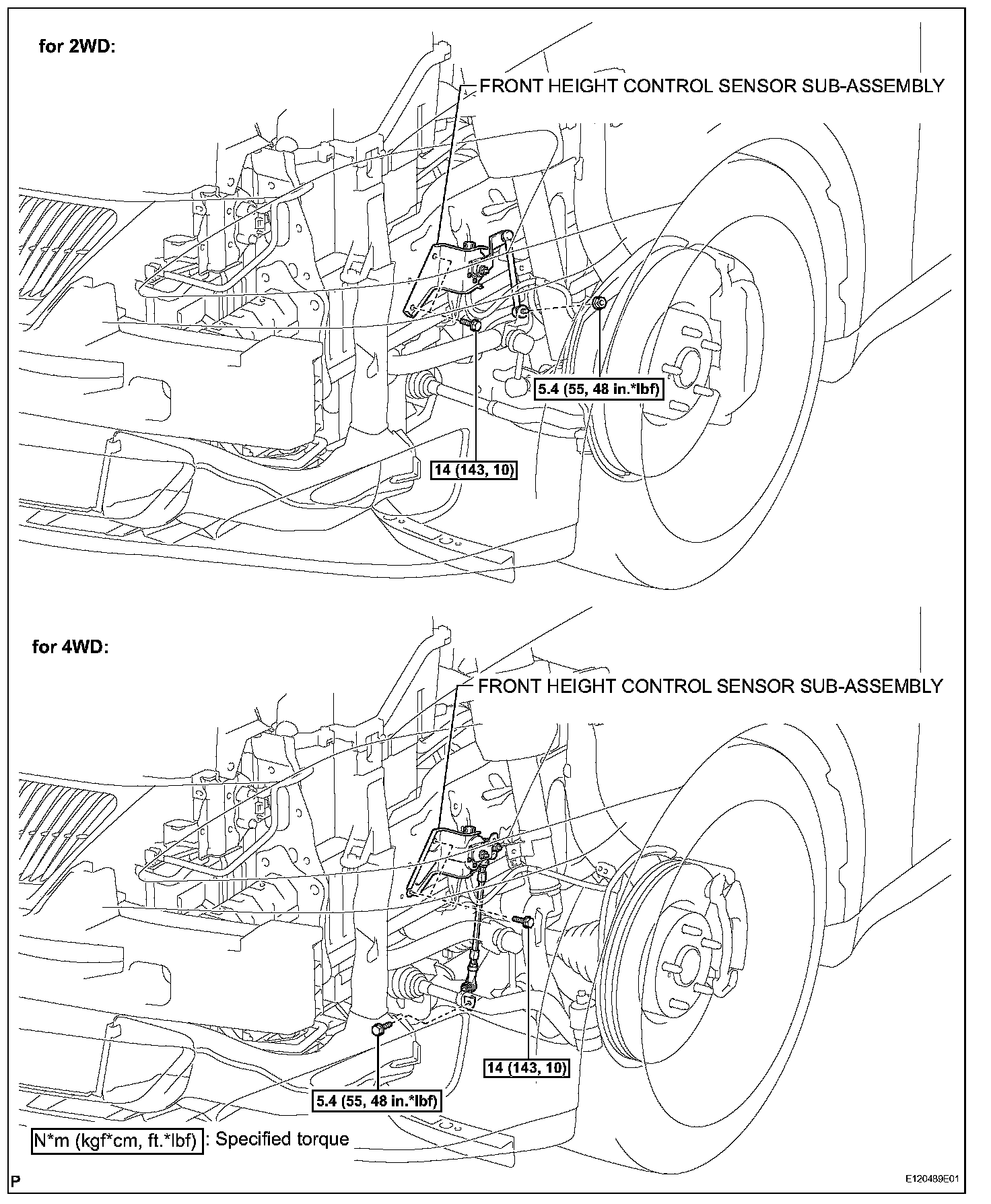

Height Control Sensor:
Height Control Sensor:
