Fuel Injector

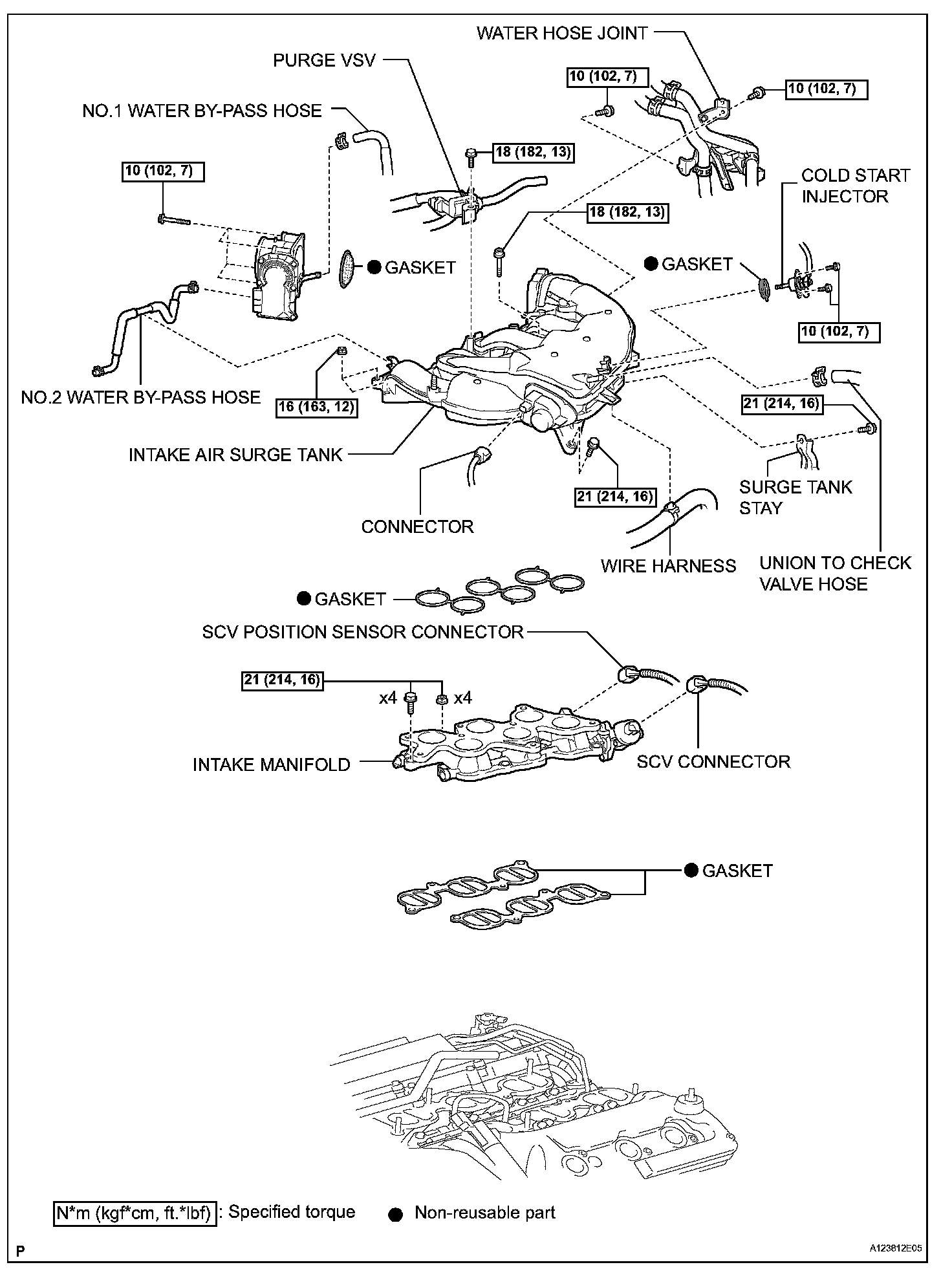

Fuel Injector:

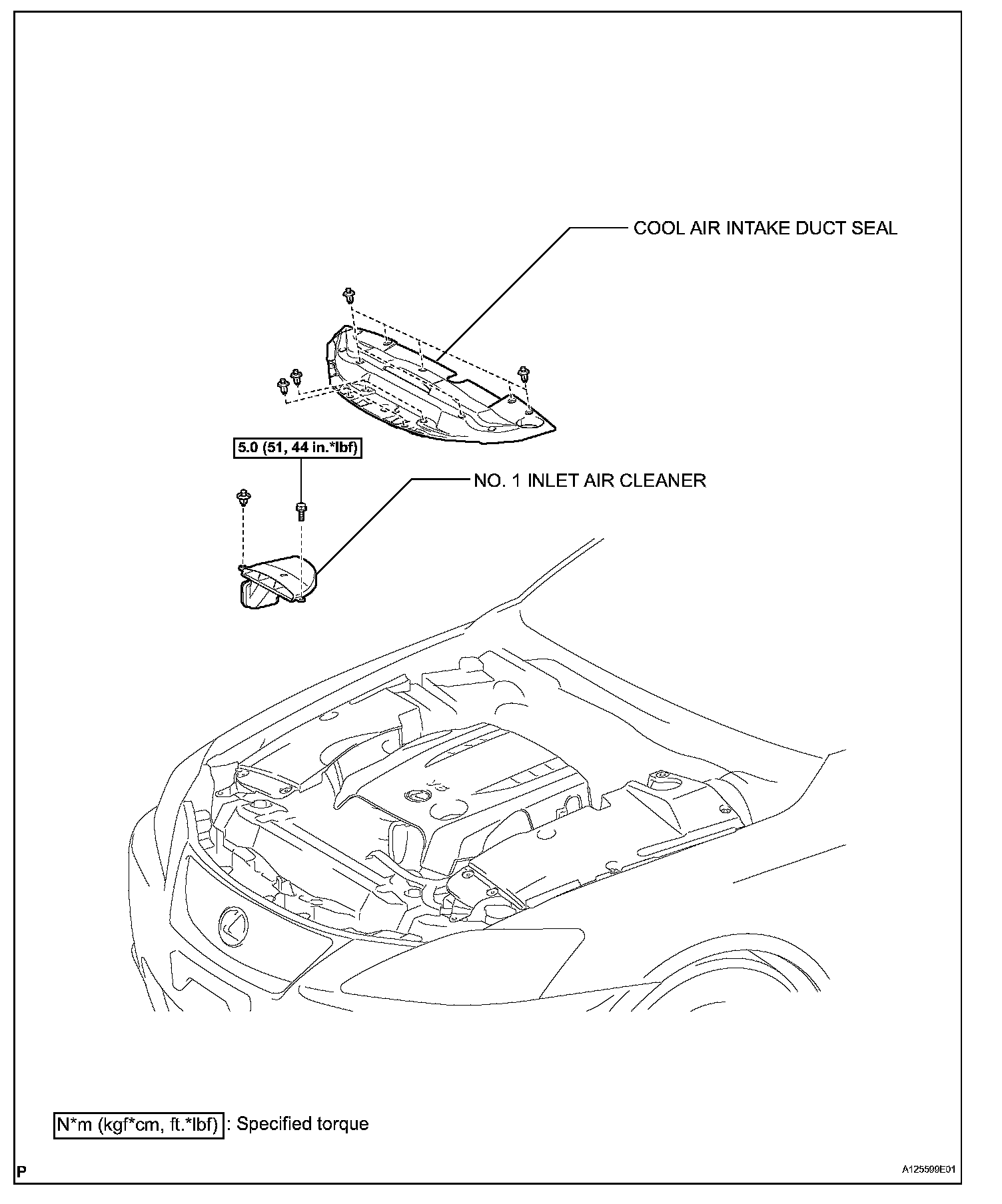

Fuel Injector:

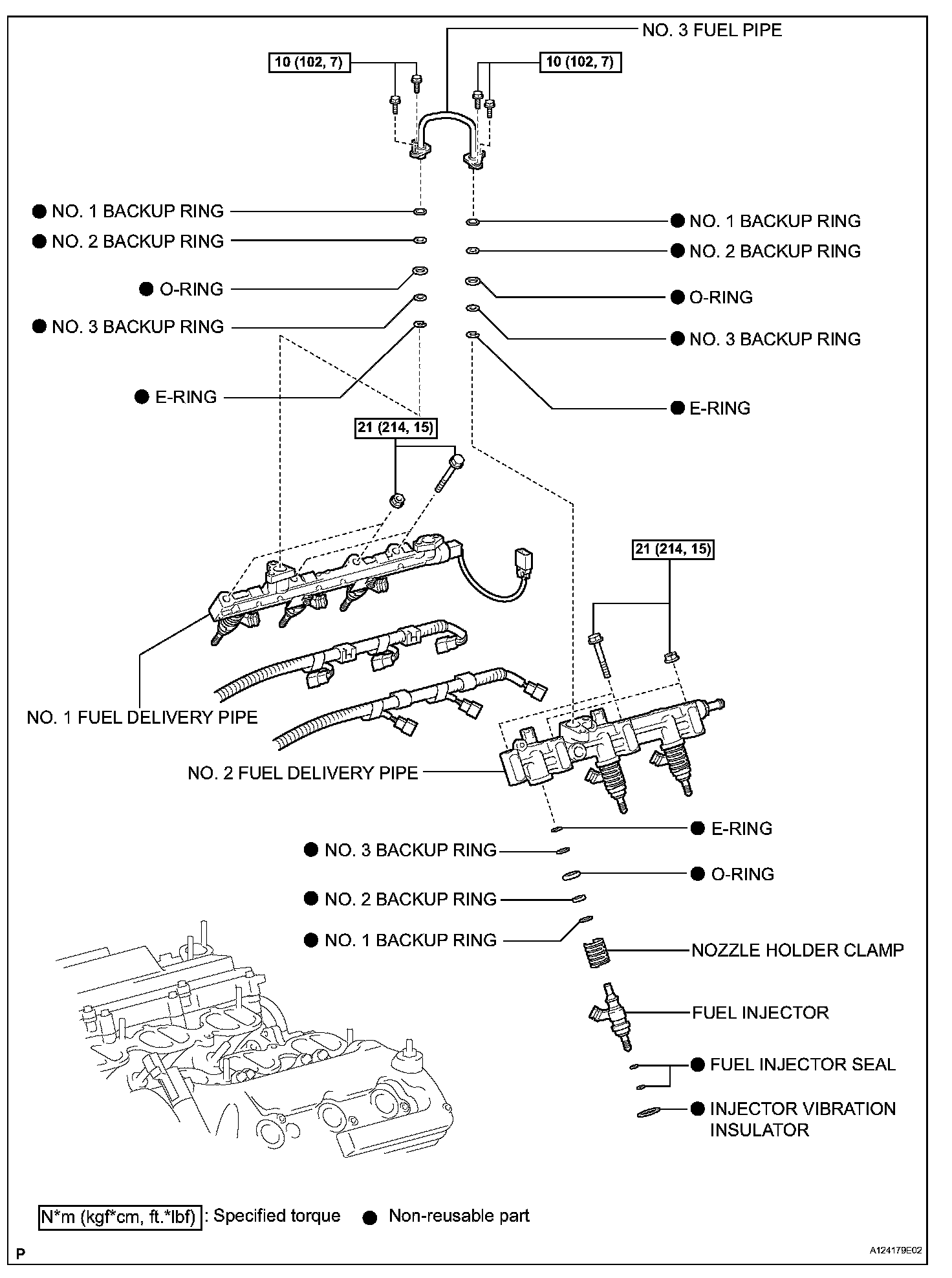

Fuel Injector:

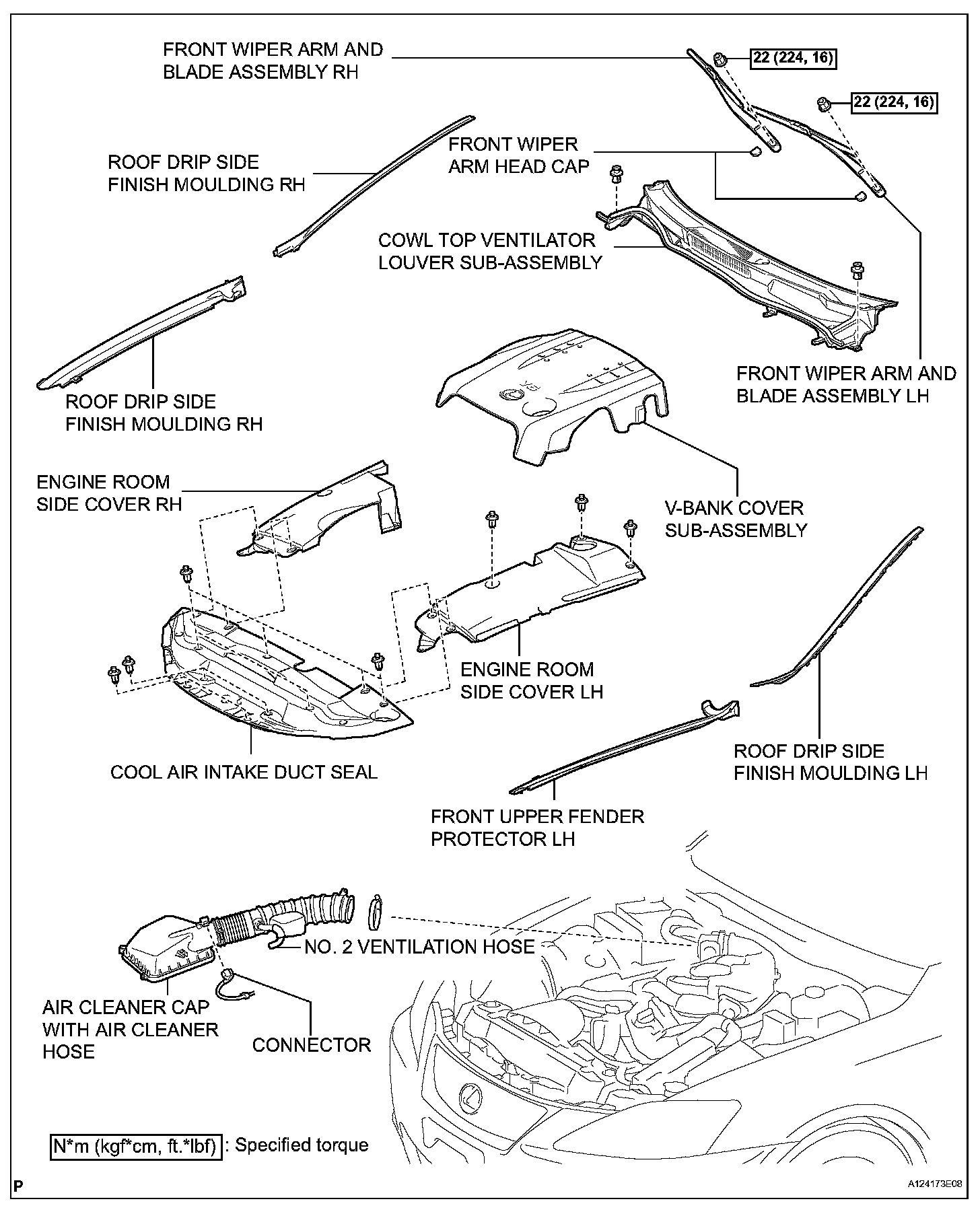

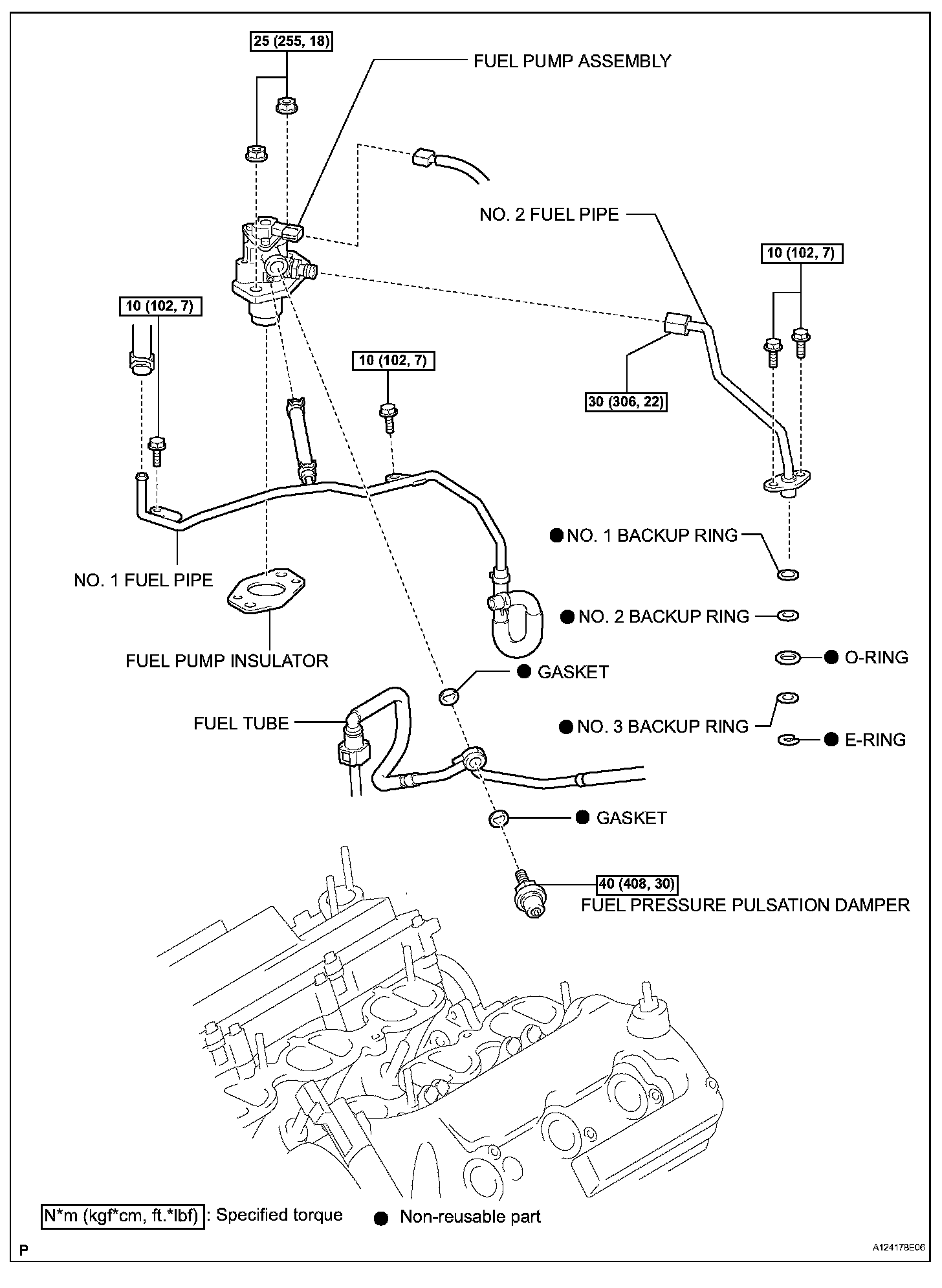

Fuel Injector:

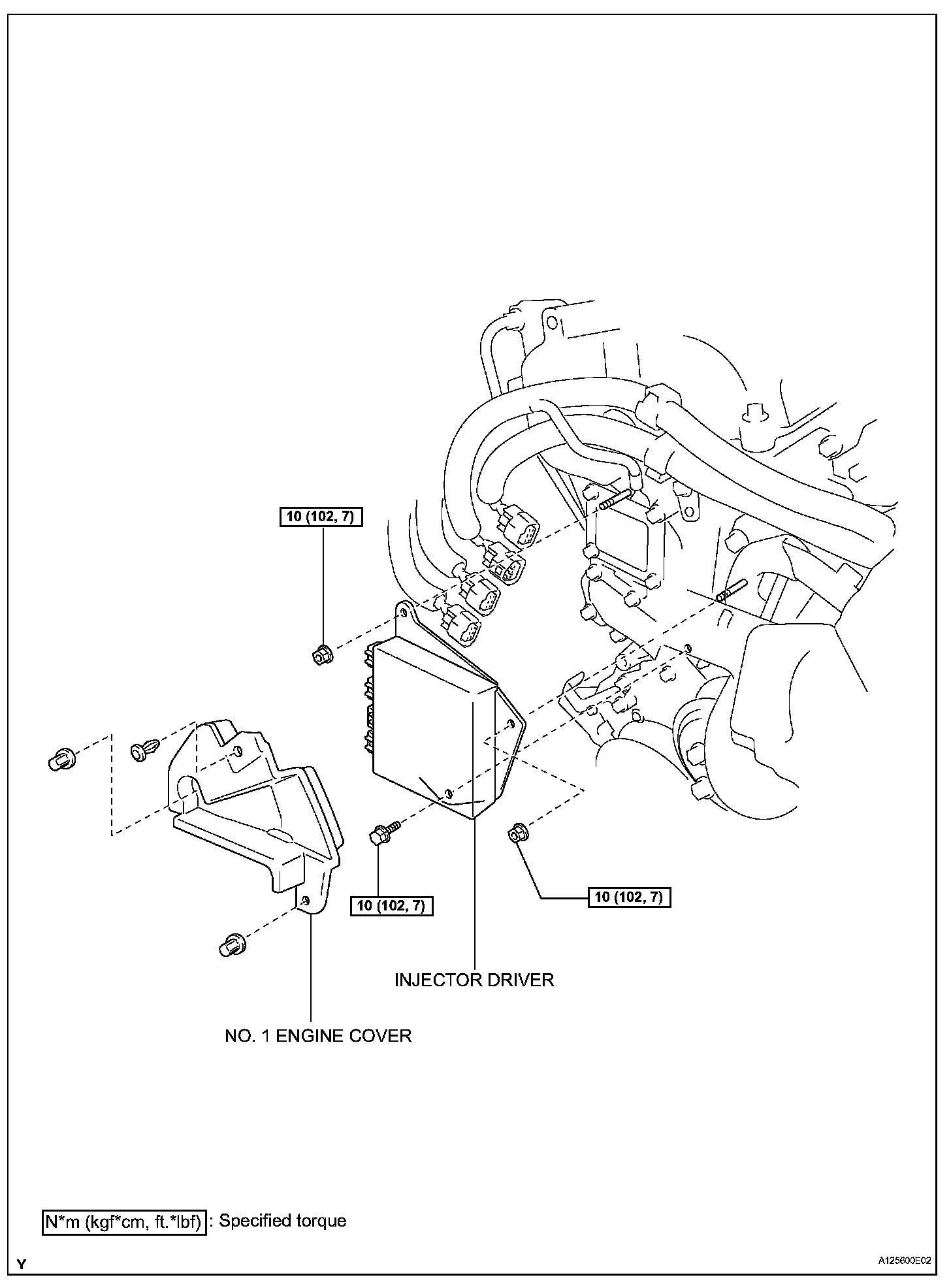

Injector Driver:



Injector Driver:



Injector Driver:



Injector Driver:
