Lexus
>>
2007
>>
IS 250 AWD V6-2.5L (4GR-FSE)
>>
Repair and Diagnosis
>>
Diagrams
>>

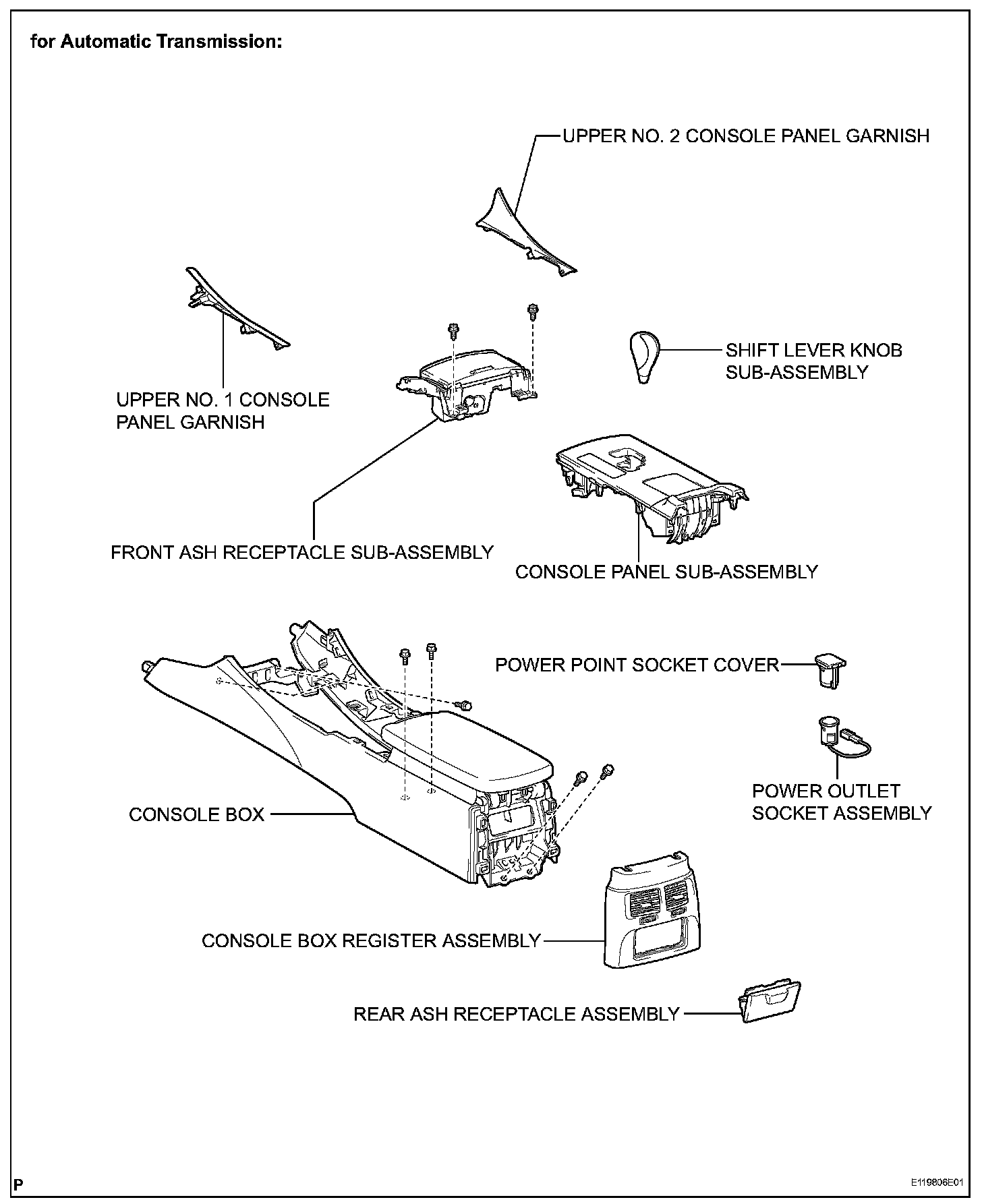

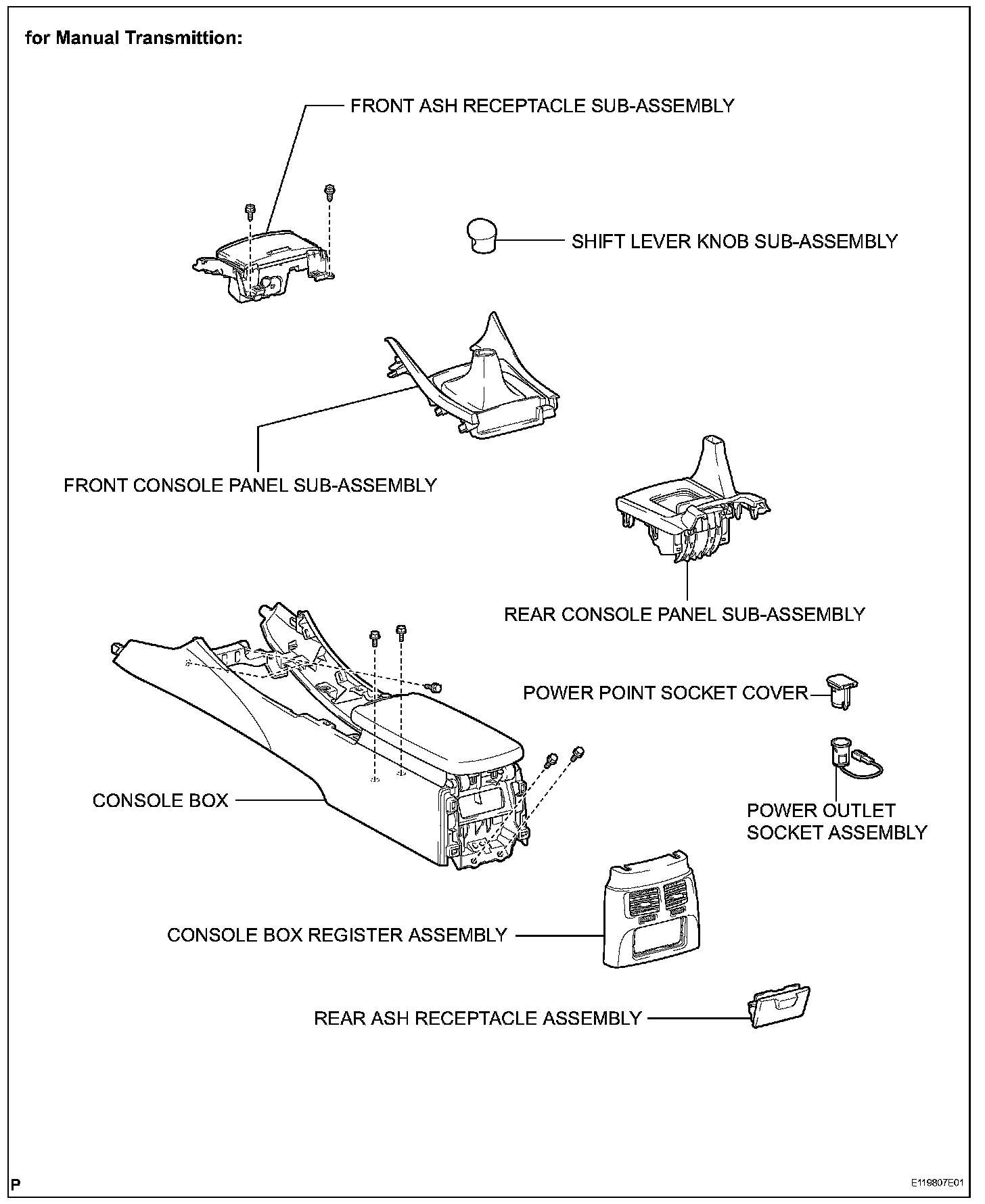

Exploded Views
>>
Auxiliary Power Outlet
Auxiliary Power Outlet
Center Power Outlet Socket:
Center Power Outlet Socket:
