SC 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Trunk / Liftgate
>>
Trunk / Liftgate Hinge
Trunk / Liftgate Hinge

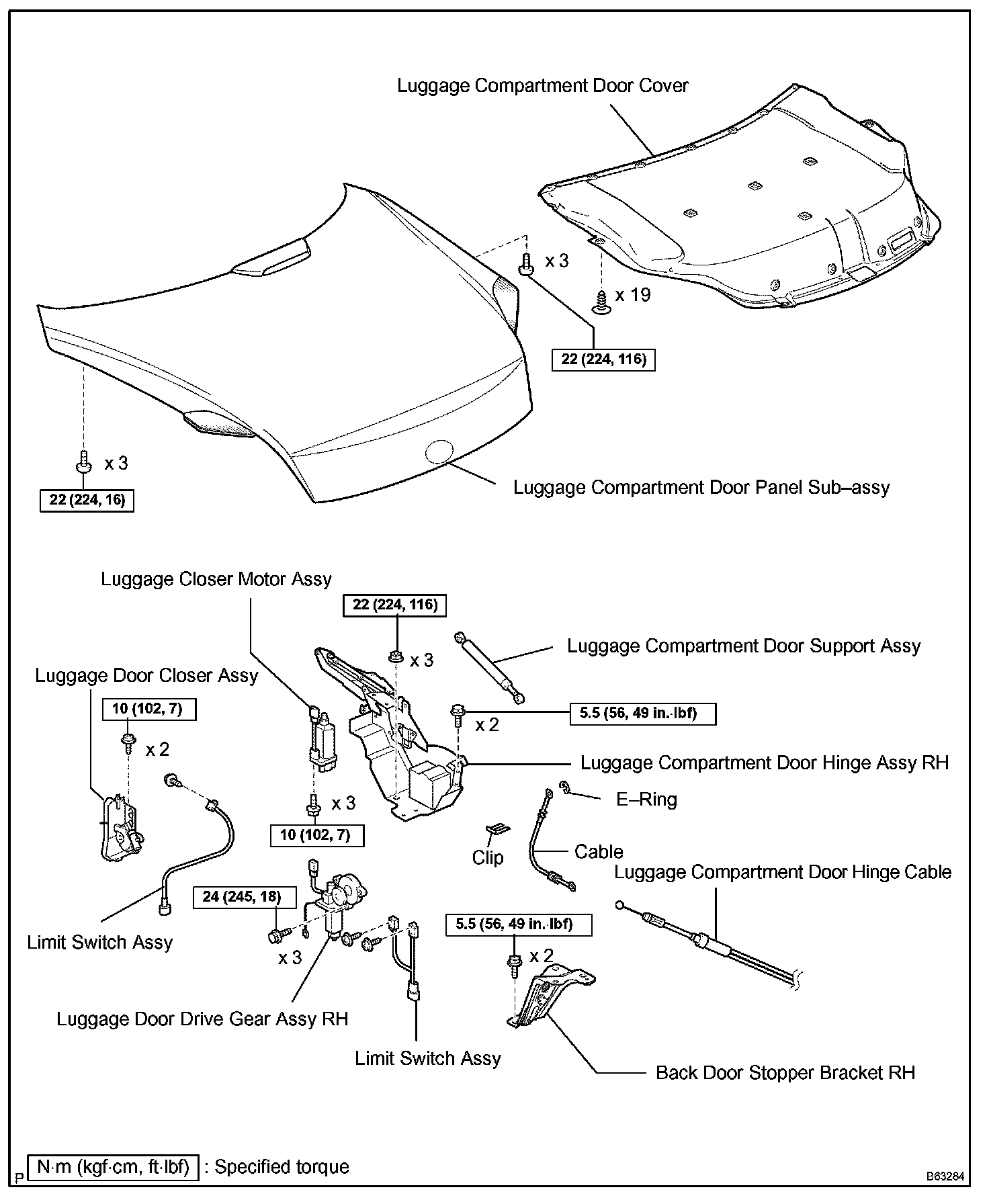

Luggage Compartment Door Hinge Part 1:
Luggage Compartment Door Hinge Part 2:
