Home >> Lexus >> 2005 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Description and Operation

Heating and Air Conditioning: Description and Operation

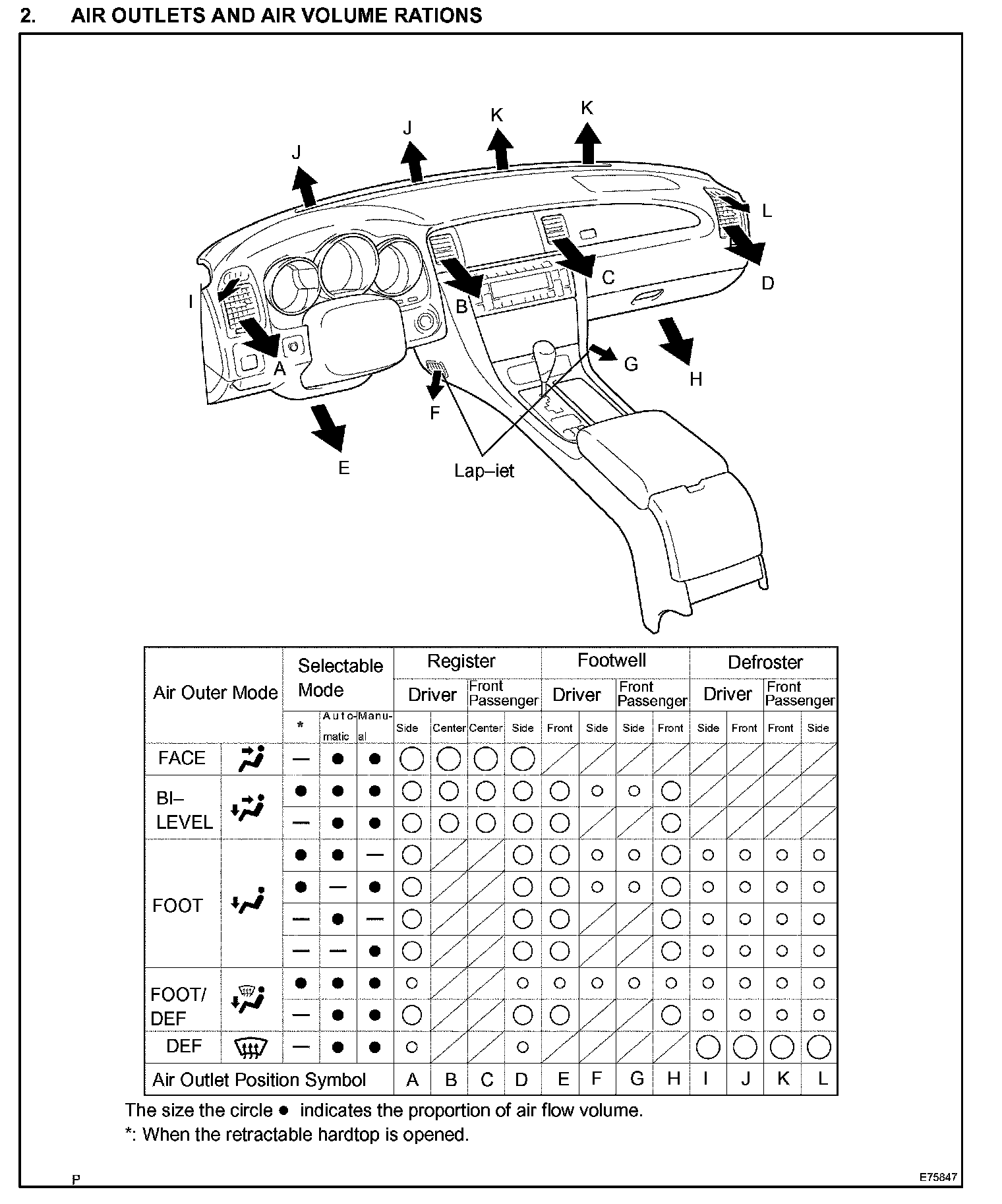

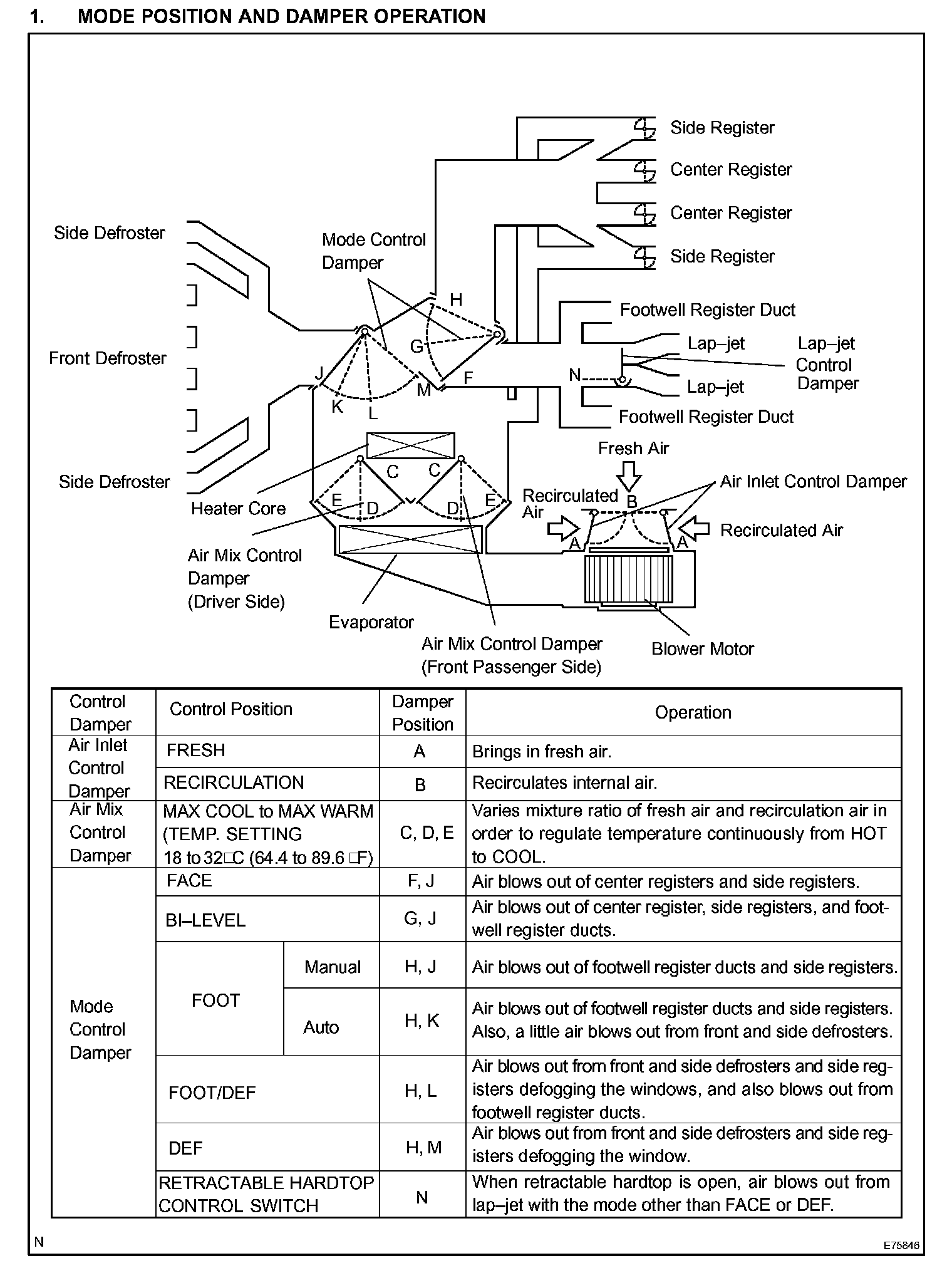

System Diagram:

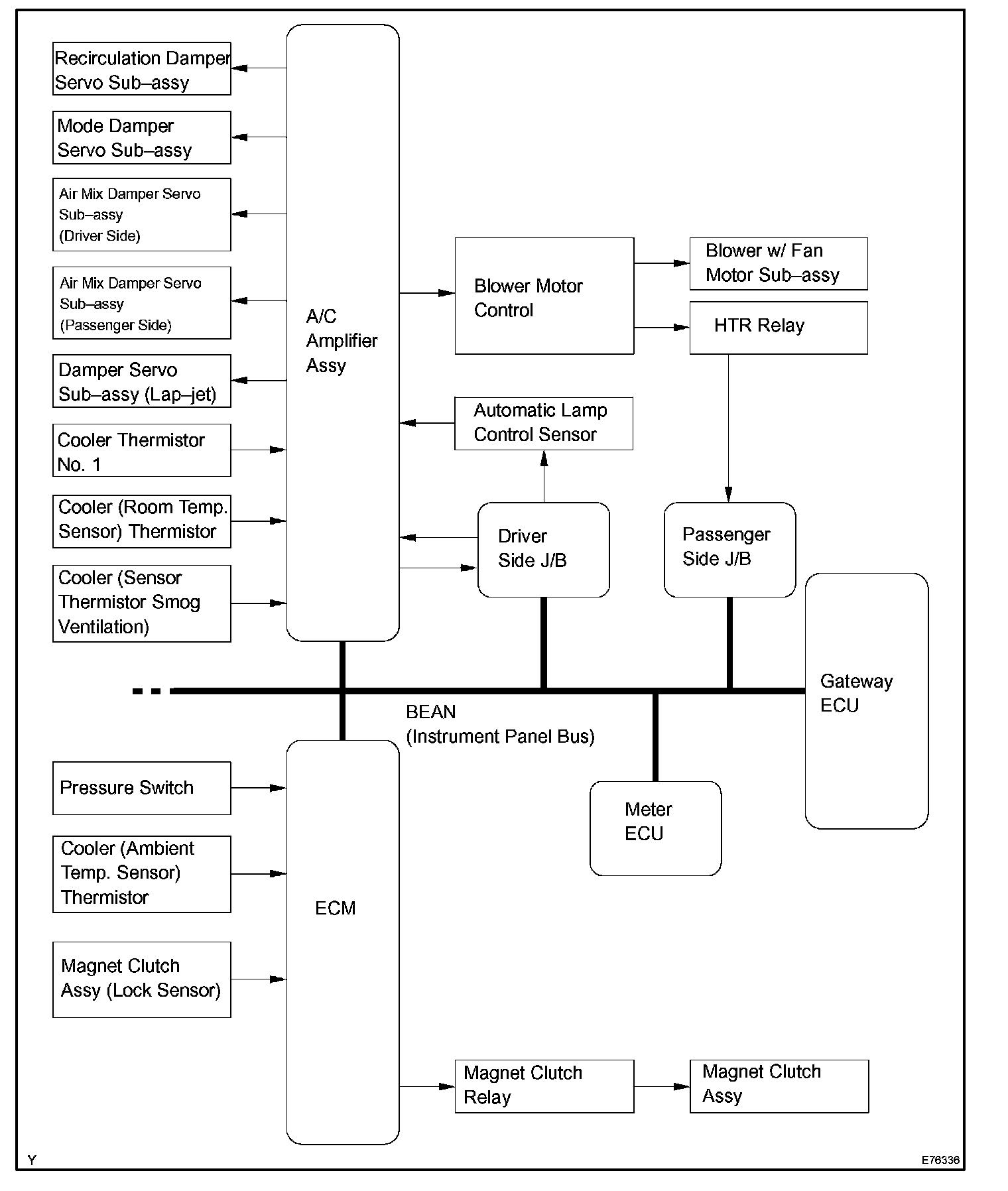

System Diagram:

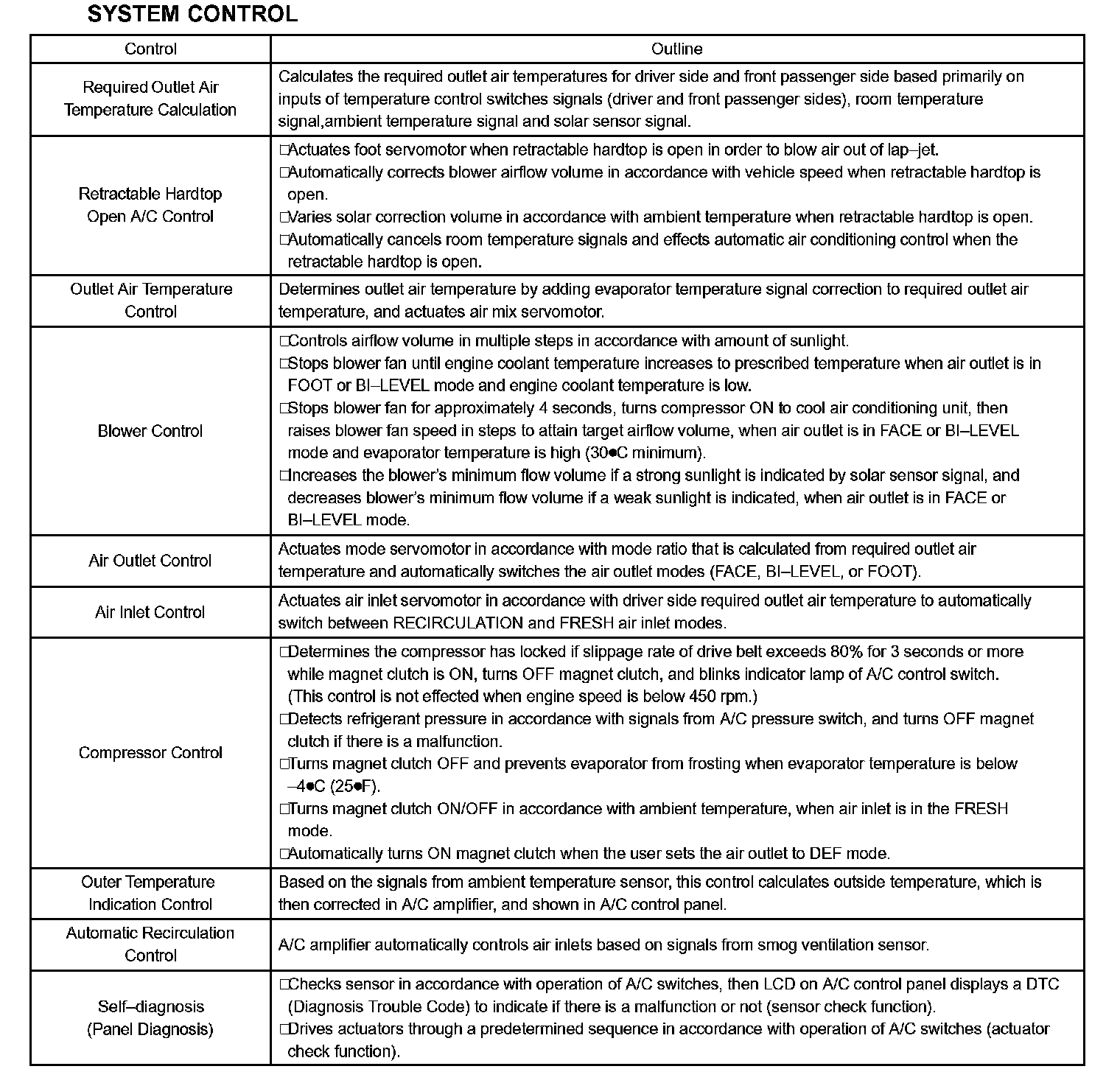

System Diagram:
