Lexus
>>
2004
>>
SC 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>

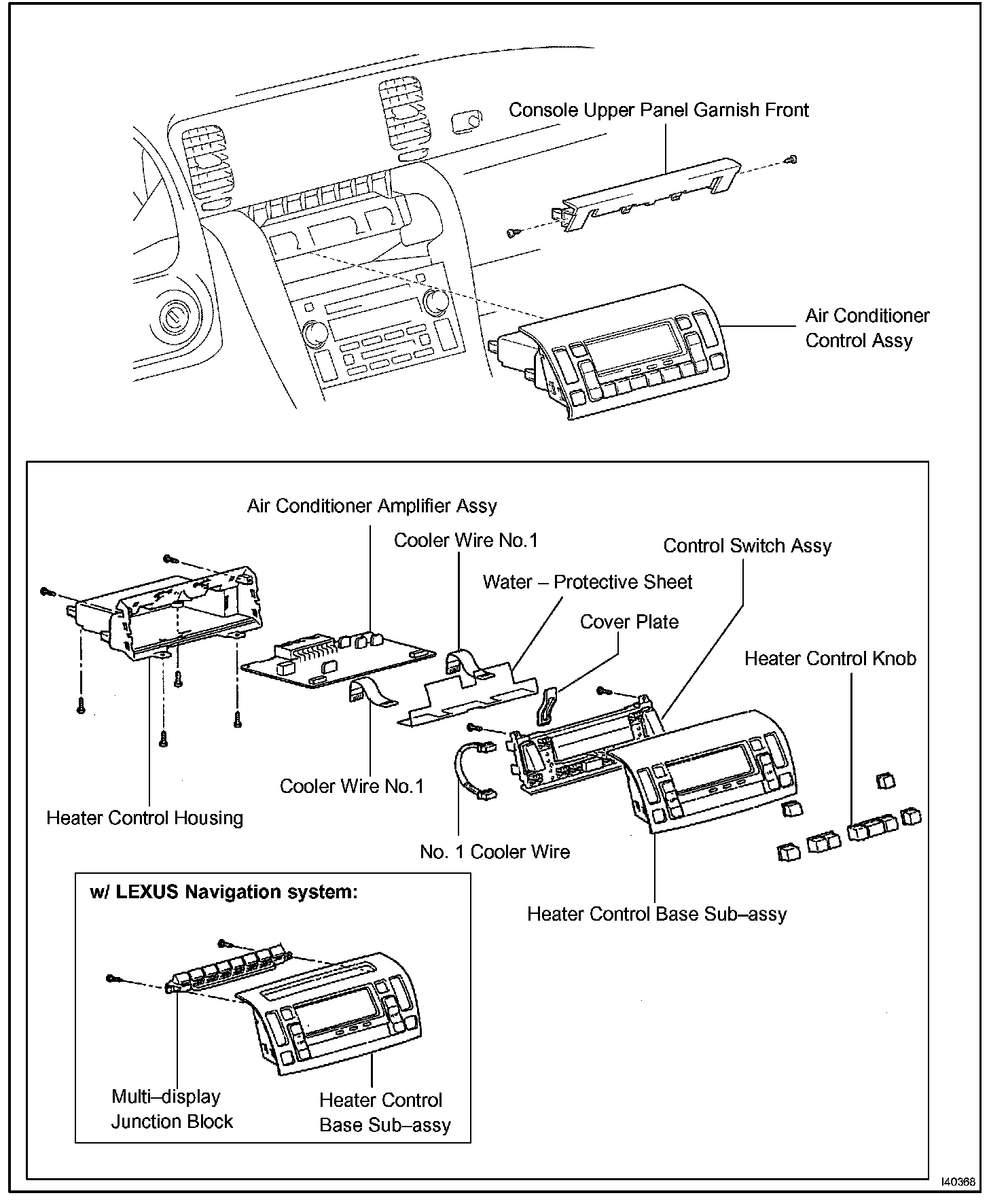

Control Assembly, HVAC
Control Assembly, HVAC
AIR CONDITIONER
CONTROL ASSEMBLY
