Fail-Safe Operation
Fail-Safe Operation

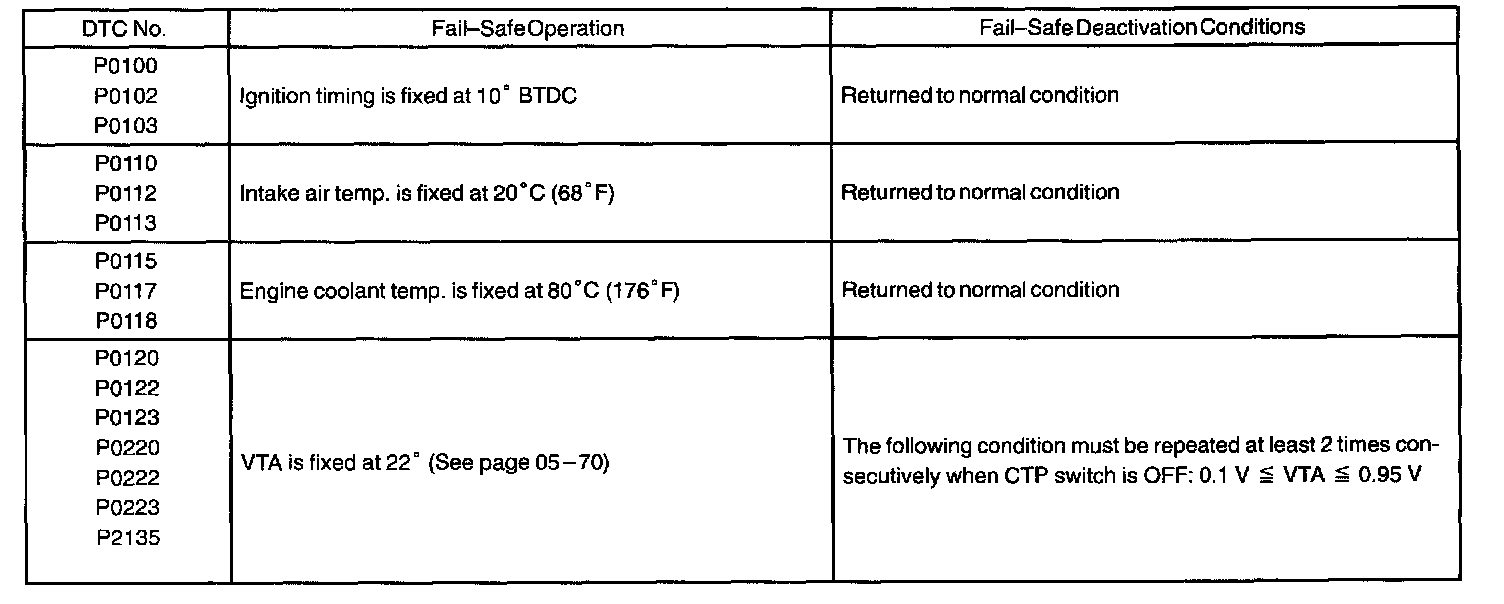

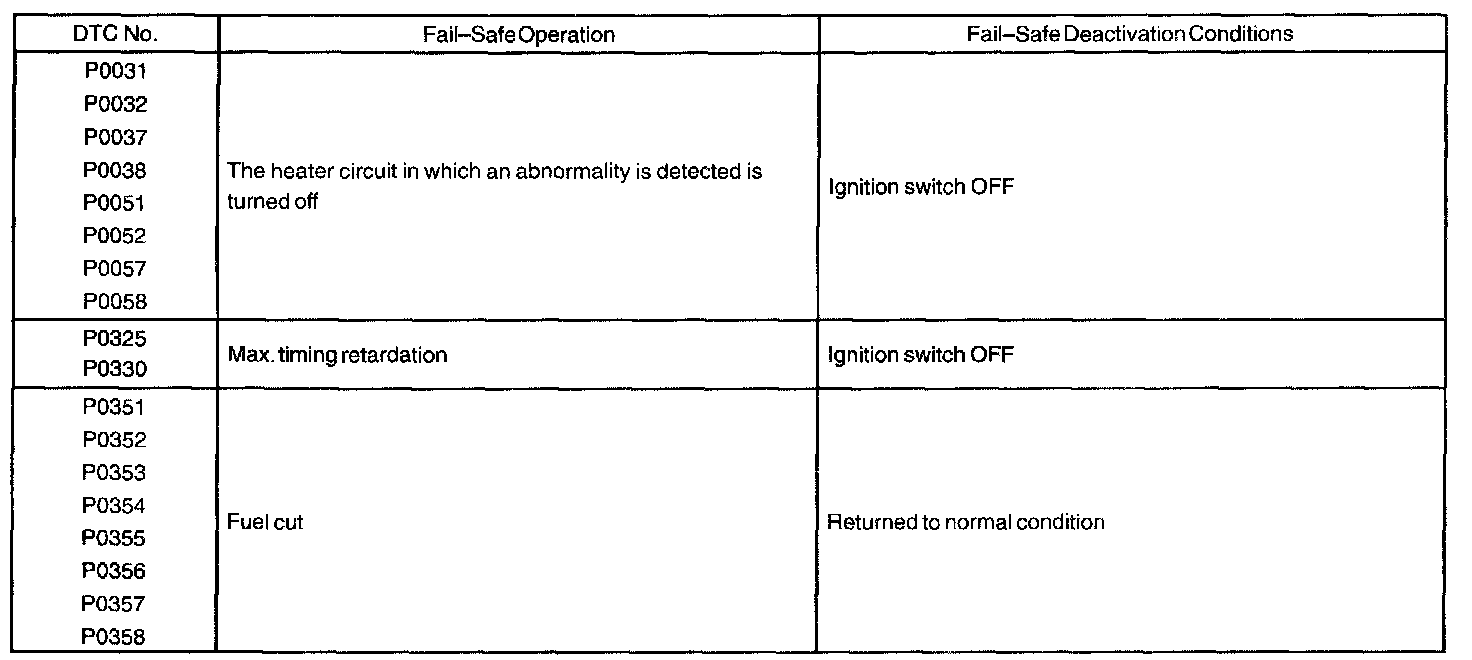

FAIL-SAFE CHART
If any of the given codes is recorded, the ECM enters into the fail-safe mode.
