Home
>>
Lexus
>>
2003
>>
SC 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Window Frame
Window Frame

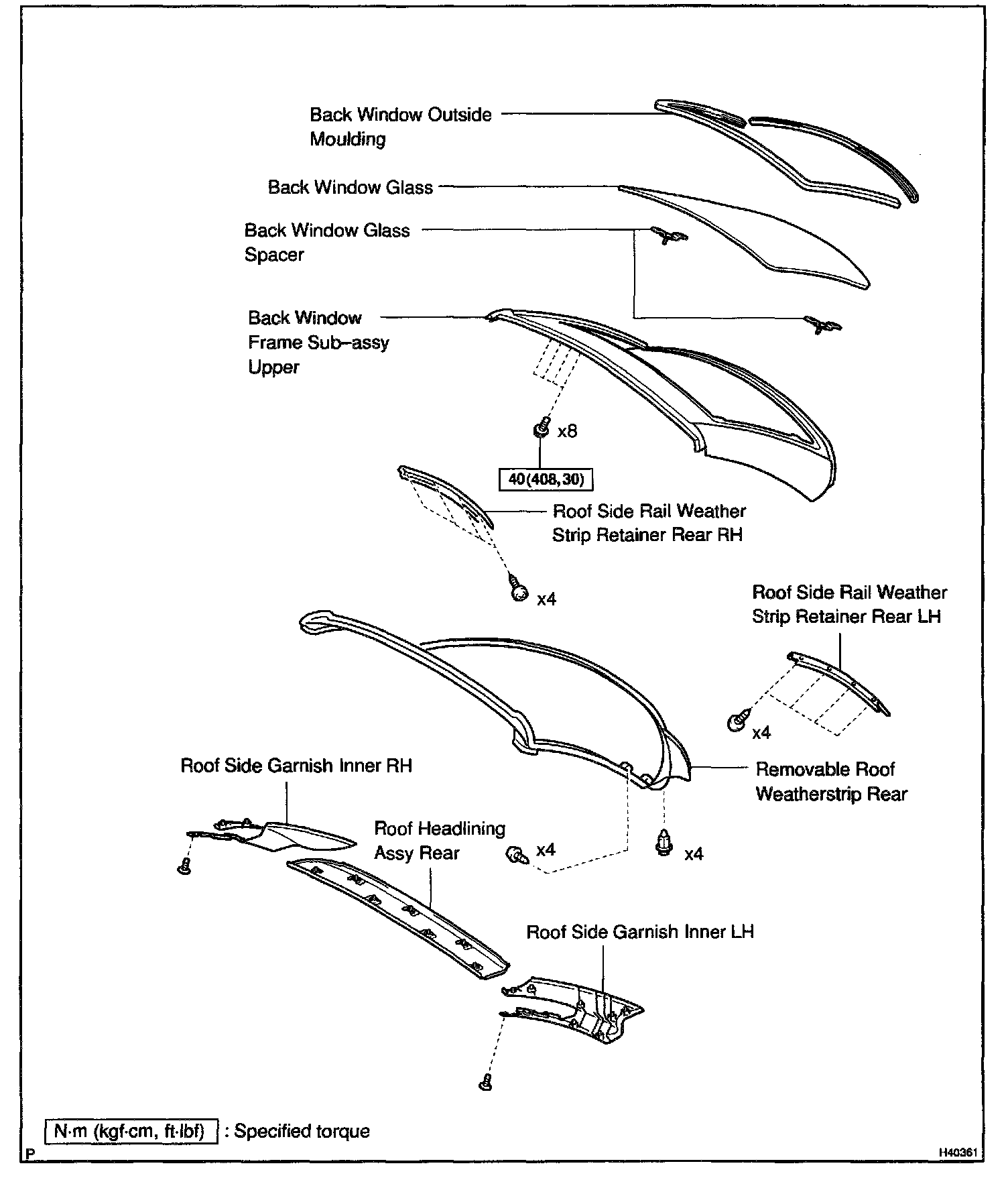

Back Window Frame Sub-Assy Upper:
