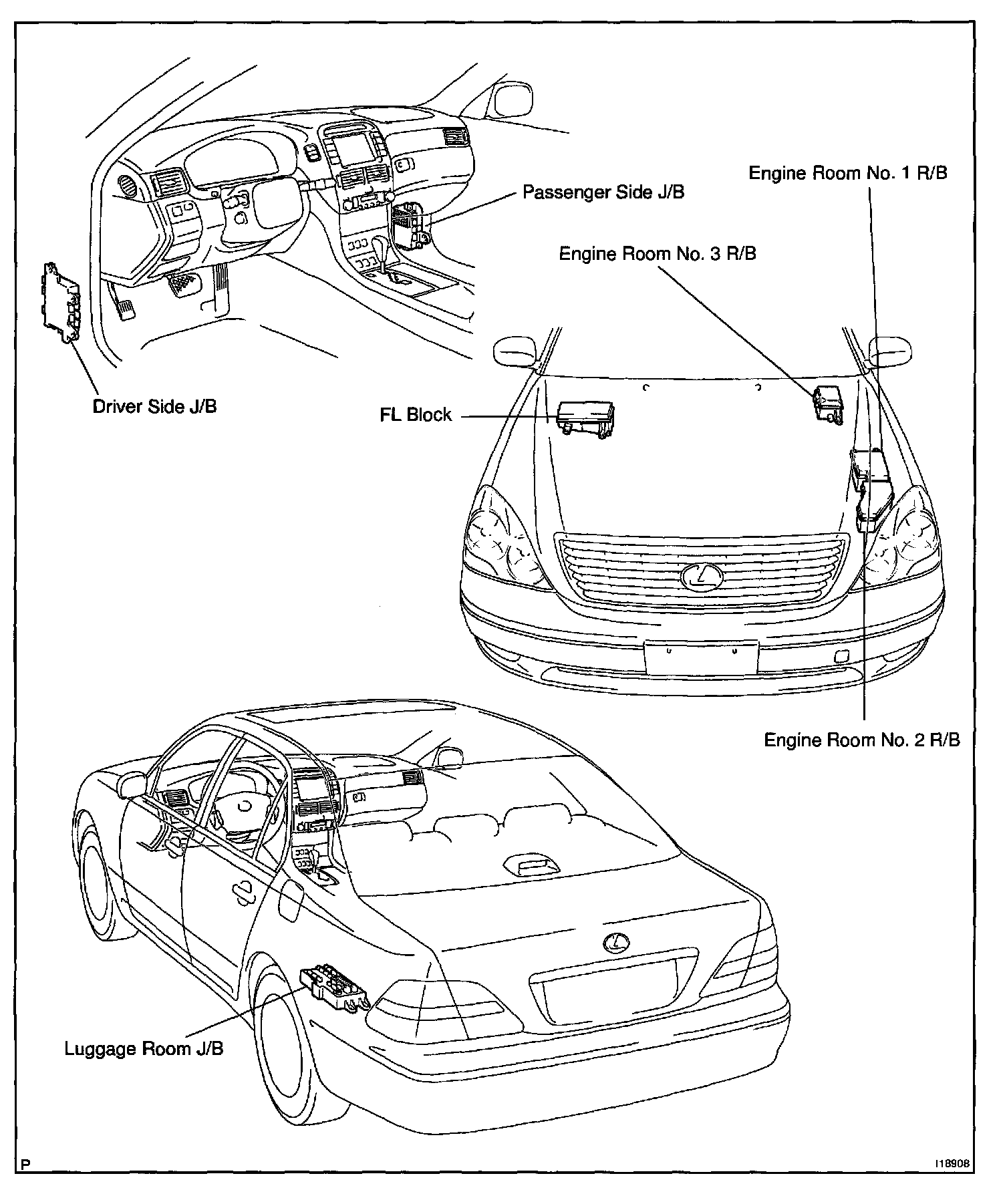

Power and Ground Distribution: Locations

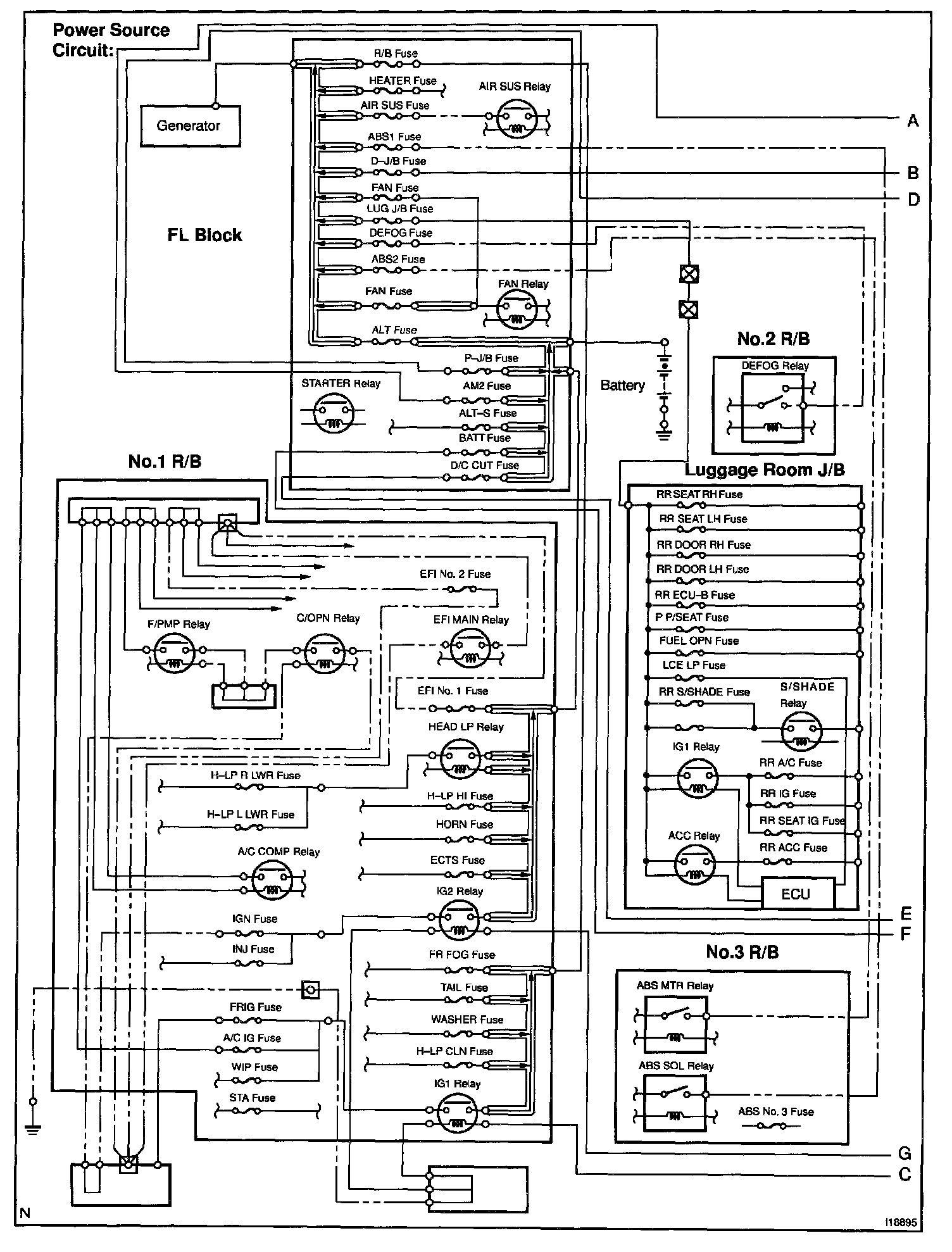

Power Source (Part 1):

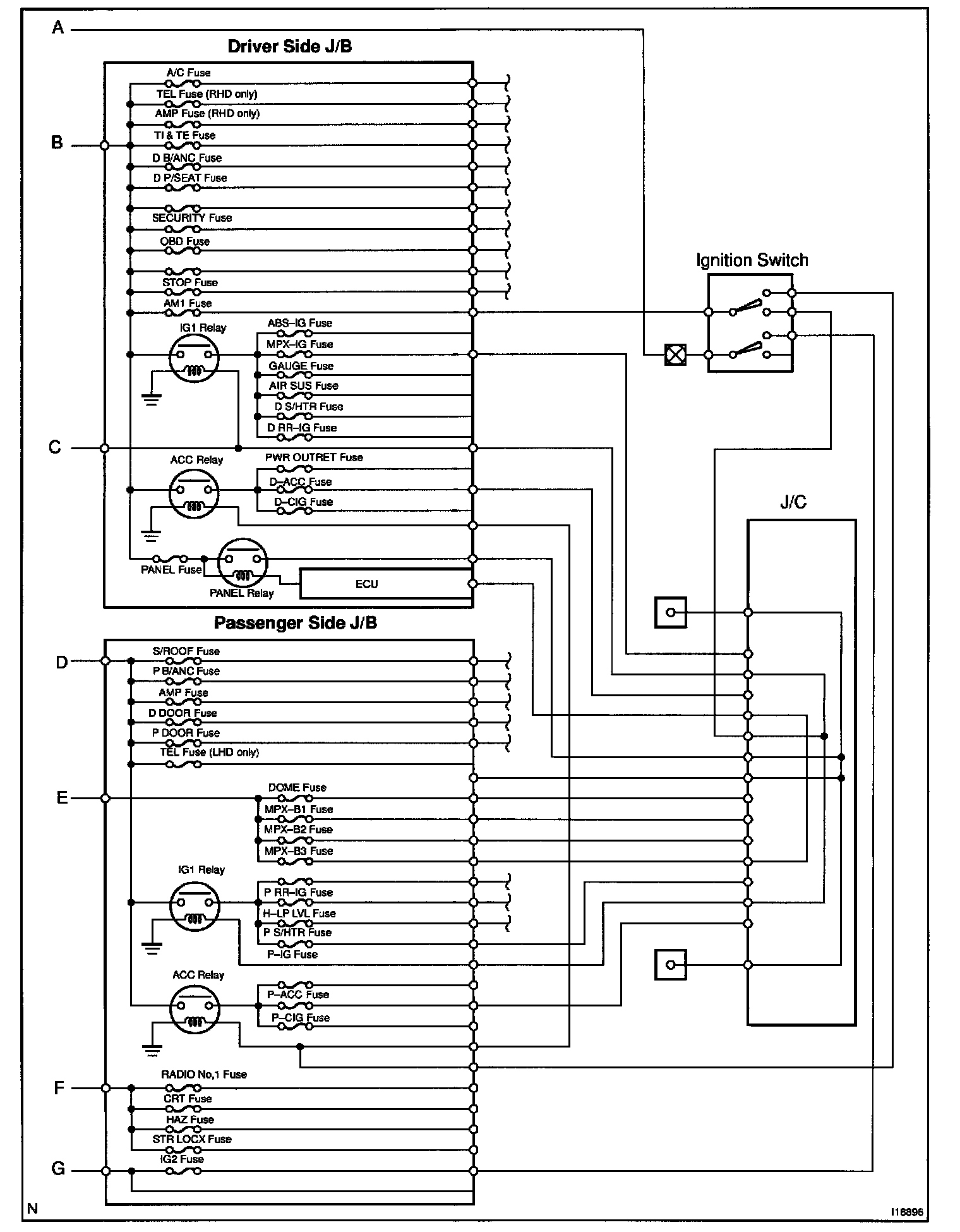

Power Source (Part 2):
Power Source (Part 3):
