Lexus
>>
2002
>>
SC 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Camshaft, Engine
>>
Camshaft Replacement
Camshaft Replacement

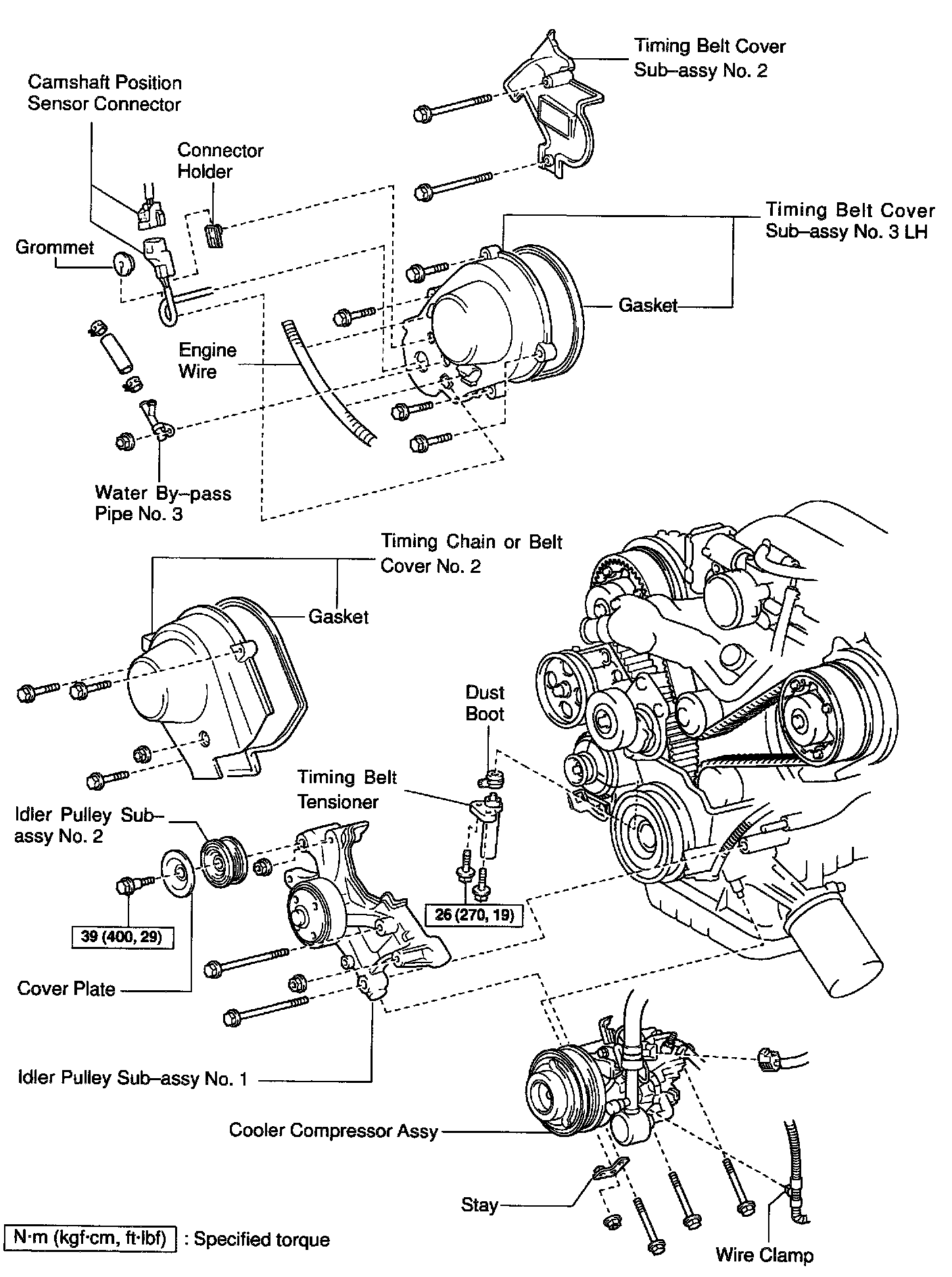

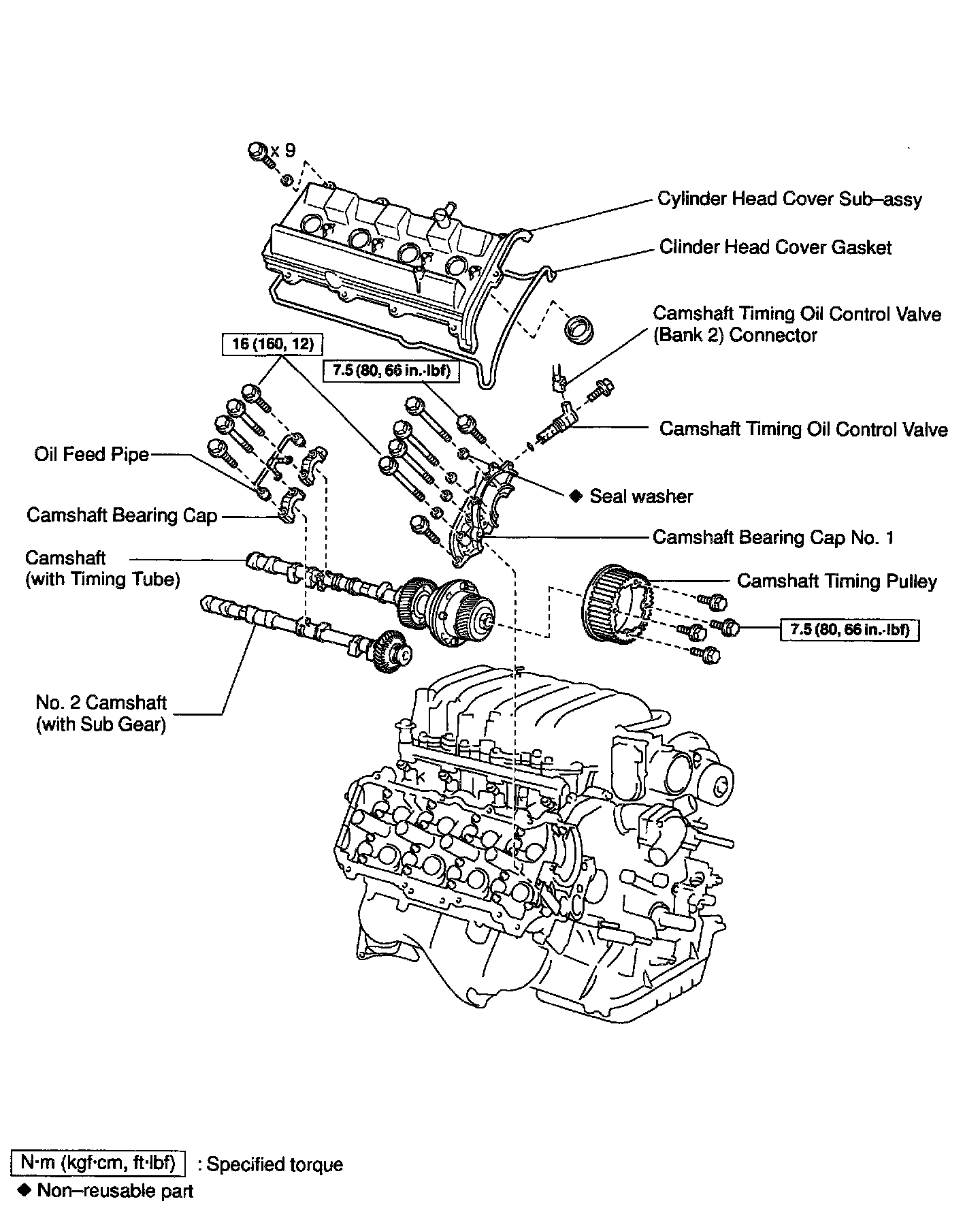

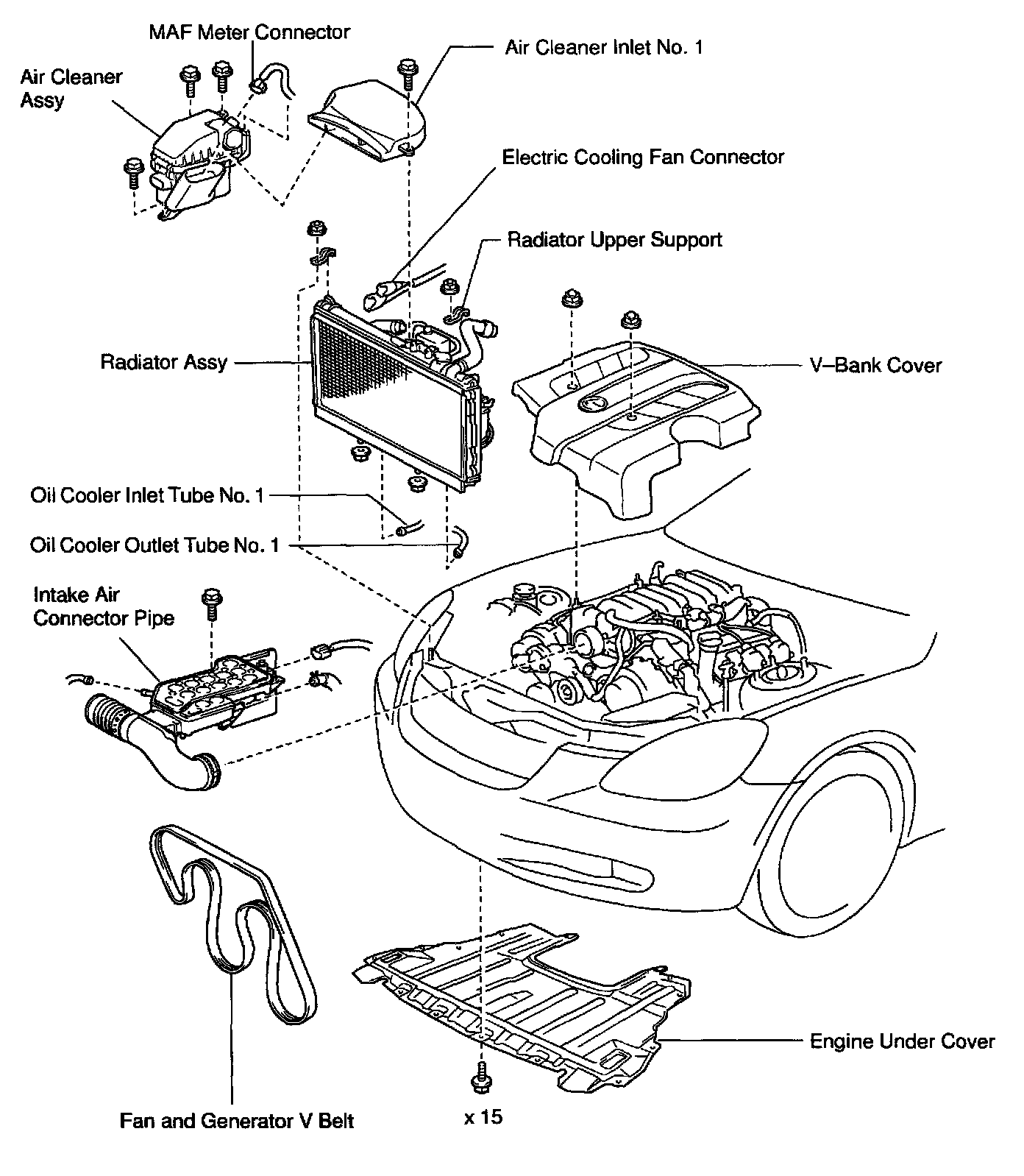

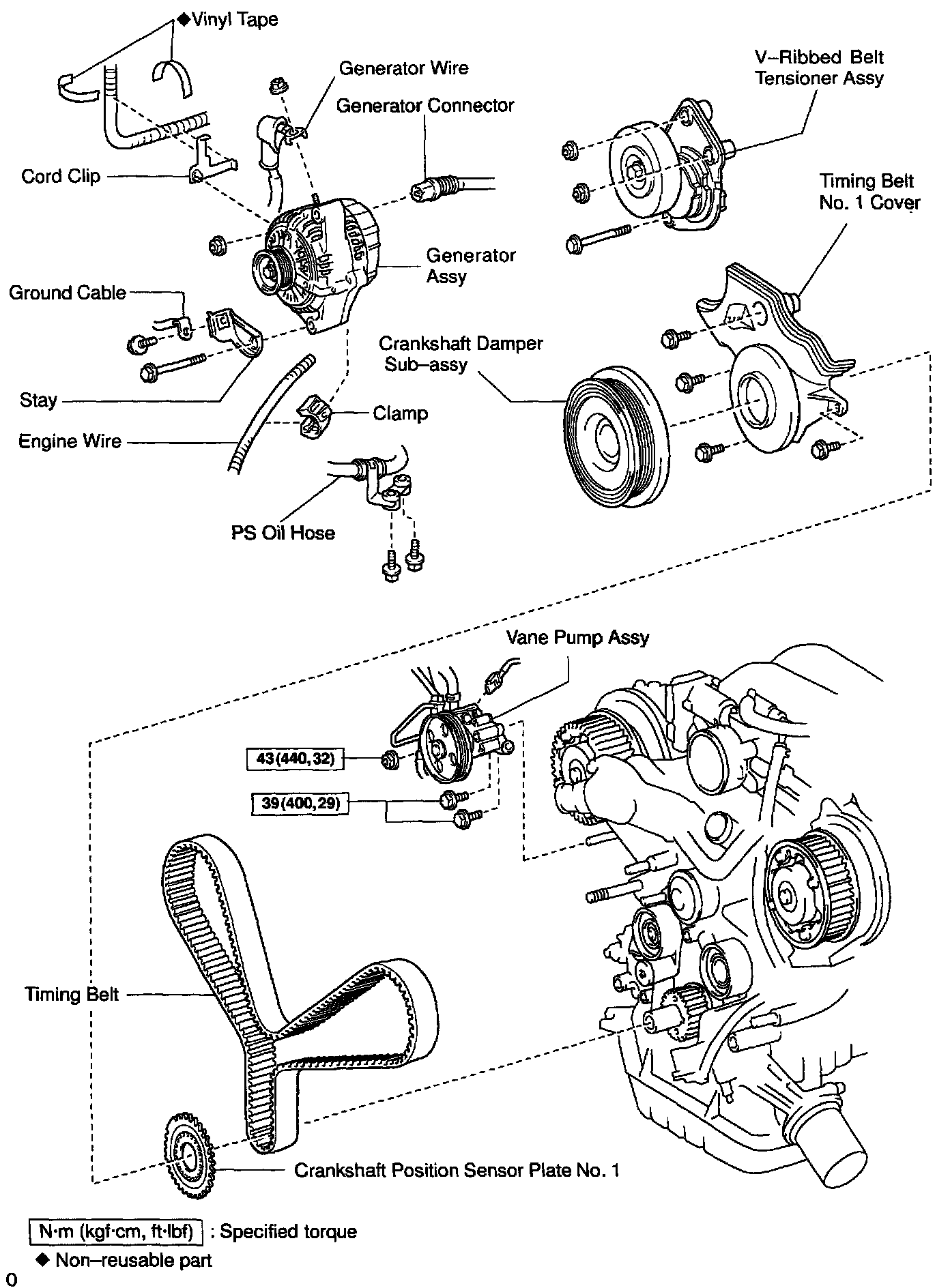

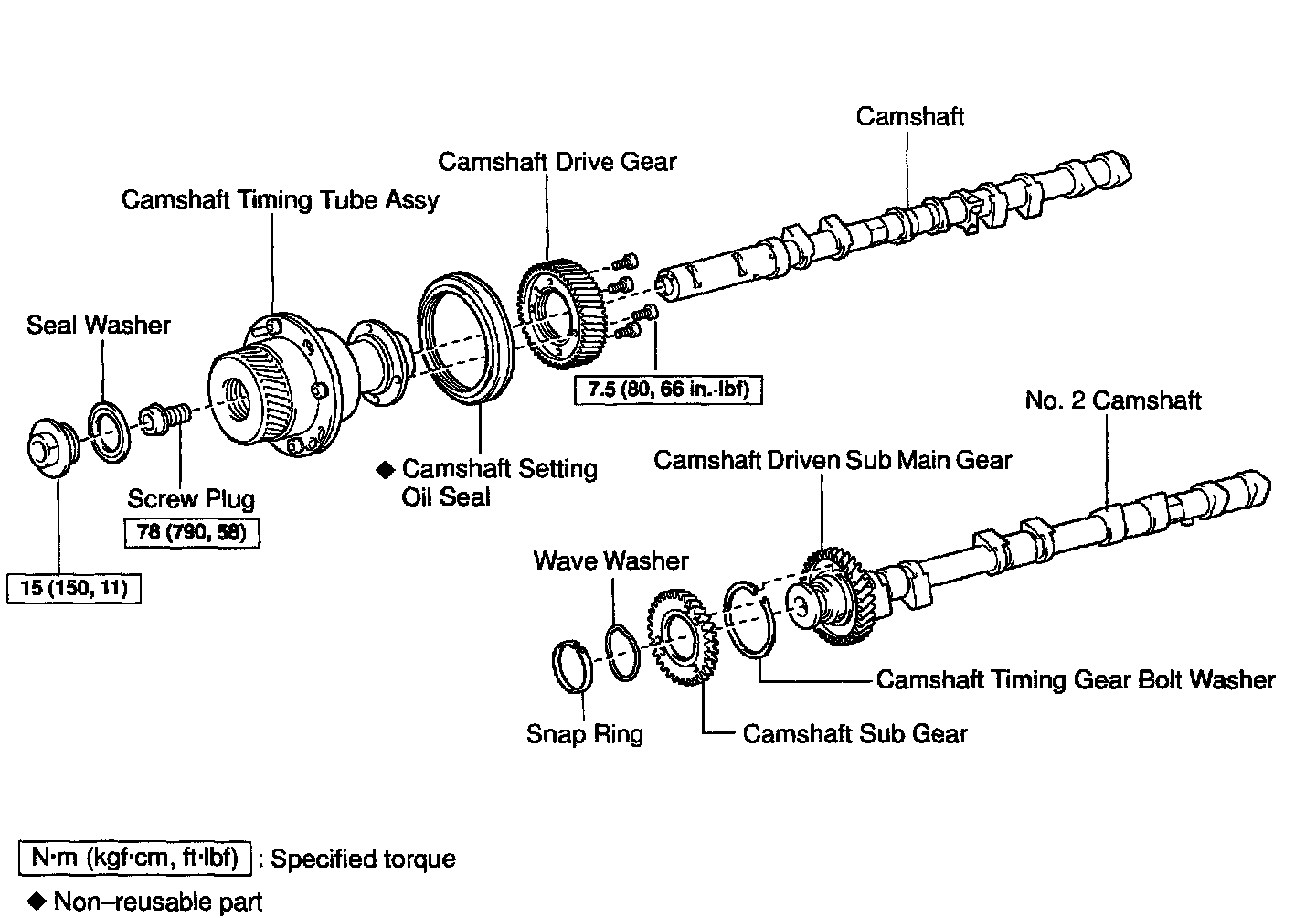

CAMSHAFT
REPLACEMENT W/ RELATED COMPONENTS
