Camshaft No.3 Replacement

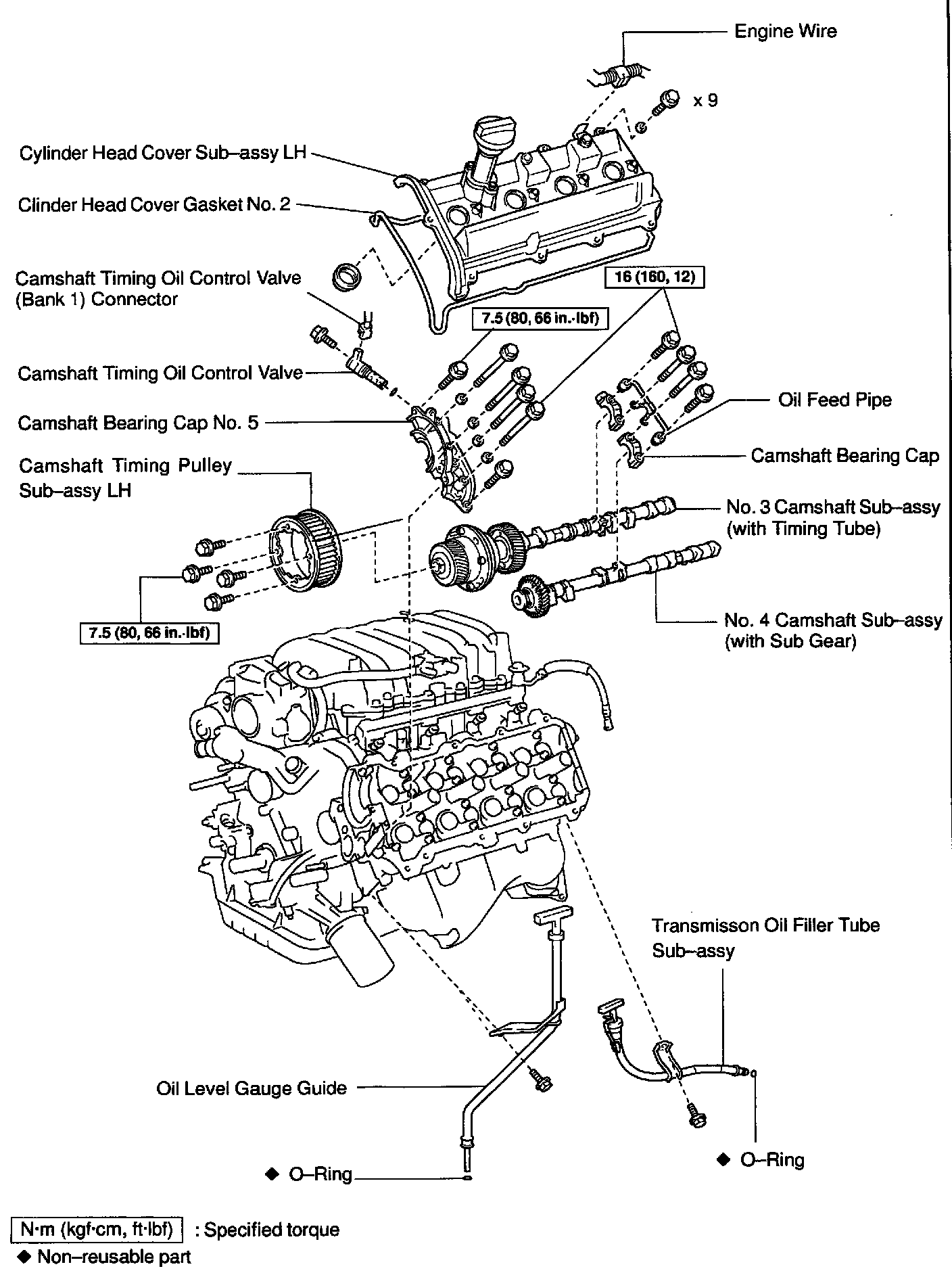

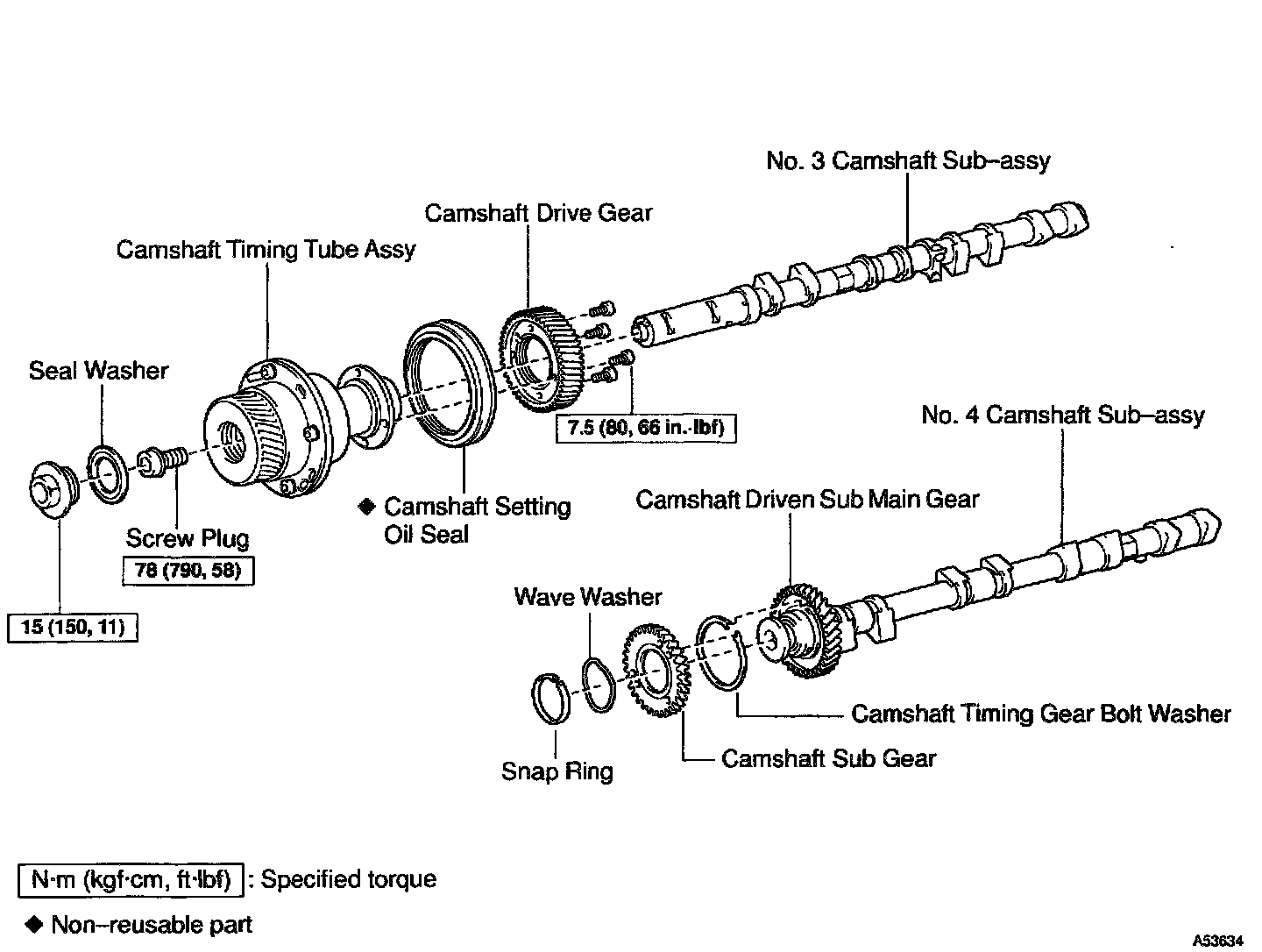

Camshaft No.3 Replacement
NO.3
CAMSHAFT
SUB-ASSY REPLACEMENT W/ RELATED COMPONENTS
