Home
>>
Lexus
>>
2002
>>
SC 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Differential Assembly
>>
Differential Carrier
Differential Carrier

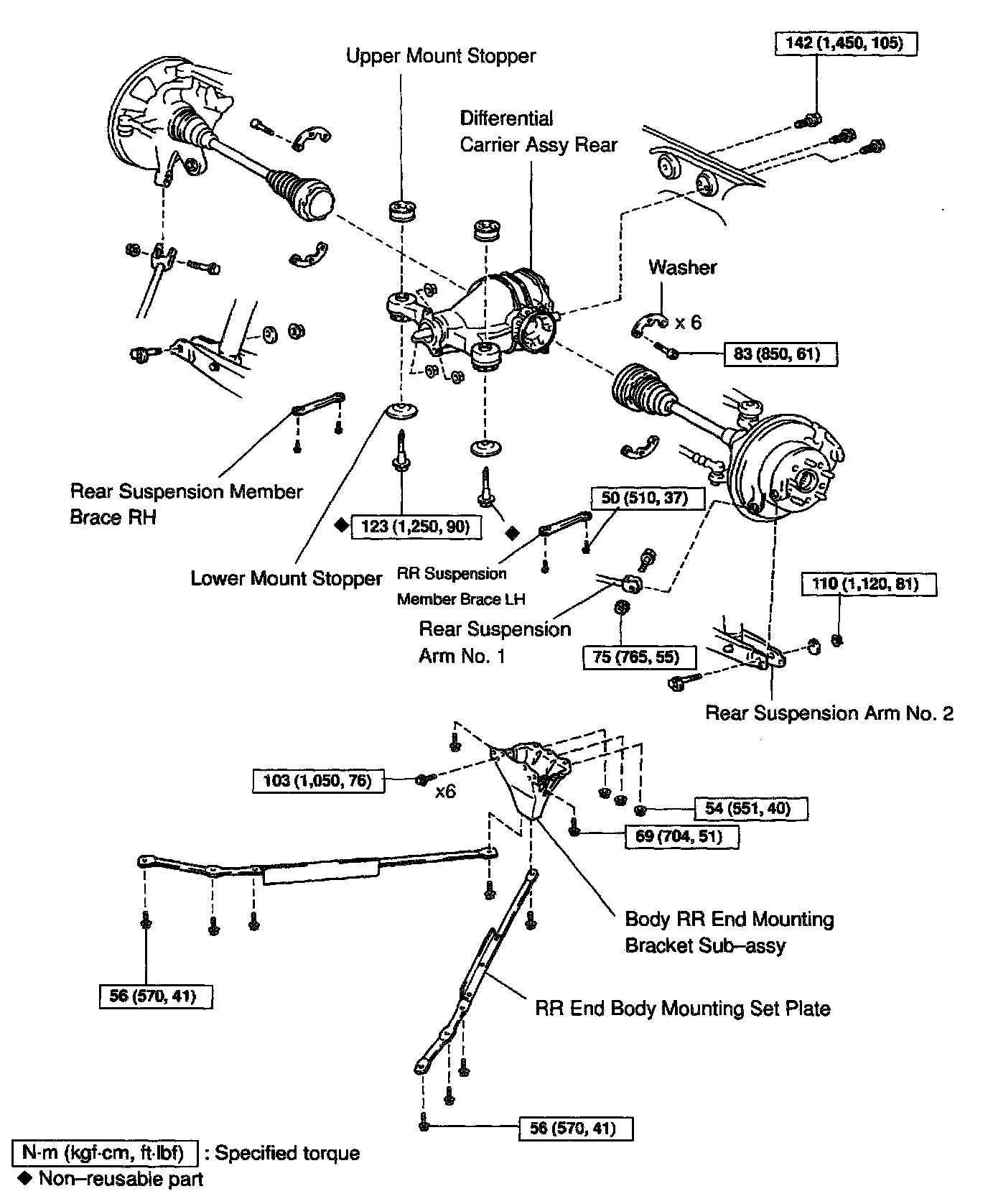

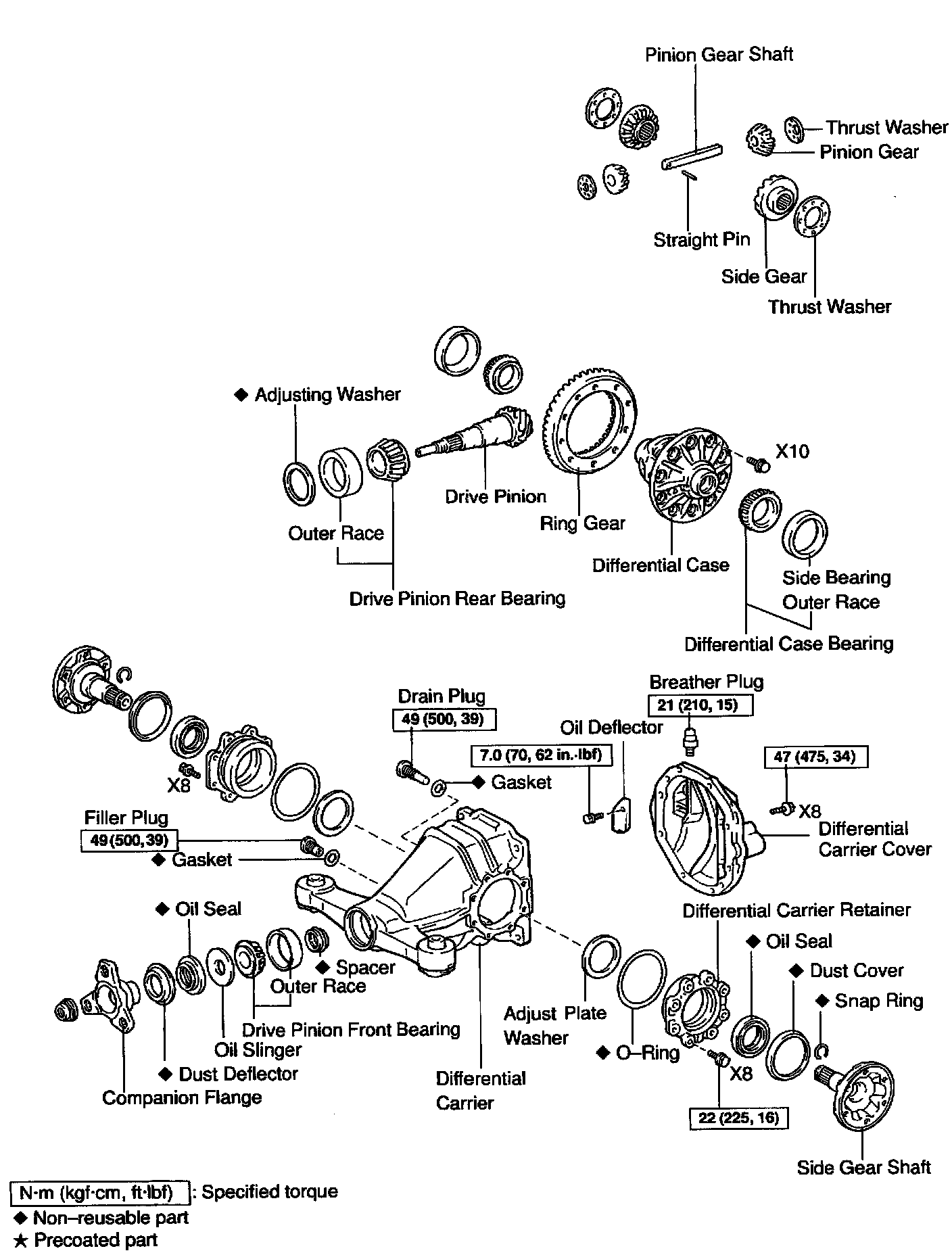

DIFFERENTIAL CARRIER
ASSY REAR
