Connector Views By Connector Number

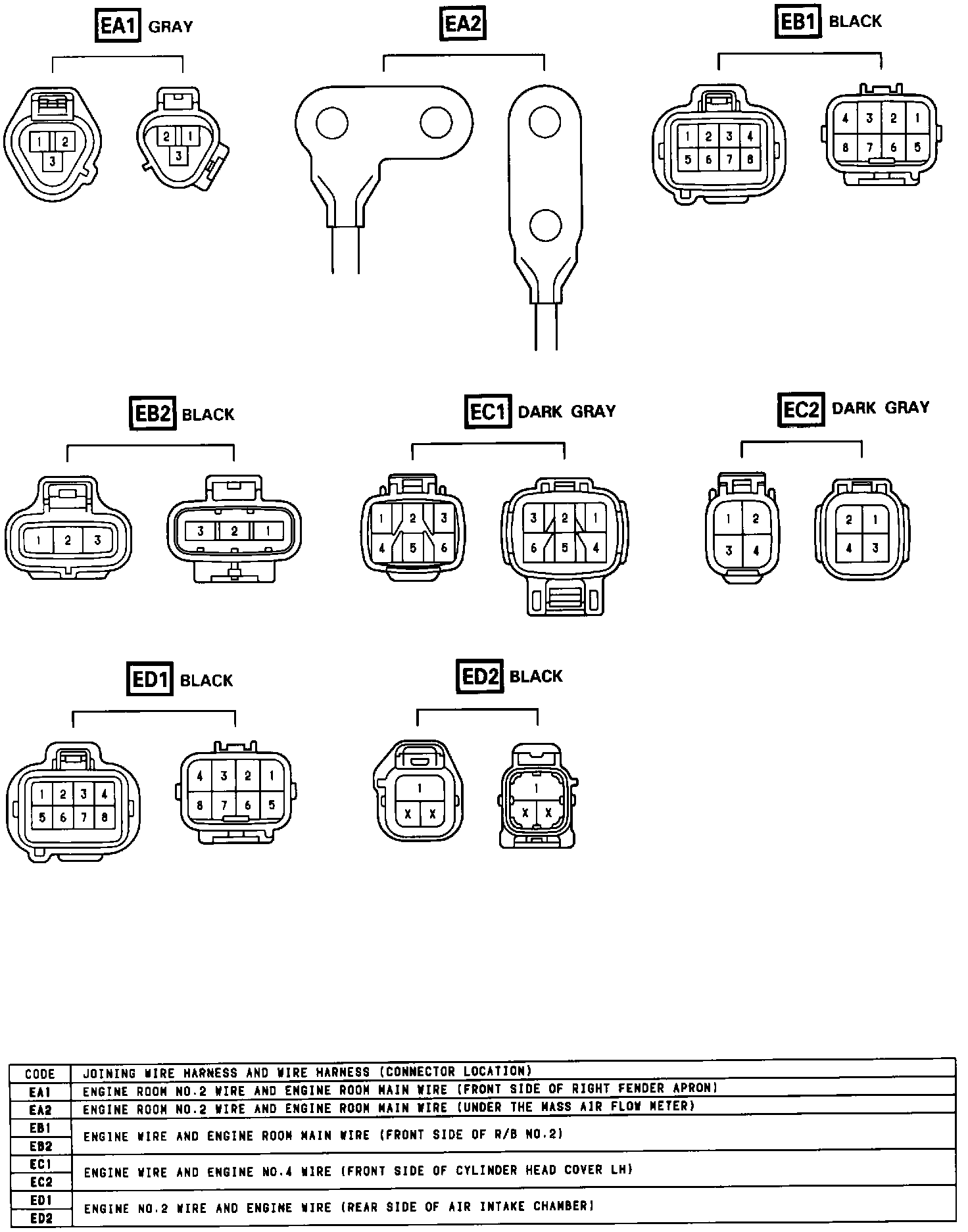

Connector Joining Wire Harness And Wire Harness-Connectors:

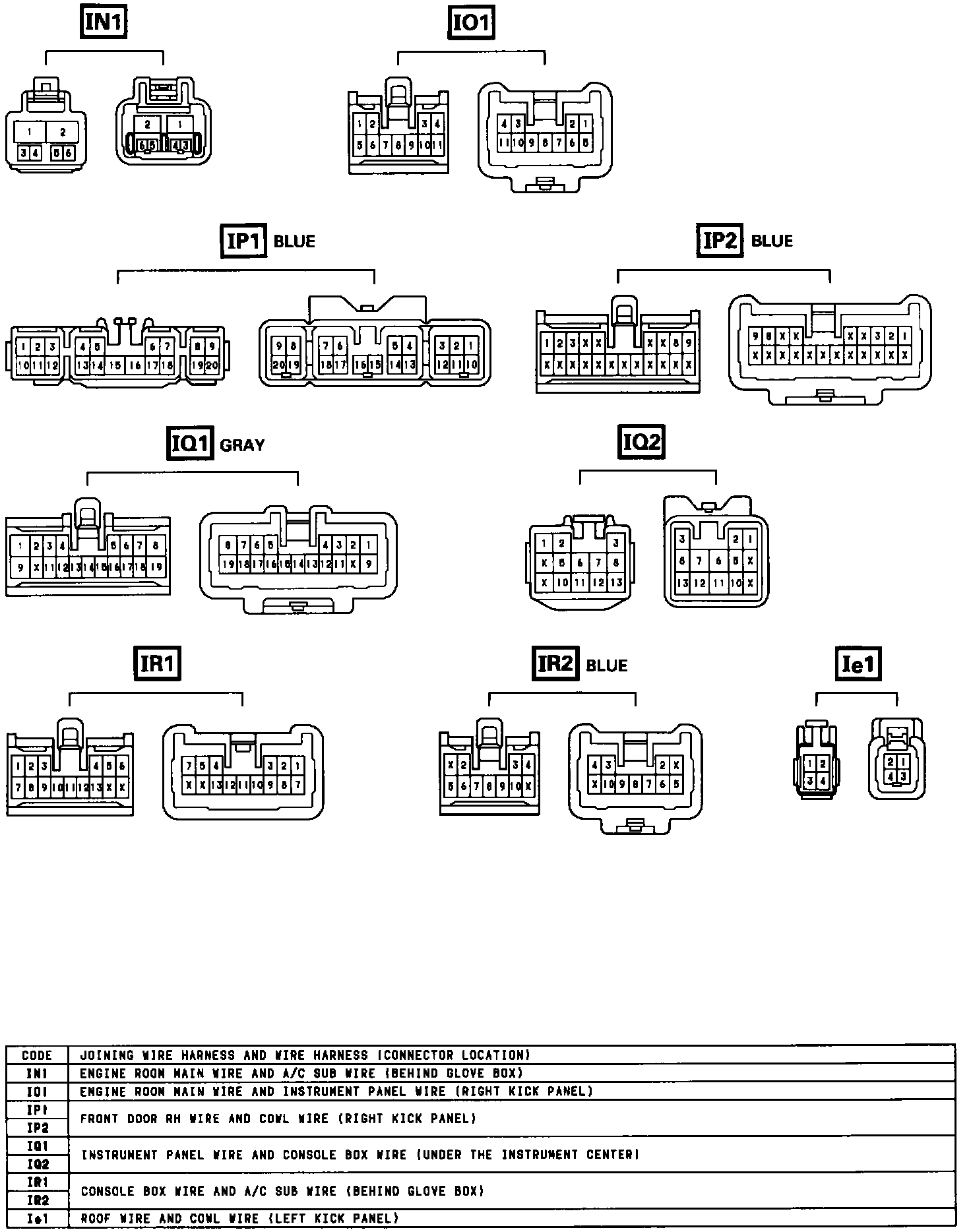

Connector Joining Wire Harness And Wire Harness-Connectors:

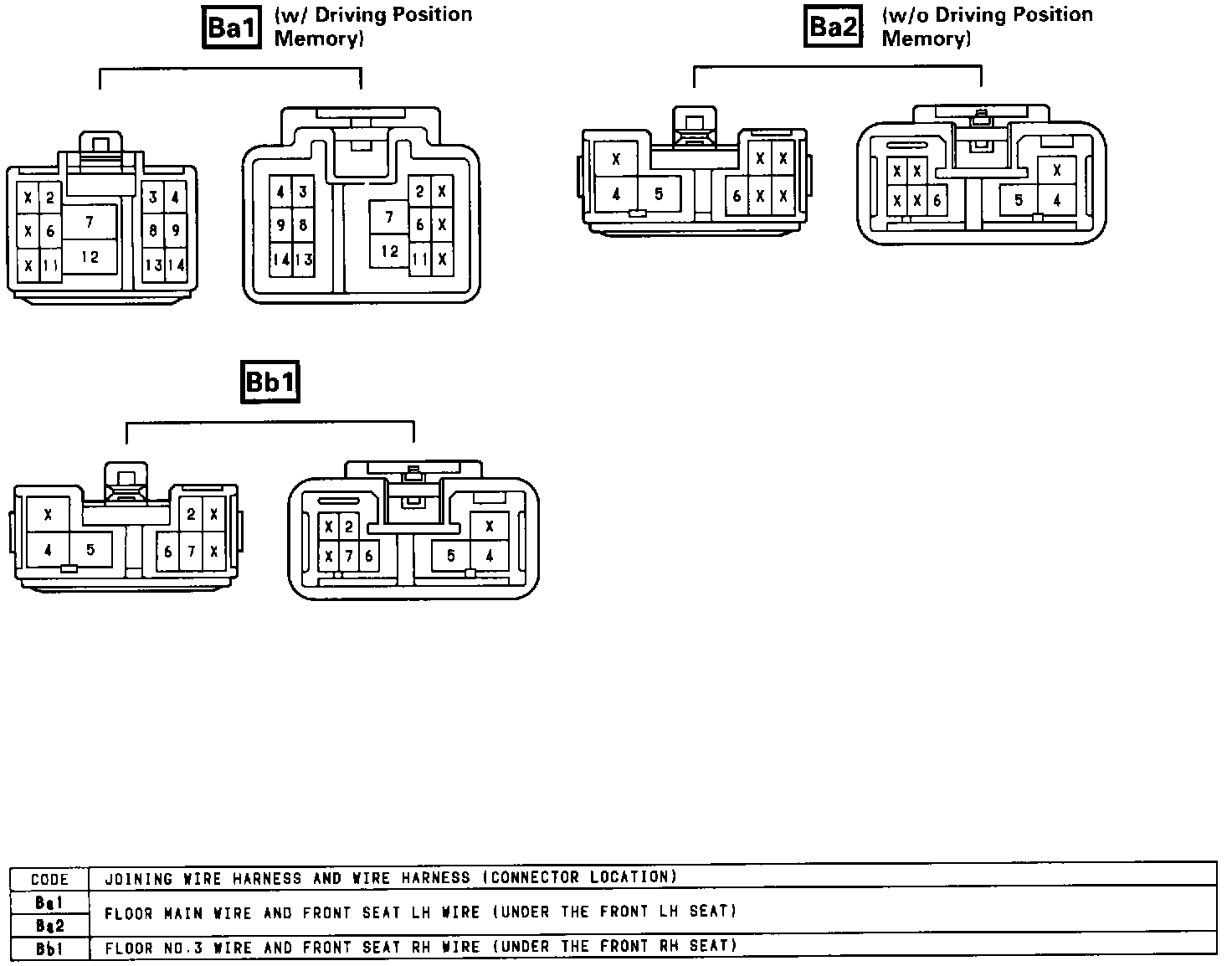

Connector Joining Wire Harness And Wire Harness-Connectors:

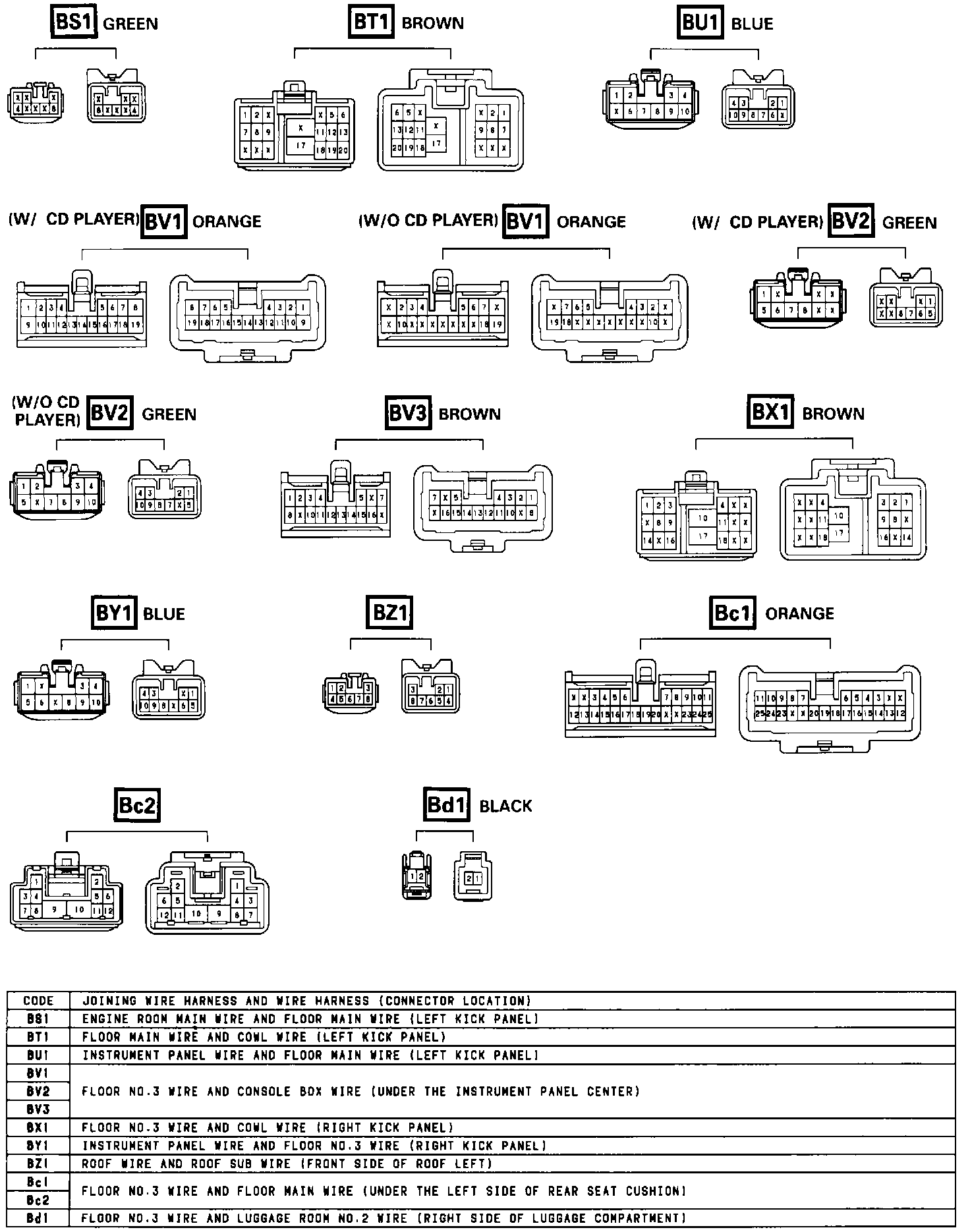

Connector Joining Wire Harness And Wire Harness-Connectors:

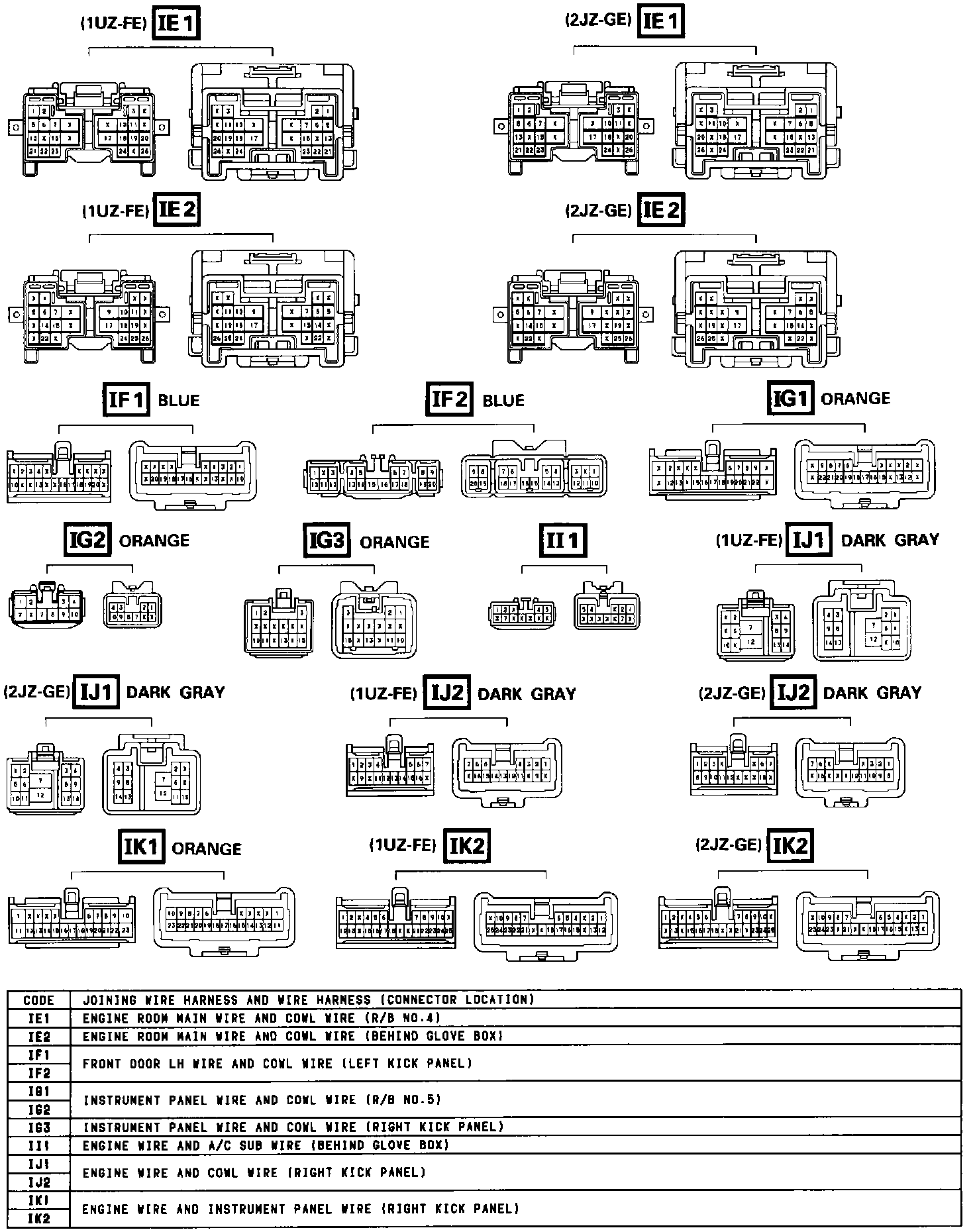

Connector Joining Wire Harness And Wire Harness-Connectors:
