Lexus
>>
1992
>>
SC 400 V8-4.0L (1UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seats
Seats

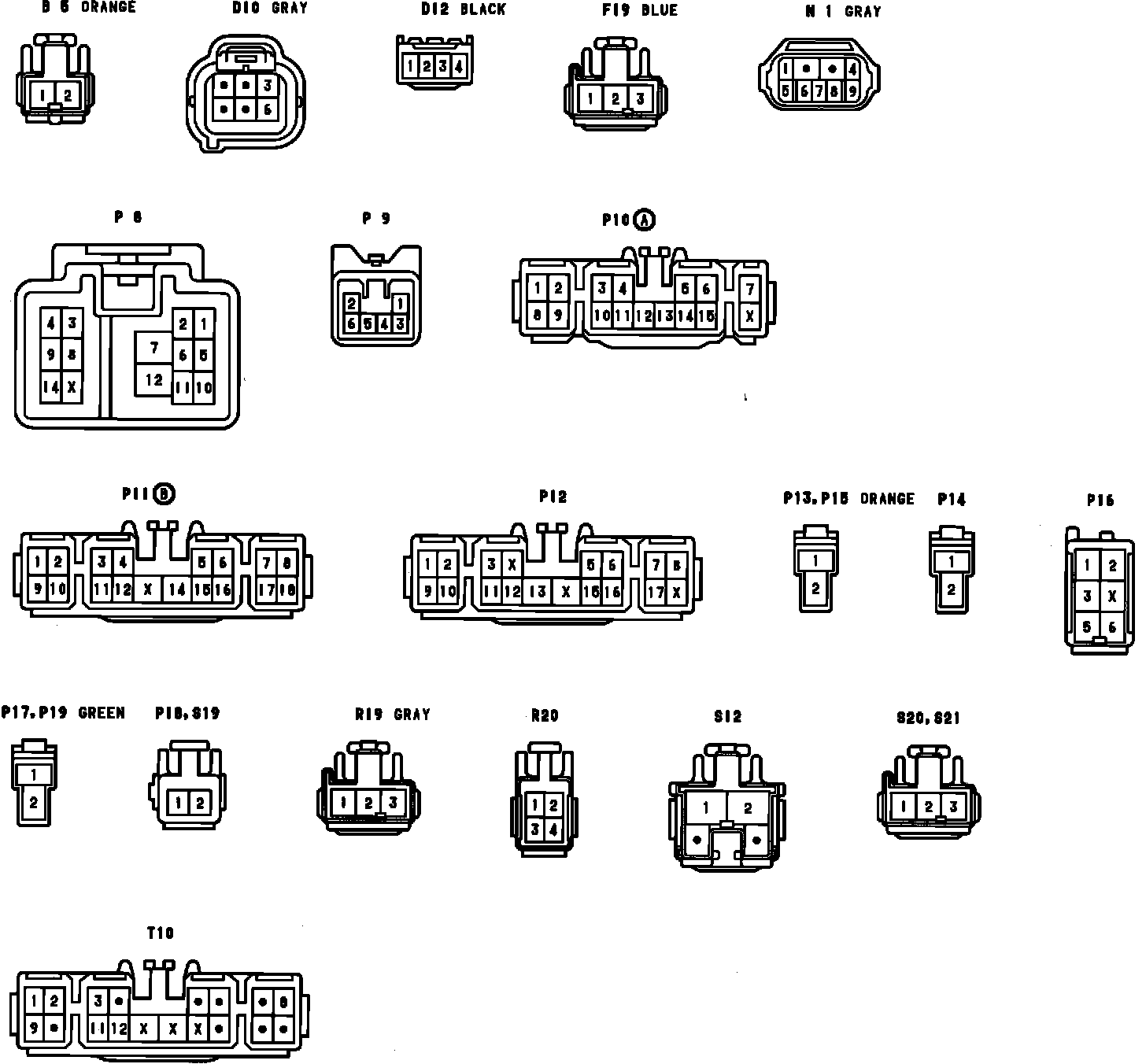

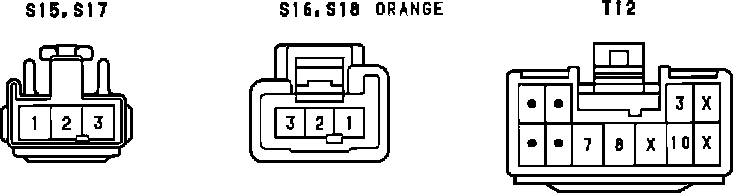

Connector ID And Pin Locations:
