Tire Monitor System - Activation And Initialization

L-TCI-3146

April 23 2012

TIRE PRESSURE WARNING SYSTEM ACTIVATION

Service Category
General

Section
Pre-Delivery Service

Market
Canada

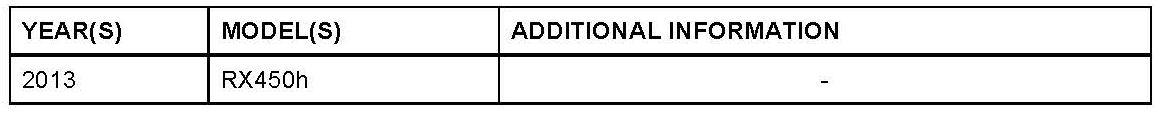

APPLICABILITY:

INTRODUCTION:

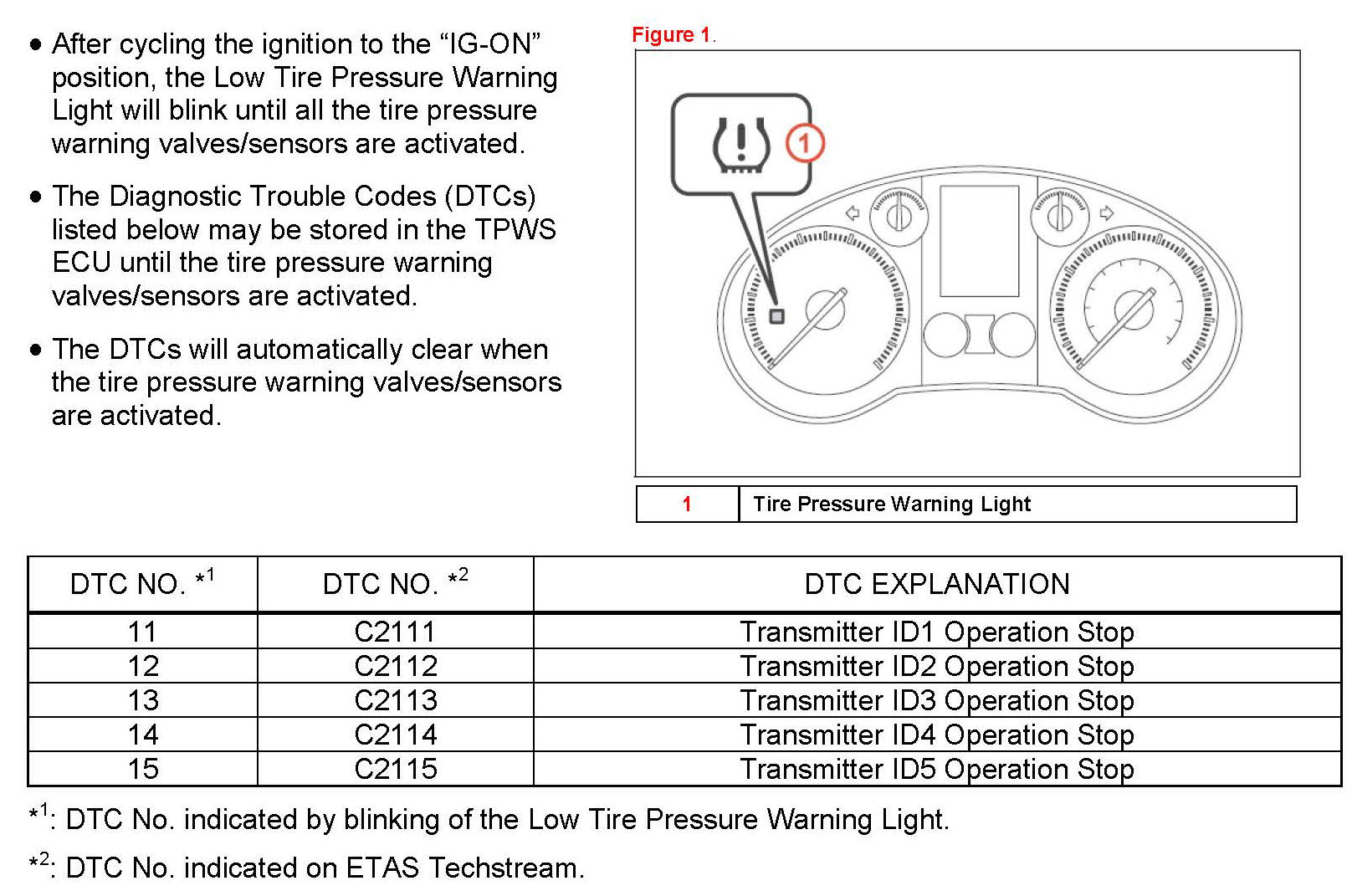

2013 model year RX45Oh vehicles are equipped with a direct4ype Tire Pressure Warning System (TPWS). Each tire (including the spare tire) has a tire pressure warning valve/sensor and the measured tire pressure data is transmitted to the Tire Pressure Warning System antenna/receiver to the Tire Pressure Warning System ECU

During Pre-Delivery Service (PDS) the tire pressure warning valves/sensors must be activated according to the procedure in this TSB

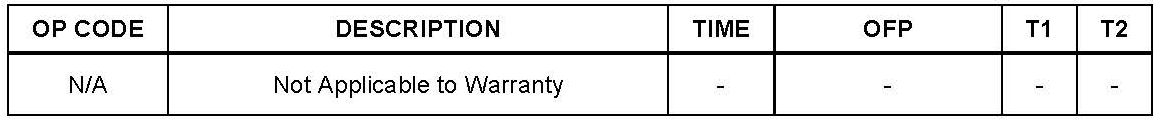

WARRANTY INFORMATION:

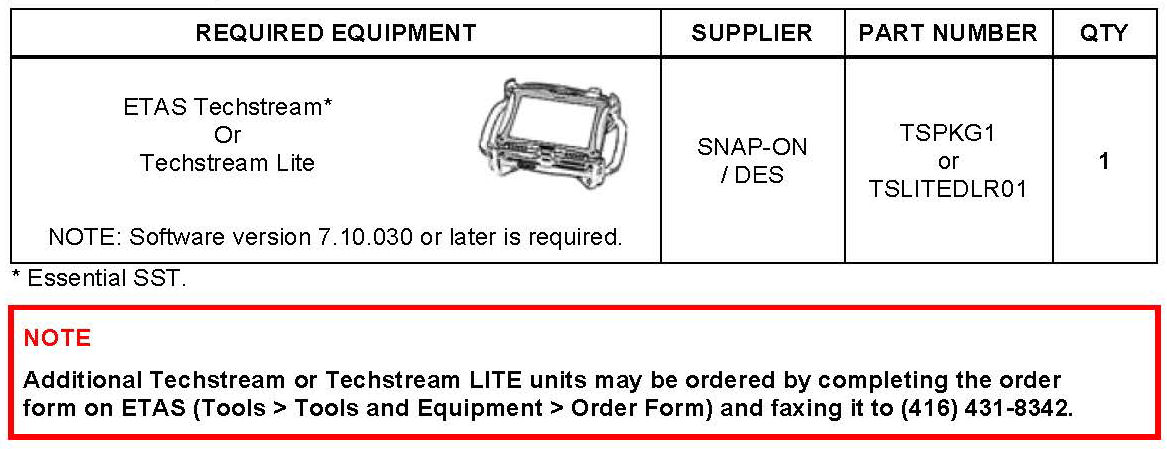

REQUIRED SSTS:

REFERENCE:

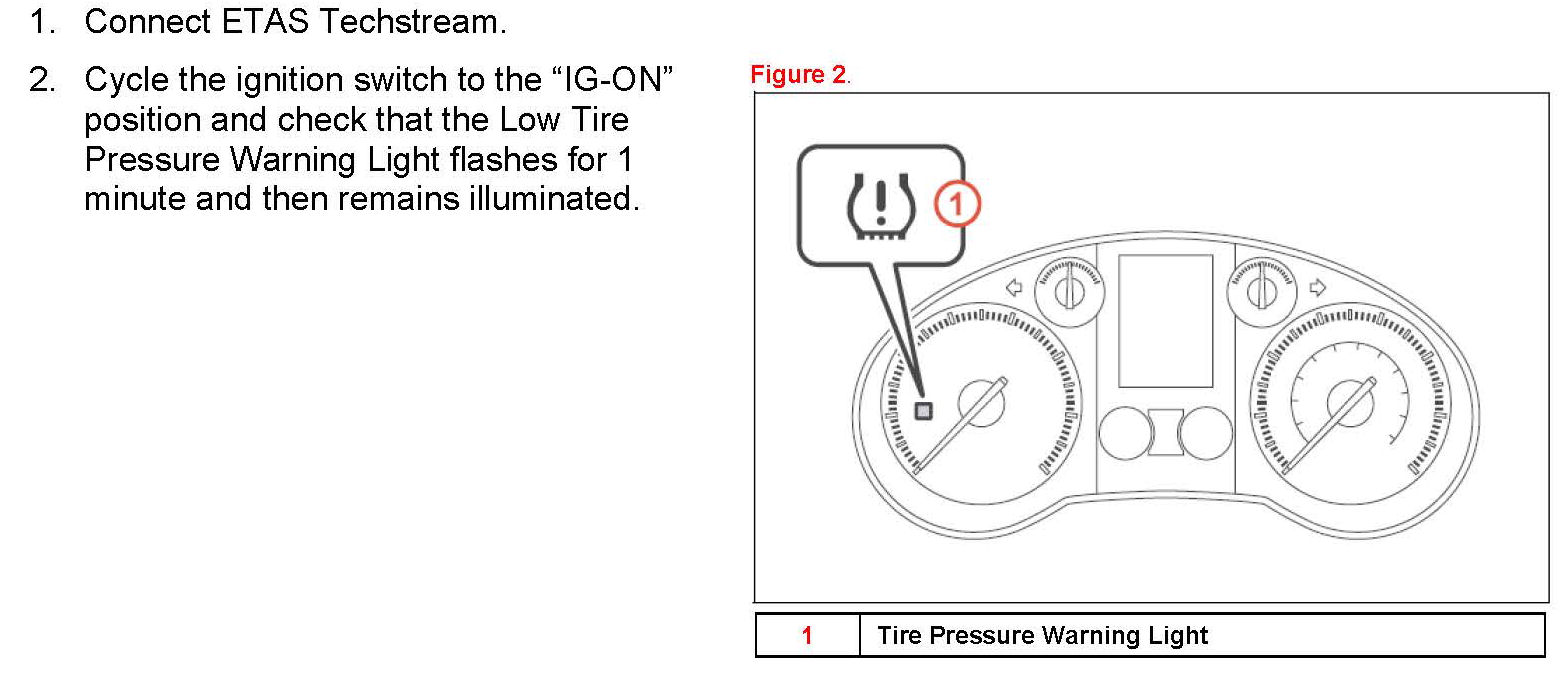

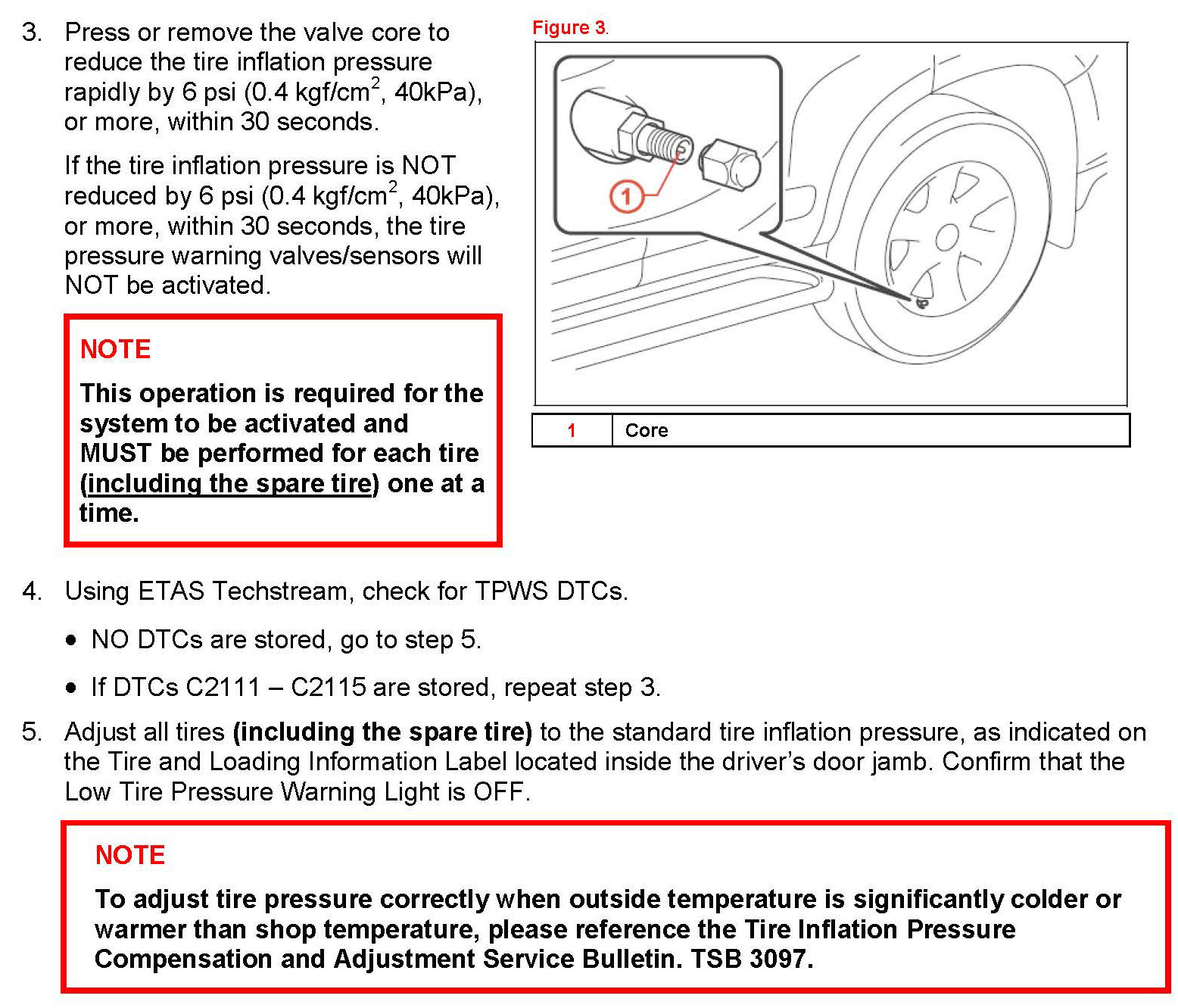

ACTIVATION PROCEDURE:
