RX 450h FWD V6-3.5L (2GR-FXE) Hybrid
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Continuously Variable Transmission/Transaxle
>>
Fluid Pump
>>
Locations
Fluid Pump: Locations

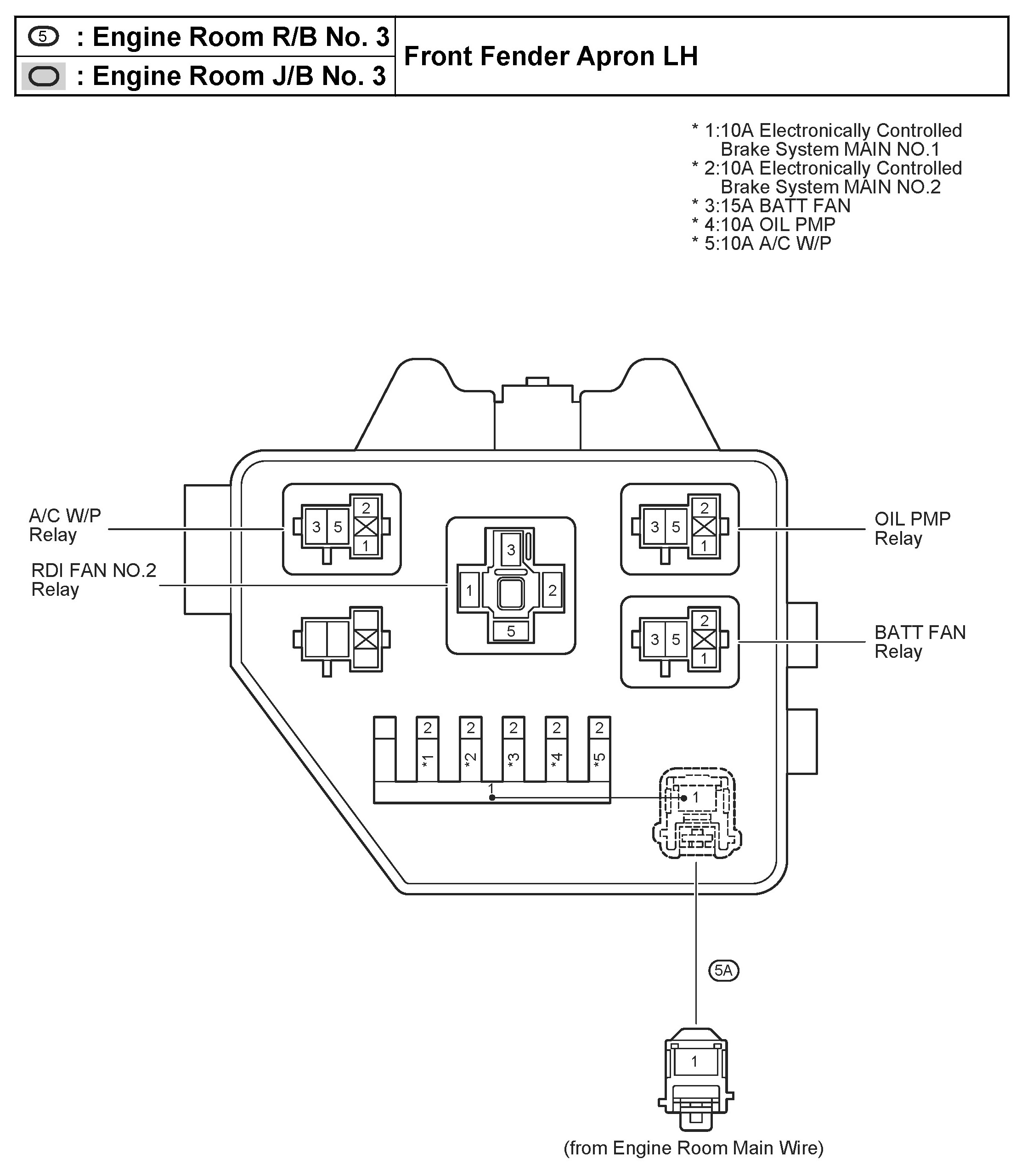

27 - Engine Room R/B No. 3, Engine Room J/B No. 3 - Front Fender Apron LH:
