Climate Control Seat System
>>
System Diagram
System Diagram

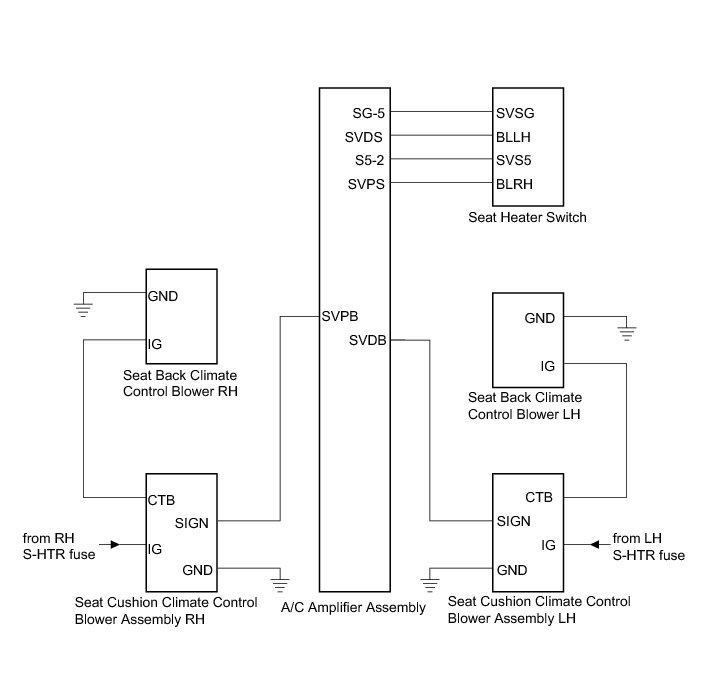

SEAT: CLIMATE CONTROL SEAT SYSTEM: SYSTEM DIAGRAM
