WIPER / WASHER: RELAY (w/ Rear Wiper): ON-VEHICLE INSPECTION

1. REMOVE WASHER RR RELAY





(a) Remove the washer RR relay from the engine room relay block.

Text in Illustration





2. INSPECT WASHER RR RELAY

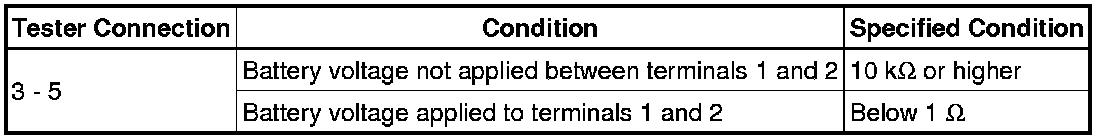

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





* If the result is not as specified, replace the washer RR relay.

3. INSTALL WASHER RR RELAY

(a) Install the washer RR relay to the engine room relay block.
