Replacement

WIPER / WASHER: FRONT WIPER RUBBER: REPLACEMENT

HINT
* Use the same procedure for the RH and LH sides.
* The procedure listed below is for the LH side.

1. REMOVE FRONT WIPER BLADE

(a) Open the front wiper blade holder.

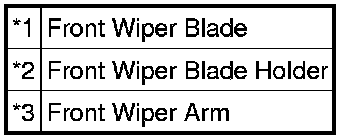

Text in Illustration





(b) Remove the front wiper blade from the front wiper arm as shown in the illustration.

NOTICE:
Do not bend the front wiper arm with the front wiper blade removed because the arm tip could damage the windshield surface.

2. REMOVE WIPER RUBBER

(a) Remove the wiper rubber and wiper rubber backing plates from the front wiper blade.





(b) Remove the 2 wiper rubber backing plates from the wiper rubber.





3. INSTALL WIPER RUBBER

(a) Install the 2 wiper rubber backing plates to the wiper rubber.





NOTICE:
* Align the protrusions on the wiper rubber and the notches of the backing plates.
* Align the curves of the backing plates and the glass.

(b) Install the wiper rubber to the front wiper blade as shown in the illustration.

NOTICE:
Push the wiper rubber into the wiper blade strongly to engage them securely.





4. INSTALL FRONT WIPER BLADE

(a) Install the front wiper blade as shown in the illustration.





Text in Illustration
