Installation

WIPER / WASHER: WASHER MOTOR (for Front Side): INSTALLATION

1. INSTALL WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

(a) Install the windshield washer motor and pump to the packing of the washer jar.

2. INSTALL WINDSHIELD WASHER JAR ASSEMBLY

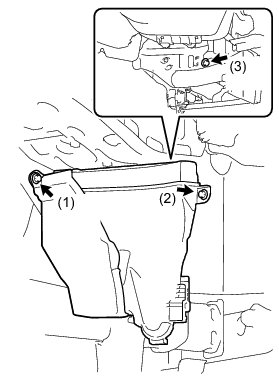

(a) Attach the guide to install the washer jar, and then install the 3 screws.





Torque : 5.5 Nm (56 kgf-cm, 49 in-lbf)

NOTICE:
Tighten the screws in the order shown in the illustration.

(b) w/o Headlight Cleaner System:

Connect the connector.

(c) w/ Headlight Cleaner System:

Connect the 3 connectors.

3. INSTALL WASHER INLET SUB-ASSEMBLY

(a) Attach the claw to install the washer inlet sub-assembly.

4. FILL WASHER JAR WITH WASHER FLUID

(a) Connect the washer hose to the hose of the windshield washer motor and pump assembly and fill the washer jar with washer fluid.

5. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH

(a) Attach 14 new grommets to install the front fender splash shield sub-assembly.

(b) Install the 3 screws.

6. INSTALL FRONT WHEEL

7. INSTALL FRONT BUMPER COVER Installation

8. INSTALL RADIATOR GRILLE

(a) Install the radiator grille Installation.

9. FOG LIGHT AIMING (w/ Fog Light) Adjustments

10. PREPARATION FOR FOG LIGHT AIMING (w/ Fog Light) Adjustments

11. INSPECT FOG LIGHT AIMING (w/ Fog Light) Adjustments

12. ADJUST FOG LIGHT AIMING (w/ Fog Light) Adjustments
