System Description

WINDOW / GLASS: WINDSHIELD DEICER SYSTEM: SYSTEM DESCRIPTION

1. WINDSHIELD DEICER SYSTEM DESCRIPTION

The windshield deicer system thin heater wires are attached to the inside of the front window and deice the window surface quickly. The system automatically turns off after approximately 15 minutes.

HINT
For vehicles without the navigation system, the indicator light illuminates while the system is operating.

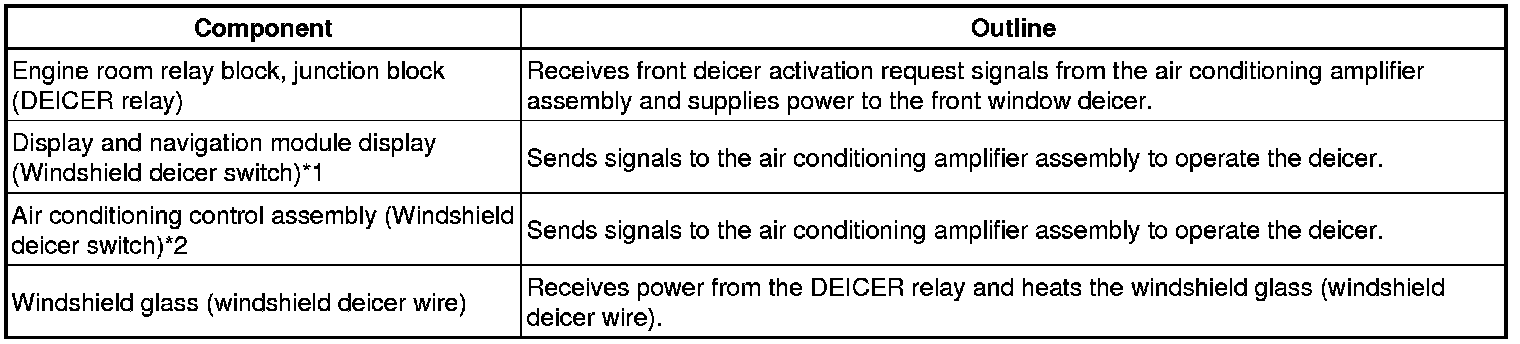

2. FUNCTION OF MAIN COMPONENT





* *1: w/ Display and Navigation Module Display

* *2: w/o Display and Navigation Module Display
