Valve Body: Testing and Inspection

A760F AUTOMATIC TRANSMISSION / TRANSAXLE: VALVE BODY ASSEMBLY: INSPECTION

1. INSPECT SHIFT SOLENOID VALVE SL1 AND SL2





(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration

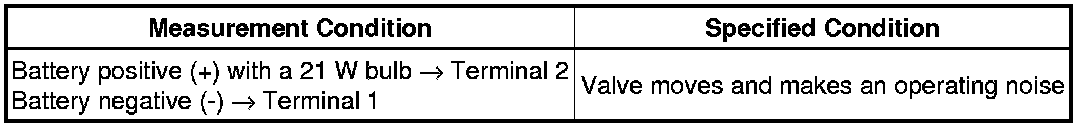

(b) Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.

OK:





If the result is not as specified, replace the solenoid valve.

2. INSPECT SHIFT SOLENOID VALVE S1 AND S3

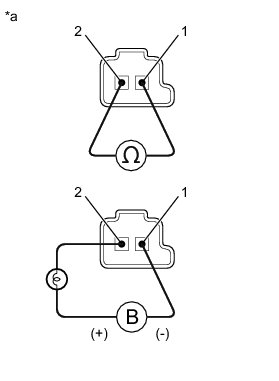

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration

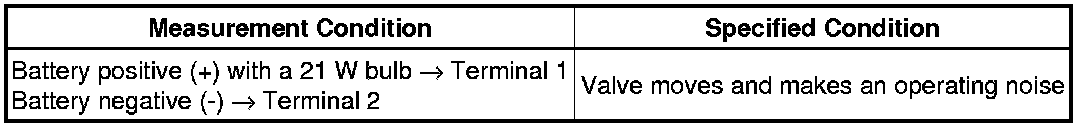

(b) Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.

OK:





If the result is not as specified, replace the solenoid valve.

3. INSPECT SHIFT SOLENOID VALVE S2

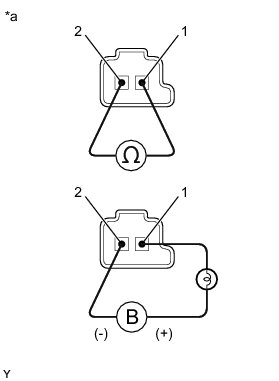

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration

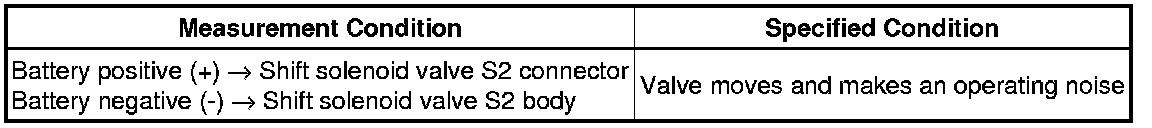

(b) Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.

OK:





If the result is not as specified, replace the solenoid valve.

4. INSPECT SHIFT SOLENOID VALVE S4





(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration

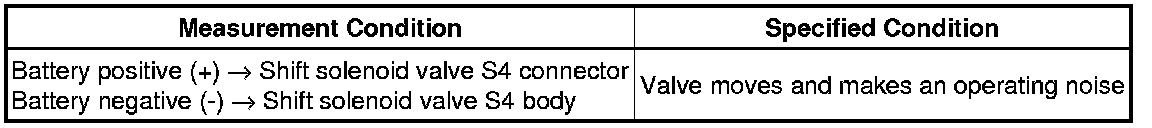

(b) Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.

OK:





If the result is not as specified, replace the solenoid valve.

5. INSPECT SHIFT SOLENOID VALVE SR





(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration

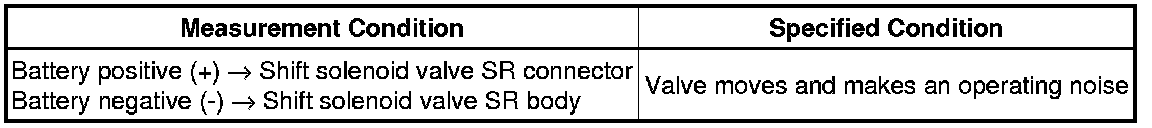

(b) Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.

OK:





If the result is not as specified, replace the solenoid valve.

6. INSPECT SHIFT SOLENOID VALVE SLT AND SLU





(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration

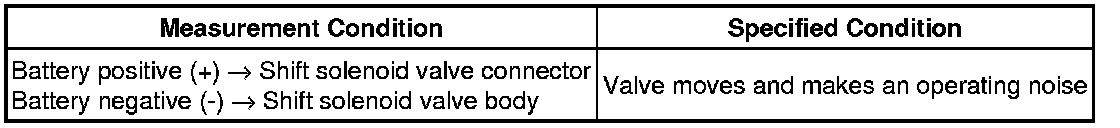

(b) Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.

OK:





If the result is not as specified, replace the solenoid valve.
