Reassembly

A760F AUTOMATIC TRANSMISSION / TRANSAXLE: VALVE BODY ASSEMBLY: REASSEMBLY

1. INSTALL SHIFT SOLENOID VALVE S3

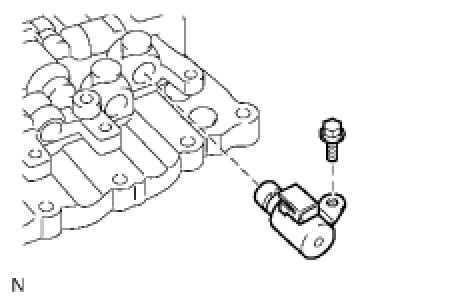

(a) Install the shift solenoid valve with the bolt.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

2. INSTALL SHIFT SOLENOID VALVE S2





3. INSTALL SHIFT SOLENOID VALVE S4

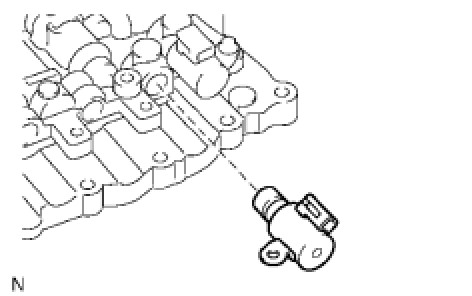

(a) Install the shift solenoid valve with the bolt.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

4. INSTALL SHIFT SOLENOID VALVE S1

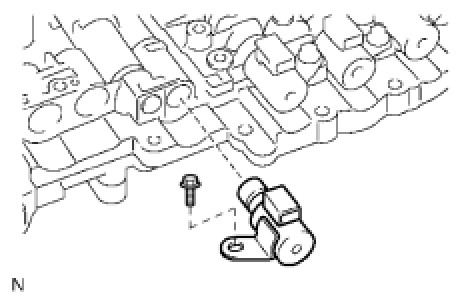

(a) Install the shift solenoid valve and valve body wire harness clamp with the bolt.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

5. INSTALL SHIFT SOLENOID VALVE SR

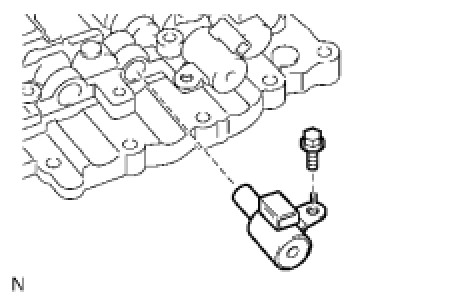

(a) Install the shift solenoid valve with the bolt.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

6. INSTALL SHIFT SOLENOID VALVE SL1





7. INSTALL SHIFT SOLENOID VALVE SLT

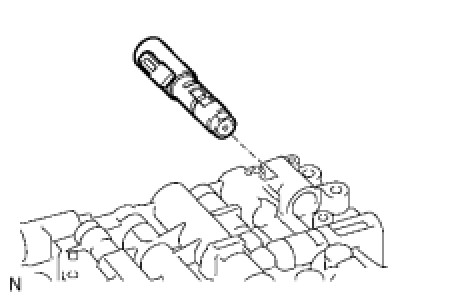

(a) Install the shift solenoid valve.

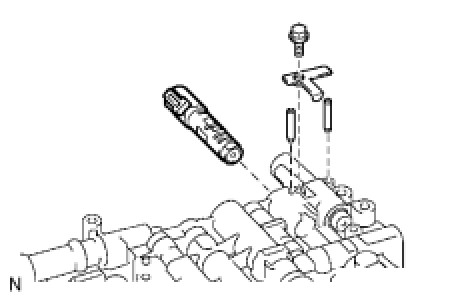

(b) Install the 2 straight pins and lock plate with the bolt.

Torque : 6.4 Nm (65 kgf-cm, 57 in-lbf)

8. INSTALL SHIFT SOLENOID VALVE SLU





9. INSTALL SHIFT SOLENOID VALVE SL2





(a) Install the shift solenoid valve.

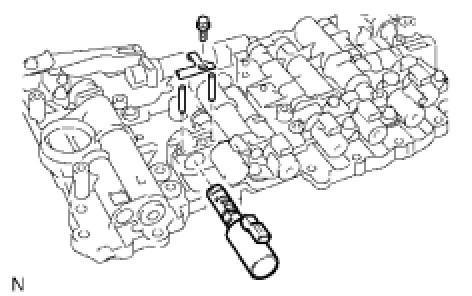

(b) Install the 2 straight pins and lock plate with the bolt.

Torque : 6.4 Nm (65 kgf-cm, 57 in-lbf)
