A760F AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSMISSION UNIT: REASSEMBLY - Continued

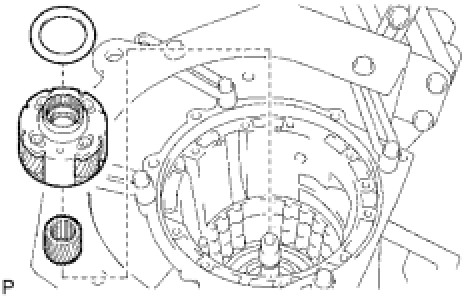

1. BEARING POSITION

(a) Check the bearing positions.

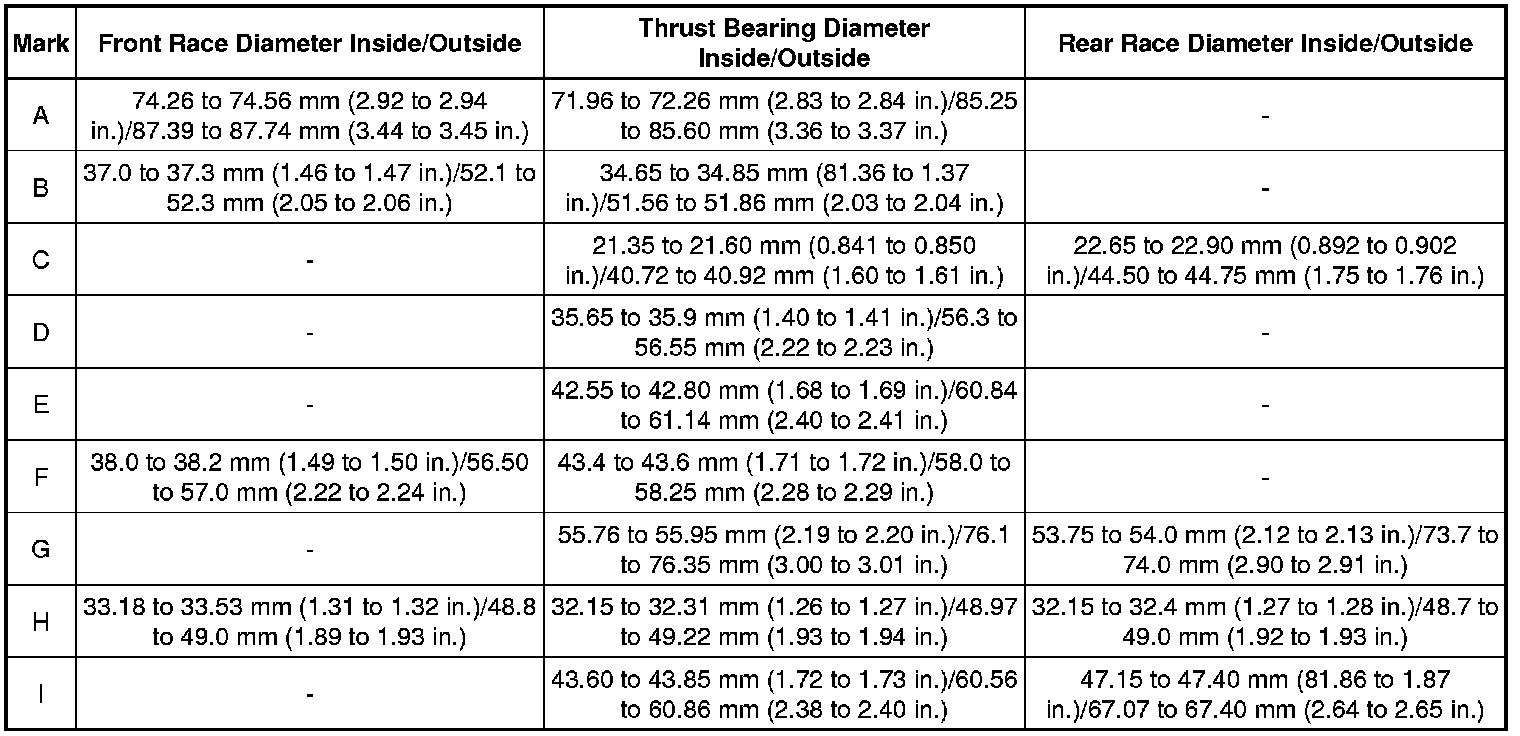

Bearing Diameter:

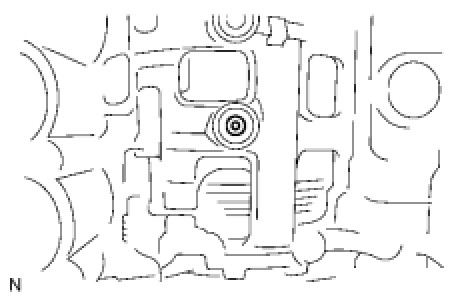

2. ASSEMBLE NO. 4 BRAKE PISTON AND BRAKE REACTION SLEEVE

(a) Coat 2 new O-rings with ATF and install them to the brake reaction sleeve.

(b) Coat 2 new O-rings with ATF and install them to the No. 4 brake piston.

Text in Illustration

(a) Install the No. 4 brake piston with brake reaction sleeve to the transmission case

NOTICE:
* Do not damage the O-rings.
* Make sure the No. 4 brake piston is underneath the brake reaction sleeve.

4. INSTALL 1ST AND REVERSE BRAKE PISTON

(a) Coat a new O-ring with ATF.

(b) Install the O-ring to the 1st and reverse brake piston.

(c) With the spring seat of the piston facing upwards (the front side), install the piston to the transmission case.

NOTICE:
Be careful not to damage the O-ring.

5. INSTALL 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY

(a) Place the brake return spring onto the 1st and reverse brake piston.

(b) Place SST on the spring retainer and compress the return spring.

SST : 09350-30020

09350-07050

(c) Using SST, install the snap ring.

SST : 09350-30020

09350-07070

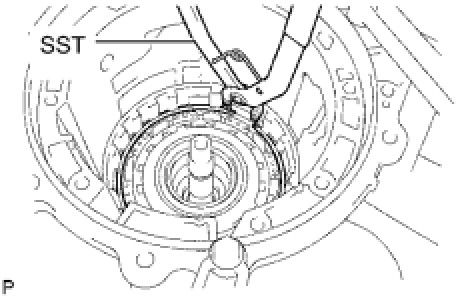

Text in Illustration

NOTICE:
Make sure the end gap of the snap ring is not aligned with the spring retainer claw.

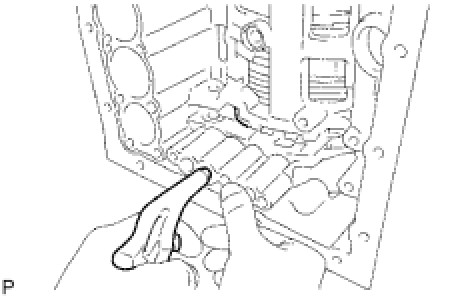

(d) Make sure the No. 4 brake piston moves smoothly when applying and releasing compressed air into and from the transmission case.

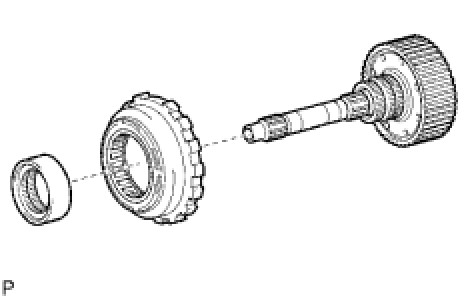

6. INSTALL REAR PLANETARY GEAR ASSEMBLY

(a) Install the thrust bearing race.

Bearing Race Diameter:

(b) Install the thrust needle roller bearing to the rear planetary gear.

Bearing Diameter:

7. SELECT NO. 4 BRAKE FLANGE

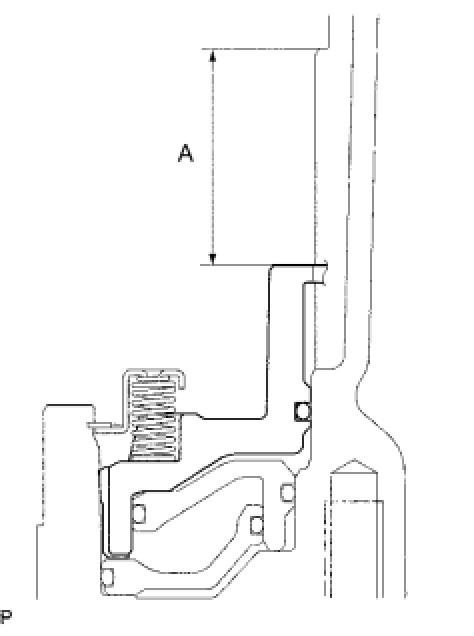

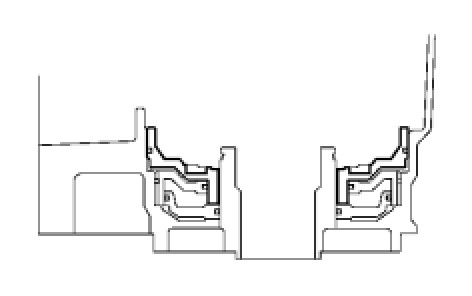

(a) Using a vernier caliper, measure distance A (from the top surface of the 1st and reverse brake piston to the step in the transmission case) in the illustration.

NOTICE:
The 1st and reverse brake piston must be installed securely to the end face of the transmission case.

HINT
Distance A = 36.35 to 37.09 mm (1.43 to 1.46 in.)

(b) Assemble the flange, 8 discs and 7 plates, and then, using a vernier caliper, measure distance B in the illustration at both ends across the diameter and calculate the average.

Text in Illustration

HINT
Distance B = 33.94 to 35.04 mm (1.34 to 1.38 in.)

(c) Select a No. 4 brake flange so that the value of measured distance A minus distance B minus thickness H is 1.35 to 1.65 mm (0.0531 to 0.0650 in.).

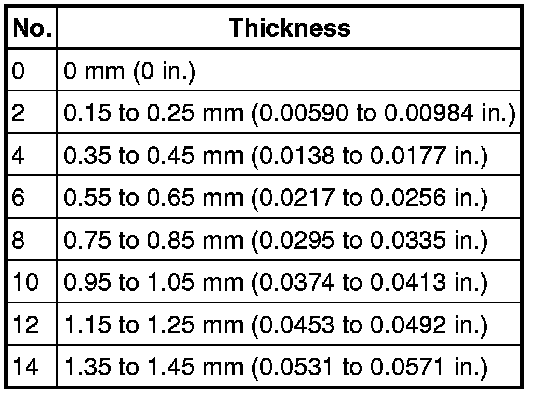

Thickness H:

8. INSTALL NO. 4 BRAKE DISC

(a) Install the flange, 8 discs, 7 plates and selected flange.

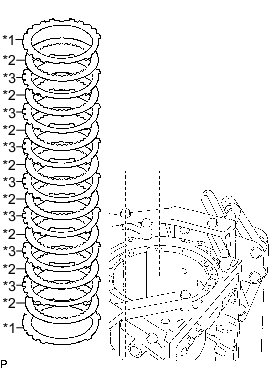

Install in order:

*1 - *2 - *3 - *2 - *3 - *2 - *3 - *2 - *3 - *2 - *3 - *2 - *3 - *2 - *3 - *2 - *1

Text in Illustration

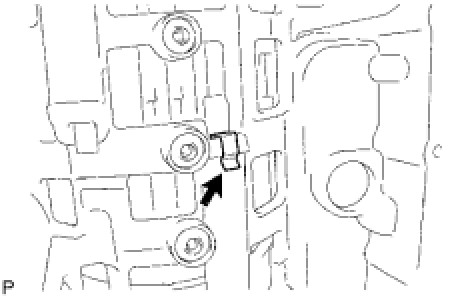

9. INSTALL BRAKE PLATE STOPPER SPRING

10. INSTALL REAR PLANETARY RING GEAR FLANGE SUB-ASSEMBLY

(a) Install the rear planetary ring gear flange to the rear planetary ring gear.

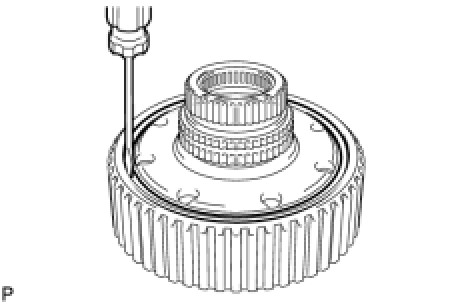

(b) Using a screwdriver, install the snap ring.

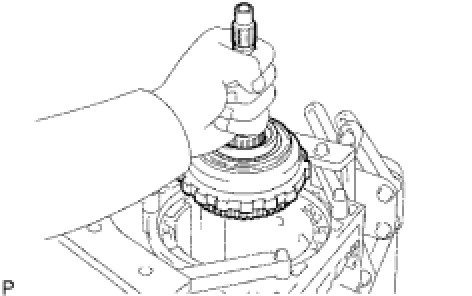

(c) Install the thrust bearing race, thrust needle roller bearing, thrust bearing race and planetary ring gear flange together with the rear planetary ring gear to the intermediate shaft.

Bearing and Race Diameter:

11. INSTALL NO. 3 1-WAY CLUTCH ASSEMBLY

(a) Install the 1-way clutch and 1-way clutch inner race to the intermediate shaft.

12. INSTALL INTERMEDIATE SHAFT

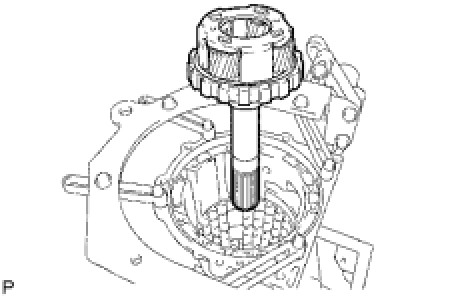

(a) Install the intermediate shaft with No. 3 1-way clutch assembly to the case.

(b) Using SST, install the snap ring.

SST : 09350-30020

09350-07060

13. INSTALL CENTER PLANETARY GEAR ASSEMBLY

(a) Install the planetary sun gear and center planetary gear to the case.

(b) Coat the thrust bearing race with petroleum jelly and install it to the center planetary gear.

Race Diameter:

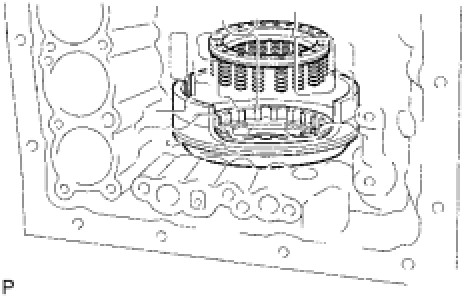

14. INSTALL NO. 2 BRAKE PISTON

(a) Coat 2 new O-rings with ATF and install them to the brake piston.

Text in Illustration

(b) Press the brake piston into the brake cylinder with both hands.

NOTICE:
Be careful not to damage the O-rings.

(c) Install the No. 2 brake cylinder with No. 2 brake piston to the case.

HINT
Install the No. 2 brake cylinder so that the projection faces the top of the transmission case.

(d) Check that the oil pressure apply hole of the No. 2 brake cylinder aligns with the oil pressure apply hole of the transmission case.

15. SELECT NO. 2 BRAKE FLANGE

(a) Install the No. 2 brake piston return spring and flange to the No. 2 brake piston.

(b) Place SST on the brake flange and compress the brake return spring.

SST : 09351-40010

09351-04010

09351-04020

09351-04040

09351-04050

(c) Using a screwdriver, install the snap ring to the transmission case.

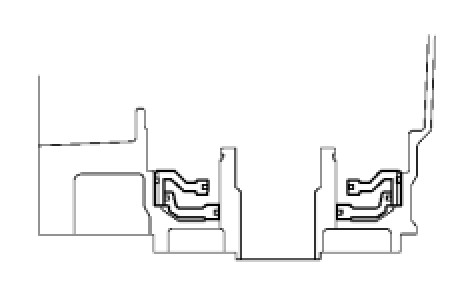

(d) Measure distance A (from the top surface of the snap ring to the surface of the brake piston return spring retainer) in the illustration.

Text in Illustration

HINT
Standard distance A: 20.94 to 22.12 mm (0.824 to 0.871 in.)

(e) Remove the snap ring, flange and No. 2 brake piston return spring.

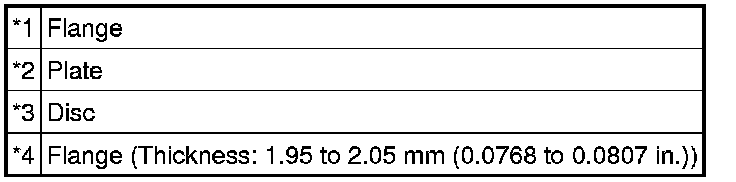

(f) Assemble the flange, 4 discs, 3 plates and flange (thickness: 1.95 to 2.05 mm (0.0768 to 0.0807 in.)) as shown in the illustration, and then, using a vernier caliper, measure distance B in the illustration at both ends across the diameter and calculate the average.

Text in Illustration

HINT
Standard distance B: 18.52 to 19.15 mm (0.729 to 0.754 in.)

(g) Select a No. 2 brake flange so that the value of measured distance A minus distance B is 0.6 to 0.9 mm (0.0236 to 0.0354 in.).

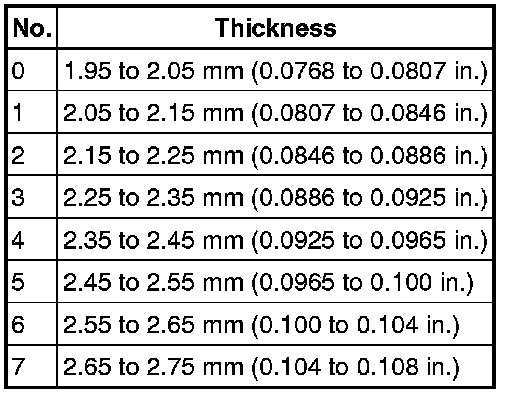

Flange Thickness:
